Choose PPPoE (Point to
Point Protocol over Ethernet)
if your ISP uses a PPPoE
connection. Your ISP will
provide you with a username
and password. This option is
typically used for
services.
PPPoE
Password
Retype Password
Service Name
IP Address
MAC Address
Primary DNS
Address

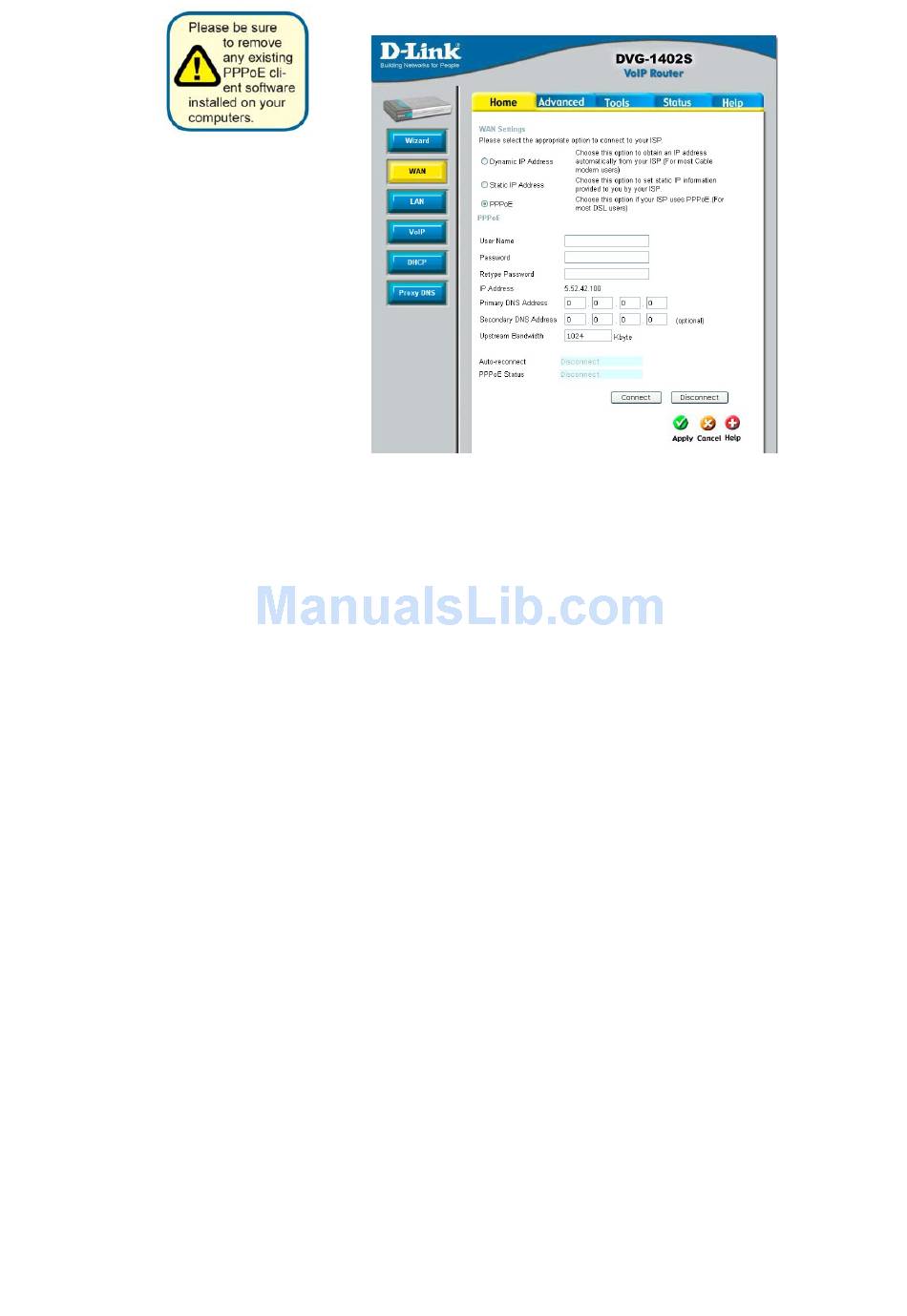

Home > WAN > PPPoE
DSL
Choose this option if your ISP uses PPPoE. (Most DSL users
will select this option.)
Enter The PPPoE user name provided to you by your ISP.
Retype the password entered in the previous field.
Enter the Service Name provided by your ISP (optional).
This option is only available for Static PPPoE. Enter the static
IP Address for the PPPoE connection.
The default MAC Address is set to the WAN's physical interface
MAC address on the Broadband Router. It is not recommended
that you change the default MAC address unless required by
your ISP.
Input the primary DNS (Domain Name Server) IP address
