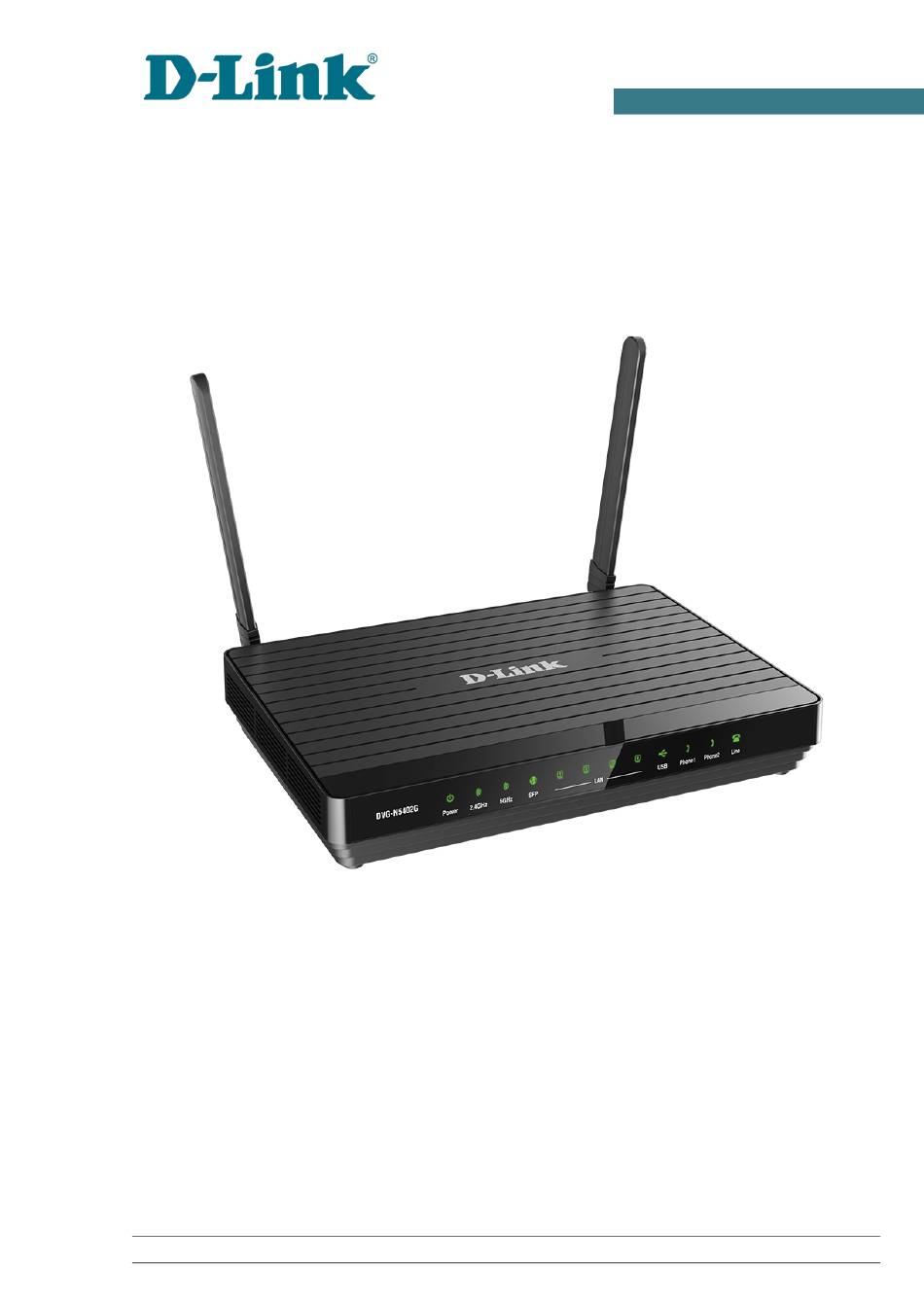

Page 1 User Manual DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and USB Port May 2019...
Page 2: Table Of Contents
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and USB Port User Manual Contents Chapter 1. Introduction..........5 Contents and Audience............5 Conventions..............5 Document Structure............5 Chapter 2. Overview..........6 General Information............6 Specifications..............8...
Page 3 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and USB Port User Manual Connections Setup............70 WAN..............70 Creating Dynamic IPv4 or Static IPv4 WAN Connection....72 Creating Dynamic IPv6 or Static IPv6 WAN Connection....77 Creating PPPoE WAN Connection..........81...
Page 4 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and USB Port User Manual VoIP..............190 Basic Settings............190 Advanced..............194 SIP Lines...............199 Fax Settings............203 Audio Settings............205 Call Routing............209 Call Feature Codes............211 Call Logging............214...
Page 5: Chapter 1. Introduction
Chapter 2 gives an overview of the router's hardware and software features, describes its appearance and the package contents. Chapter 3 explains how to install the router DVG-N5402G/ACF and configure a PC in order to access its web-based interface. Chapter 4 describes all pages of the web-based interface in detail.
Page 6: Chapter 2. Overview
Built-in Yandex.DNS service protects against malicious and fraudulent web sites and helps to block access to adult content on children's devices. 1 Not included in the delivery package. D-Link does not guarantee compatibility with all USB modems. For the list of supported USB modems, see the Specifications section, page 8.
Page 7 USB Port User Manual You can configure the settings of the wireless router DVG-N5402G/ACF via the user-friendly web- based interface (the interface is available in two languages – in Russian and in English). The configuration wizard allows you to quickly switch DVG-N5402G/ACF to one of the following modes: router (for connection to a wired or wireless ISP), access point, repeater, or client, and then configure all needed setting for operation in the selected mode in several simple steps.
Page 8: Specifications
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Overview USB Port User Manual Specifications Hardware Processor · RTL9607P (600MHz) · 128MB, DDR3 SDRAM Flash · 16MB, SPI Interfaces ·...
Page 9 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Overview USB Port User Manual Software · Network functions Support of IEEE 802.1X for Internet connection · DHCP server/relay ·...
Page 10 Local and remote access to settings through TELNET/WEB (HTTP/HTTPS) · Bilingual web-based interface for configuration and management (Russian/English) · Support of D-Link Assistant application for Android and iPhone smartphones · Notification on connection problems and auto redirect to settings · Firmware update via web-based interface ·...
Page 11 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Overview USB Port User Manual Wireless Module Parameters · Transmitter output power 802.11a (typical at room temperature 25 °C)
Page 12 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Overview USB Port User Manual Wireless Module Parameters · 802.11n (typical at PER < 10% at room temperature 25 °C) 2.4GHz, HT20...
Page 13 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Overview USB Port User Manual Wireless Module Parameters · Modulation schemes 802.11a: BPSK, QPSK, 16QAM, 64QAM with OFDM ·...
Page 14 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Overview USB Port User Manual Phone · Voice Features Codecs: G.711 a/μ-law, G.729A, G.726, G.722, G.723.1, GSMFR, ILBC, SPEEX ·...
Page 15 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Overview USB Port User Manual Supported USB modems · Alcatel X500 · D-Link DWM-152C1 · D-Link DWM-156A6 · D-Link DWM-156A7 ·...
Page 16: Product Appearance
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Overview USB Port User Manual Product Appearance Front and Right Side Panels Figure 1. Front panel view. Mode Description The router is powered on.
Page 17 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Overview USB Port User Manual Mode Description The receiver is on-hook, the phone is registered on the Solid green SIP server.
Page 18: Back Panel
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Overview USB Port User Manual Back Panel Figure 2. Back panel view. Port Description DC 12V Power connector. ON/OFF A button to turn the router on/off.
Page 19 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Overview USB Port User Manual Port Description LINE A PSTN port to connect to the telephone network. The device is also equipped with two external non-detachable Wi-Fi antennas.
Page 20: Delivery Package
• “Quick Installation Guide” (brochure). • The “User Manual” and “Quick Installation Guide” documents are available on D-Link website (see www.dlink.ru). Using a power supply with a different voltage rating than the one included will cause damage and void the warranty for this product.
Page 21: Chapter 3. Installation And Connection
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Installation and Connection USB Port User Manual CHAPTER 3. INSTALLATION AND CONNECTION Before You Begin Please, read this manual prior to installing the device. Make sure that you have all the necessary information and equipment.
Page 22 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Installation and Connection USB Port User Manual USB Modem To connect to an LTE or 3G network, you should use a USB modem. Connect it to the USB port of...
Page 23: Connecting To Pc
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Installation and Connection USB Port User Manual Connecting to PC PC with Ethernet Adapter 1. Connect an Ethernet cable between any of LAN ports located on the back panel of the router and the Ethernet port of your PC.
Page 24: Obtaining Ip Address Automatically (Os Windows 7)
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Installation and Connection USB Port User Manual Obtaining IP Address Automatically (OS Windows 7) 1. Click the Start button and proceed to the Control Panel window.
Page 25 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Installation and Connection USB Port User Manual 3. In the menu located on the left part of the window, select the Change adapter settings line.
Page 26 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Installation and Connection USB Port User Manual 4. In the opened window, right-click the relevant Local Area Connection icon and select the Properties line in the menu displayed.
Page 27 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Installation and Connection USB Port User Manual 5. In the Local Area Connection Properties window, on the Networking tab, select the Internet Protocol Version 4 (TCP/IPv4) line.
Page 28 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Installation and Connection USB Port User Manual 6. Make sure that the Obtain an IP address automatically and Obtain DNS server address automatically choices of the radio buttons are selected.
Page 29: Pc With Wi-Fi Adapter
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Installation and Connection USB Port User Manual PC with Wi-Fi Adapter 1. To connect via USB modem: connect your USB modem to the USB port located on the back panel of the router.
Page 30: Obtaining Ip Address Automatically And Connecting To Wireless Network (Os Windows 7)
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Installation and Connection USB Port User Manual Obtaining Address Automatically Connecting to Wireless Network (OS Windows 7) 1. Click the Start button and proceed to the Control Panel window.
Page 31 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Installation and Connection USB Port User Manual 6. Make sure that the Obtain an IP address automatically and Obtain DNS server address automatically choices of the radio buttons are selected.
Page 32 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Installation and Connection USB Port User Manual 9. In the opened Wireless Network Connection window, select the wireless network DVG-N5402G (for operating in the 2.4GHz band) or DVG-N5402G-5G (for operating in...
Page 33: Connecting To Web-Based Interface
(create a WAN connection, change the parameters of the wireless network, specify the settings of the firewall, etc.). For security reasons, DVG-N5402G/ACF with default settings cannot connect to the Internet. To get started, please set your own password used to access the web-based interface and, if needed, configure other settings recommended by your ISP.
Page 34 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Installation and Connection USB Port User Manual If you configured the device previously, after access to the web-based interface the login page opens.
Page 35: Web-Based Interface Structure
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Installation and Connection USB Port User Manual Web-based Interface Structure Summary Page On the Summary page, detailed information on the device state is displayed.
Page 36 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Installation and Connection USB Port User Manual The Device Information section displays the model and hardware version of the router, the firmware version, and other data.
Page 37: Home Page
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Installation and Connection USB Port User Manual Home Page The Home page displays links to the most frequently used pages with device's settings.
Page 38: Menu Sections
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Installation and Connection USB Port User Manual Menu Sections To configure the router use the menu in the left part of the page.
Page 39: Notifications
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Installation and Connection USB Port User Manual Notifications The router's web-based interface displays notifications in the top right part of the page.
Page 40: Chapter 4. Configuring Via Web-Based Interface
If you perform initial configuration of the router via Wi-Fi connection, please make sure that you are connected to the wireless network of DVG-N5402G/ACF (see the WLAN name (SSID) on the barcode label on the bottom panel of the device) and click the NEXT button.
Page 41 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual On the opened page, click YES in order to leave the current language of the web-based interface or click NO to select the other language.
Page 42: Selecting Operation Mode
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Selecting Operation Mode In order to connect your device to a wired ISP, on the Device mode page, from the Connection method list, select the Wired connection value.
Page 43 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual In order to connect your device to a wireless ISP (WISP), on the Device mode page, from the Connection method list, select the Wi-Fi value.
Page 44 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual In order to connect your device to a wireless router for extending the range of the existing wireless network, on the Device mode page, from the Connection method list, select the Wi-Fi value.
Page 45: Creating 3G/Lte Wan Connection
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Creating 3G/LTE WAN Connection This configuration step is available for the 3G/LTE modem mode.
Page 46: Changing Lan Ipv4 Address
If you want to manually assign the LAN IPv4 address for DVG-N5402G/ACF, do not select the Automatic obtainment of IPv4 address checkbox and fill in the IP address, Subnet mask, Hostname fields and, if needed, the Gateway IP address field.
Page 47: Wi-Fi Client
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Wi-Fi Client This configuration step is available for the WISP Repeater, Repeater, and Client modes.
Page 48 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Parameter Description Keys for WEP encryption. The router uses the key selected from the Encryption key Default key ID drop-down list.
Page 49: Configuring Wired Wan Connection
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Configuring Wired WAN Connection This configuration step is available for the Router and WISP Repeater modes.
Page 50: Static Ipv4 Connection
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Static IPv4 Connection Figure 33. The page for configuring Static IPv4 WAN connection.
Page 51: Static Ipv6 Connection
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Static IPv6 Connection Figure 34. The page for configuring Static IPv6 WAN connection.
Page 52: Pppoe, Ipv6 Pppoe, Pppoe Dual Stack, Pppoe + Dynamic Ip (Pppoe Dual Access) Connections
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual PPPoE, IPv6 PPPoE, PPPoE Dual Stack, PPPoE + Dynamic IP (PPPoE Dual...
Page 53: Pppoe + Static Ip (Pppoe Dual Access) Connection
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual PPPoE + Static IP (PPPoE Dual Access) Connection Figure 36. The page for configuring PPPoE + Static IP (PPPoE Dual Access) WAN connection.
Page 54: Pptp + Dynamic Ip Or L2Tp + Dynamic Ip Connection
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual PPTP + Dynamic IP or L2TP + Dynamic IP Connection Figure 37. The page for configuring PPTP + Dynamic IP WAN connection.
Page 55: Pptp + Static Ip Or L2Tp + Static Ip Connection
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual PPTP + Static IP or L2TP + Static IP Connection Figure 38. The page for configuring PPTP + Static IP WAN connection.
Page 56: Configuring Wireless Network
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Configuring Wireless Network This configuration step is available for the 3G/LTE modem, Router, Access point, WISP Repeater, and Repeater modes.
Page 57 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual 5. If you want to create an additional wireless network isolated from your LAN in the 2.4GHz band, select the Enable guest network checkbox (available for the 3G/LTE modem, Router, and WISP Repeater modes only).
Page 58: Configuring Lan Ports For Iptv/Voip
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Configuring LAN Ports for IPTV/VoIP This configuration step is available for the Router and WISP Repeater modes.
Page 59 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual On the VoIP page, select the Is an IP phone connected to the device checkbox.
Page 60: Changing Web-Based Interface Password
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Changing Web-based Interface Password On this page, you should change the default administrator password. To do this, enter a new password in the Admin password and Password confirmation fields.
Page 61 If problems of connection have not been solved, contact the technical support of your ISP (as a rule, the technical support phone is provided with the agreement) or the D-Link technical support (the phone number is displayed on the Summary page).
Page 62: Connection Of Multimedia Devices
The Multimedia Devices Connection Wizard helps to configure LAN ports or available wireless interfaces of the router for connecting additional devices, for example, an IPTV set-top box or IP phone. Contact your ISP to clarify if you need to configure DVG-N5402G/ACF in order to use these devices.
Page 63 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual If you need to configure a connection via VLAN, click the ADVANCED MODE button.
Page 64 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Then in the LAN section, from the Bridged with drop-down list of the element corresponding to the LAN port or wireless interface to which the additional device is connected, select the created connection.
Page 65: Statistics
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Statistics The pages of this section display data on the current state of the router: network statistics •...
Page 66: Dhcp
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual DHCP The Statistics / DHCP page displays the information on computers that have been identified by hostnames and MAC addresses and have got IP addresses from the DHCP server of the device, as well as the IP address expiration periods (the lease time).
Page 67: Routing Table
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Routing Table The Statistics / Routing Table page displays the information on routes. The table contains destination IP addresses, gateways, subnet masks, and other data.
Page 68: Clients And Session
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Clients and Session On the Statistics / Clients and Session page, you can view the list of devices connected to the local network of the router and information on current sessions of each device.
Page 69: Multicast Groups
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Multicast Groups The Statistics / Multicast Groups page displays addresses of active multicast groups (including IPTV channels and groups for transferring service information) to which the device is subscribed, and the interface through which the device is subscribed.
Page 70: Connections Setup
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Connections Setup In this menu you can configure basic parameters of the router's local area network and configure connection to the Internet (a WAN connection).
Page 71 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Figure 54. The Connections Setup / WAN page. The advanced mode.
Page 72: Creating Dynamic Ipv4 Or Static Ipv4 Wan Connection
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Creating Dynamic IPv4 or Static IPv4 WAN Connection On the connection creation page, go to the All Settings tab. Then select the relevant value from the Connection type drop-down list and specify the needed values.
Page 73 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Figure 56. The page for creating a new Static IPv4 connection. The Ethernet section.
Page 74 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Figure 57. The page for creating a new Static IPv4 connection. The Authorization via 802.1x Protocol section.
Page 75 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Figure 58. The page for creating a new Static IPv4 connection. The IPv4 section.
Page 76 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Figure 59. The page for creating a new Static IPv4 connection. The Miscellaneous section.
Page 77: Creating Dynamic Ipv6 Or Static Ipv6 Wan Connection
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Creating Dynamic IPv6 or Static IPv6 WAN Connection On the connection creation page, go to the All Settings tab. Then select the relevant value from the Connection type drop-down list and specify the needed values.
Page 78 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Figure 61. The page for creating a new Static IPv6 connection. The Ethernet section.
Page 79 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Figure 62. The page for creating a new Static IPv6 connection. The IPv6 section.
Page 80 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Parameter Description Primary IPv6 DNS Enter addresses of the primary and secondary IPv6 DNS servers in server/Secondary IPv6 the relevant fields.
Page 81: Creating Pppoe Wan Connection
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Creating PPPoE WAN Connection On the connection creation page, go to the All Settings tab. Then select the relevant value from the Connection type drop-down list and specify the needed values.
Page 82 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Figure 65. The page for creating a new PPPoE connection. The Ethernet section.
Page 83 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Figure 66. The page for creating a new PPPoE connection. The PPP section.
Page 84 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Parameter Description Move the switch to the right if you want the router to...
Page 85 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Figure 67. The page for creating a new PPPoE connection. The Miscellaneous section.
Page 86: Creating Pptp Or L2Tp Wan Connection
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Creating PPTP or L2TP WAN Connection On the connection creation page, go to the All Settings tab. Then select the relevant value from the Connection type drop-down list and specify the needed values.
Page 87 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Figure 69. The page for creating a new PPTP connection. The PPP section.
Page 88 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Parameter Description Select a method of MPPE encryption. No encryption: MPPE encryption is not applied.
Page 89 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Figure 70. The page for creating a new PPTP connection. The Miscellaneous section.
Page 90: Creating Pppoe Ipv6 Or Pppoe Dual Stack Wan Connection
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Creating PPPoE IPv6 or PPPoE Dual Stack WAN Connection On the connection creation page, go to the All Settings tab. Then select the relevant value from the Connection type drop-down list and specify the needed values.
Page 91 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Figure 72. The page for creating a new PPPoE IPv6 connection. The Ethernet section.
Page 92 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Figure 73. The page for creating a new PPPoE IPv6 connection. The PPP section.
Page 93 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Parameter Description Move the switch to the right if you want the router to keep you...
Page 94 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Figure 74. The page for creating a new PPPoE Pv6 connection. The IP section.
Page 95 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Figure 75. The page for creating a new PPPoE IPv6 connection. The Miscellaneous section.
Page 96: Creating 3G Wan Connection
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Creating 3G WAN Connection If the PIN code check is enabled for the SIM card inserted into your USB modem, then prior to...
Page 97 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Figure 77. The page for creating a new 3G connection. The USB Modem section.
Page 98 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Parameter Description Move the switch to the right if your operator does not require Without authorization authorization.
Page 99 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Figure 79. The page for creating a new 3G connection. The Miscellaneous section.
Page 100: Creating Lte Wan Connection
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Creating LTE WAN Connection If the PIN code check is enabled for the SIM card inserted into your USB modem, then prior to...
Page 101 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Figure 81. The page for creating a new LTE connection. The USB Modem section.
Page 102 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Figure 82. The page for creating a new LTE connection. The IPv4 section.
Page 103 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Figure 83. The page for creating a new LTE connection. The Miscellaneous section.
Page 104: Lan
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual To configure the router's local interface, go to the Connections Setup / LAN page.
Page 105 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Figure 85. Configuring the local interface. The IPv4 tab. The Dynamic IP Addresses section.
Page 106 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Parameter Description The IP address of the external DHCP server which assigns IP addresses to the router's clients.
Page 107 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual After specifying the needed parameters, click the APPLY button. To edit the parameters of an option, left-click the relevant line in the table. In the opened window, change the needed parameters and click the APPLY button.
Page 108: Ipv6
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual IPv6 Go to the IPv6 tab to change IPv6 address of the router and configure IPv6 addresses assignment settings.
Page 109 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Figure 90. Configuring the local interface. The IPv6 tab. The Dynamic IPv6 Addresses section.
Page 110 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual In the Static IP Addresses section, you can specify MAC address and IPv6 address pairs (set a fixed IPv6 address in the local area network for a device with a certain MAC address).
Page 111: Wan Reservation
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual WAN Reservation On the Connections Setup / WAN Reservation page, you can enable the WAN backup function, which provides you with uninterrupted access to the Internet.
Page 112 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Parameter Description A number of requests that will be sent in order to analyze the status...
Page 113: Wi-Fi
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Wi-Fi In this menu you can specify all needed settings for your wireless network.
Page 114 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual In the General Settings section, the following parameters are available: Parameter Description To enable Wi-Fi connection, move the switch to the right.
Page 115 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual To edit the settings of the basic wireless network, in the Wi-Fi Network section, change the needed parameters and click the APPLY button.
Page 116 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Parameter Description Wi-Fi Network A name for the wireless network. The name can consist of digits and Network name (SSID) Latin characters.
Page 117 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual In the Security Settings section, you can change security settings of the wireless network.
Page 118 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual The WPA , WPA2 , and WPA/WPA2 mixed authentication types require a RADIUS server.
Page 119 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual When the WPA-PSK, WPA2-PSK, or WPA-PSK/WPA2-PSK mixed value is selected, the following fields are displayed on the page: Figure 97.
Page 120 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual When the WPA, WPA2, or WPA/WPA2 mixed value is selected, the following settings are displayed on the page: Figure 98.
Page 121: Client Management
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Client Management On the Wi-Fi / Client Management page, you can view the list of wireless clients connected to the router.
Page 122: Wps
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual On the Wi-Fi / WPS page, you can enable the function for configuration of the WLAN and select a method for connection to the WLAN.
Page 123 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual To activate the WPS function via the web-based interface, click the ENABLE WPS button.
Page 124: Using Wps Function Via Web-Based Interface
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Using WPS Function via Web-based Interface To connect to the basic wireless network via the PIN method of the WPS function, follow the next steps: 1.
Page 125: Using Wps Function Without Web-Based Interface
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Using WPS Function without Web-based Interface You can use the WPS function without accessing the web-based interface of the router. To do this, you need to configure the following router's settings: 1.
Page 126: Wmm
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual On the Wi-Fi / WMM page, you can enable the Wi-Fi Multimedia function.
Page 127 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual To edit the parameters of an Access Category, left-click the relevant line. In the opened window, change the needed parameters.
Page 128 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Parameter Description Acknowledgment. Answering response requests while transmitting. Displayed only in the Access Point section.
Page 129: Client
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Client On the Wi-Fi / Client page, you can configure the router as a client to connect to a wireless access point or to a WISP.
Page 130 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual In the Wireless Networks section, the list of available wireless networks is displayed. To view the latest data on available wireless networks, click the UPDATE LIST button.
Page 131 An encryption method: TKIP, AES, or TKIP+AES. When you have configured the parameters, click the APPLY button. When connecting to a wireless access point, the wireless channel of DVG-N5402G/ACF will switch to the channel of the access point to which you have connected.
Page 132: Additional
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Additional On page of the Wi-Fi / Additional section, you can define additional parameters for the WLAN of the router.
Page 133 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual The following fields are available on the page: Parameter Description The channel bandwidth for 802.11n standard in the 2.4GHz band (the 2.4 GHz tab).
Page 134 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Parameter Description Available on the 2.4 GHz tab. The 802.11b and 802.11g protection function is used to minimize collisions between devices of your wireless network.
Page 135: Mac Filter
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual MAC Filter On the Wi-Fi / MAC Filter page, you can define a set of MAC addresses of devices which will be allowed to access the WLAN, or define MAC addresses of devices which will not be allowed to access the WLAN.
Page 136 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Figure 106. The window for adding a rule for the MAC filter.
Page 137 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual To open the basic or additional wireless network for the devices which MAC addresses are specified on this page and to close the wireless network for all other devices, in the section corresponding to the band (2.4 GHz or 5 GHz), left-click the line of the wireless network.
Page 138: Roaming
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Roaming On the Wi-Fi / Roaming page, you can enable the function of smart adjustment of Wi-Fi clients.
Page 139 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Parameter Description Move the switch to the right in order to use multicast traffic for service data exchange between access points (routers).
Page 140: Print Server
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Print Server On the Print Server page, you can configure the router as a print server. Being configured in this way, the router will allow your LAN users to share the printer connected to the USB port of the router.
Page 141: Usb Storage
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual USB Storage This menu is designed to operate USB storages. Here you can do the following: view data on the connected USB storage •...
Page 142: Usb Users
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual USB Users On the USB Storage / USB Users page, you can create user accounts to provide access to data on the USB storage connected to the router.
Page 143: Samba
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Samba On the USB Storage / Samba page, you can enable the built-in Samba server of the router to provide access to the USB storage for users of your LAN.
Page 144 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual To allow access only to a certain folder of the USB storage, click the ADD ( ) button in the Directories section.
Page 145: Ftp
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual On the USB Storage / FTP page, you can enable the built-in FTP server of the router to provide access to the USB storage for users of your LAN.
Page 146: Filebrowser
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Filebrowser On the USB Storage / Filebrowser page, you can view the content of your USB storage connected to the router and remove separate folders and files from the USB storage.
Page 147: Dlna
USB storage, or leave the value specified by default (900). In the DLNA server name field, specify a name of the DLNA server which will be displayed for users of your LAN or leave the value specified by default (D-Link DLNA Server). Use digits and/or Latin characters.
Page 148 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Figure 117. Specifying a media folder. In the opened window, locate a folder containing files. To do this, click the Search icon ( ) in the Path field.
Page 149: Torrent Client
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Torrent Client On the USB Storage / Torrent Client page, you can configure all needed settings for the built-in Transmission client.
Page 150 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Parameter Description Move the switch to the right if you want to limit the number of simultaneous downloads.
Page 151 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Figure 119. The web-based interface of the Transmission torrent client. Using the web-based interface of the built-in Transmission torrent client you can manage the process of downloading files to the USB storage connected to the router.
Page 152 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Parameter Description Click the button to restart all downloads. If you limited the maximum number of simultaneous downloads, the Transmission client starts processing of the specified number of torrent files;...
Page 153: Usb Modem
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual USB Modem This menu is designed to operate USB modems. If the PIN code check for the SIM card inserted into your USB modem is not disabled, the relevant notification will be displayed in the top right corner of the page.
Page 154: Basic Settings
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Basic Settings On the USB Modem / Basic Settings page, you can view data on the USB modem connected to the router and enable/disable the function for automatic creation of 3G/LTE WAN connection upon plugging a USB modem into the router.
Page 155: Pin
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Parameter Description The signal level at the input of the modem's receiver. The zero...
Page 156 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual To enable the PIN code check, in the PIN Code Request section, enter the PIN code used before disabling the check in the PIN code field and click the ENABLE button (the button is displayed if the PIN code check is disabled).
Page 157: Advanced
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Advanced In this menu you can configure advanced settings of the router: create groups of ports for VLANs •...
Page 158: Vlan
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual VLAN On the Advanced / VLAN page, you can create and edit groups of ports for virtual networks (VLANs).
Page 159 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual You can specify the following parameters: Parameter Description Name A name for the port for easier identification.
Page 160: Wan Remapping
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual WAN Remapping On the Advanced / WAN Remapping page, you can configure the router to connect to a private Ethernet line.
Page 161: Snmp
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual SNMP On the Advanced / SNMP page, you can enable and configure the SNMP agent of the router.
Page 162 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual In order to disable the SNMP agent, in the Configuration section, move the Enable SNMP switch to the left and click the APPLY button.
Page 163 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Click the SAVE button. To edit a user, select the relevant line in the table. In the opened window, change the needed values and click the SAVE button.
Page 164: Dns
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual On the Advanced / DNS page, you can add DNS servers to the system.
Page 165 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual If needed, you can add your own address resource record. To do this, click the ADD button ( ) in the Hosts section.
Page 166: Ddns
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual DDNS On the Advanced / DDNS page, you can define parameters of the DDNS service, which allows associating a domain name with dynamic IP addresses.
Page 167 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual To edit parameters of the existing DDNS service, select the relevant line in the table. On the opened page, change the needed parameters and click the SAVE button.
Page 168: Ports Settings
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Ports Settings On the Advanced / Ports Settings page, you can configure or disable autonegotiation of speed and duplex mode or manually configure speed and duplex mode for each Ethernet port of the router.
Page 169 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Figure 135. The window for changing the settings of the router's port.
Page 170 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Parameter Description Flow control Move the switch to the right to enable the flow control function for the port.
Page 171: Redirect
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Redirect On the Advanced / Redirect page, you can enable notifications on the reason of the Internet connection failure.
Page 172: Routing
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Routing On the Advanced / Routing page, you can specify static (fixed) routes.
Page 173 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual In the opened window, you can specify the following parameters: Parameter...
Page 174: Tr-069 Client
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual TR-069 Client On the Advanced / TR-069 Client page, you can configure the router for communication with a remote Auto Configuration Server (ACS).
Page 175 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Parameter Description Auto Configuration Server Settings URL address The URL address of the ACS provided by the ISP.
Page 176: Remote Access
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Remote Access On the Advanced / Remote Access page, you can configure access to the web-based interface of the router.
Page 177 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Parameter Description Open access from any Move the switch to the right to allow access to the router for any external host host.
Page 178: Upnp Igd
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual UPnP IGD On the Advanced / UPnP IGD page, you can enable the UPnP IGD protocol. The router uses the UPnP IGD protocol for automatic configuration of its parameters for network applications requiring an incoming connection to the router.
Page 179: Udpxy
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual UDPXY On the Advanced / UDPXY page, you can allow the router to use the built-in UDPXY application.
Page 180 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual To access the status page of the application, click the Status link.
Page 181: Igmp
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual IGMP On the Advanced / IGMP page, you can allow the router to use IGMP.
Page 182: Alg/Passthrough
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual ALG/Passthrough On the Advanced / ALG/Passthrough page, you can allow the router to use RTSP, enable the SIP ALG and PPPoE/PPTP/L2TP/IPsec pass through functions.
Page 183 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual The following elements are available on the page: Parameter Description Move the switch to the right to enable SIP. Such a setting allows using the SIP ALG function.
Page 184: Ipsec
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual IPsec On the Advanced / IPsec page, you can configure VPN tunnels based on IPsec protocol.
Page 185 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual To create a new tunnel, click the ADD button ( ) in the Tunnels section.
Page 186 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Parameter Description Pre-shared key A key for mutual authentication of the parties.
Page 187 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Parameter Description Maximum Segment Size of a TCP packet. This parameter influences the size of a TCP packet which will be sent from a remote host to the router.
Page 188 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Figure 149. The page for adding an IPsec tunnel. The First Phase / The Second Phase sections.
Page 189 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Parameter Description The lifetime of IPsec-SA keys in seconds. After the specified period it is required to renegotiate the keys.
Page 190: Voip
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual VoIP In this menu you can configure all parameters essential for VoIP via SIP and specify all needed settings for the phones connected to the router.
Page 191 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Parameter Description SIP Domain Move the switch to the right if your ISP requires to specify a domain Use domain to register name upon registration on the SIP proxy server.
Page 192 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Parameter Description If the switch is moved to the right, upon switching between the main...
Page 193 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Parameter Description A user password for this line. Click the Show icon (...
Page 194: Advanced
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Advanced On the VoIP / Advanced page, you can specify additional settings for VoIP via SIP.
Page 195 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Parameter Description Select a data type from the drop-down list. The list is displayed if the...
Page 196 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Parameter Description Registration Registration expire A time period (in seconds) after which the router changes the timeout registration status in case of no response from the SIP proxy server.
Page 197 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Parameter Description A public (“white”) IP address of an upper-level router which Public address exchanges service messages with the SIP proxy server.
Page 198 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Parameter Description Network Settings Differentiated Services Codepoint. RTP DSCP / SIP DSCP From the relevant drop-down list, select tags for voice and signaling traffic.
Page 199: Sip Lines
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual SIP Lines On the VoIP / SIP Lines page, you can specify incoming/outgoing call settings for the SIP lines.
Page 200 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Parameter Description A number for this line. SIP ID / Number The called party sees the specified value as the caller number.
Page 201 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Parameter Description Flash Settings The maximum and minimum value for flash time (the user hangs up...
Page 202 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Parameter Description A number dialed by the phone connected to this line after the receiver is lifted.
Page 203: Fax Settings
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Fax Settings On the VoIP / Fax Settings page, you can specify settings of data receipt/transfer for the fax machines connected to the FXS ports of the router.
Page 204 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Parameter Description Move the switch to the right to let the router support operation with Support SoftX3000 SoftX3000.
Page 205: Audio Settings
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Audio Settings On the VoIP / Audio settings page, you can configure audio parameters, volume and voice codecs.
Page 206 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Parameter Description Signal amplitude threshold to start comfort noise generation. Specify CNG Amp a value from 0 to 200.
Page 207 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual In the Codecs Settings section, you can configure work of voice codecs in use.
Page 208 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Parameter Description Quantity of milliseconds transmitted in one packet. Select the Period of packetization needed value from the drop-down list.
Page 209: Call Routing
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Call Routing On the VoIP / Call Routing page, you can fill in the phone book for a devices connected to the FXS ports of the router.
Page 210 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual In the Abbreviated Dial section, you can assign short numbers (as a rule, such numbers consist of two or three digits) to frequently used phone numbers.
Page 211: Call Feature Codes
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Call Feature Codes On the VoIP / Call Feature Codes page, you can allow changing some parameters of the router directly from the phone sets connected to the FXS ports of the router.
Page 212 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Also the following call feature codes are available on the page:...
Page 213 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual To change parameters of a code, select the relevant line in the table.
Page 214: Call Logging
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Call Logging On the VoIP / Call Logging page, you can configure the call log parameters, sending the log and conversation records to a USB storage connected to the router and view information on all calls.
Page 215 Password for switch is moved to the right. encrypting audio files Contact the D-Link technical support to get the utility for conversation records decryption (the e-mail address and the phone number are displayed on the Summary page). After specifying the needed parameters, click the APPLY button.
Page 216: Text Messages
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Text Messages On the VoIP / Text Messages page, you can send text messages to other VoIP devices and also view the message history.
Page 217 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual To sort the message history, in the Message History section, left-click the name of a column and...
Page 218: Security
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Security On the VoIP / Security page, you can configure filtering rules for incoming calls of the phones connected to the FXS ports of the router.
Page 219: Firewall
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Firewall In this menu you can configure the firewall of the router: add rules for IP filtering •...
Page 220 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Figure 168. The page for adding a rule for IP filtering.
Page 221 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Parameter Description An IP version to which the rule will be applied. Select the relevant IP version value from the drop-down list.
Page 222: Virtual Servers
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Virtual Servers On the Firewall / Virtual Servers page, you can create virtual servers for redirecting incoming Internet traffic to a specified IP address in the local area network.
Page 223 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Figure 170. The page for adding a virtual server. You can specify the following parameters:...
Page 224 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Parameter Description Public Network Settings Enter the IP address of the server from the external network.
Page 225: Dmz
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual A DMZ is a host or network segment located “between” internal (local) and external (global) networks.
Page 226: Mac Filter
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual MAC Filter On the Firewall / MAC Filter page, you can configure MAC-address-based filtering for computers of the router's LAN.
Page 227 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual In the opened window, you can specify the following parameters: Parameter Description Move the switch to the right to enable the rule.
Page 228: Url Filter
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual URL Filter On the Firewall / URL Filter page, you can specify restrictions on access to certain web sites.
Page 229: System
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual System In this menu you can do the following: change the password used to access the router's settings •...
Page 230: Configuration
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Configuration On the System / Configuration page, you can change the password for the administrator account...
Page 231 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual The following buttons are also available on the page: Control Description Click the button to restore the factory default settings.
Page 232: Firmware Update
To enable the automatic check for firmware updates, in the Remote Update section, move the Check for updates automatically switch to the right and click the APPLY SETTINGS button. By default, in the Remote server URL field, the D-Link update server address (fwupdate.dlink.ru) is specified.
Page 233: Local Update
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Local Update Attention! Do not turn off the router before the firmware update is completed. This may cause the device breakdown.
Page 234: Remote Update
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Remote Update Attention! Do not turn off the router before the firmware update is completed. This may cause the device breakdown.
Page 235: Log
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual On the System / Log page, you can set the system log options and configure sending the system log to a remote host and/or a USB storage connected to the router.
Page 236 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Parameter Description Logging Select a type of logging from the drop-down list.
Page 237 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual After specifying the needed parameters, click the APPLY button. To disable logging of the system events, move the Enable switch to the left and click the APPLY button.
Page 238: Ping
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Ping On the System / Ping page, you can check availability of a host from the local or global network via the Ping utility.
Page 239 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual After specifying the additional parameters, click the OK button. To run the check, click the START button. After a while, the results will be displayed on the page.
Page 240: Traceroute
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Traceroute On the System / Traceroute page, you can determine the route of data transfer to a host via the traceroute utility.
Page 241 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual To specify additional settings, click the MORE SETTINGS button. Figure 182. The System / Traceroute page. The additional settings window.
Page 242: Telnet
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Telnet On the System / Telnet page, you can enable or disable access to the device settings via TELNET from your LAN.
Page 243: System Time
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual System Time On the System / System Time page, you can manually set the time and date of the router or configure automatic synchronization of the system time with a time server on the Internet.
Page 244 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual To enable the router to automatically adjust to daylight saving time, move the Daylight saving time switch to the right.
Page 245: Yandex.dns
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Yandex.DNS This menu is designed to configure the Yandex.DNS service. Yandex.DNS is a web content filtering service which provides the DNS server, protects a computer against malicious web sites, and blocks access to adult web sites.
Page 246 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual When the service is enabled, the Default Mode section is displayed on the page. Select the needed...
Page 247: Devices And Rules
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual Devices and Rules On the Yandex.DNS / Devices and Rules page, you can specify a filtering mode for each device separately.
Page 248 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Configuring via Web-based Interface USB Port User Manual In the opened window, you can specify the following parameters: Parameter...
Page 249: Chapter 5. Operation Guidelines
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Operation Guidelines USB Port User Manual CHAPTER 5. OPERATION GUIDELINES Safety Rules and Conditions Please carefully read this section before installation and connection of the device. Make sure that the power adapter and cables are not damaged.
Page 250: Wireless Installation Considerations
RF noise in your home or office. To maximize your wireless range, follow the guidelines below. 1. Keep the number of walls and ceilings between the DVG-N5402G/ACF device and other network devices to a minimum – each wall or ceiling can reduce your wireless network range by 3-90 feet (1-30 meters).
Page 251: Chapter 6. Abbreviations And Acronyms
DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Abbreviations and Acronyms USB Port User Manual CHAPTER 6. ABBREVIATIONS AND ACRONYMS Third Generation Access Category Advanced Encryption Standard...
Page 252 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Abbreviations and Acronyms USB Port User Manual Maximum Transmission Unit Network Address Translation Network Time Protocol OFDM Orthogonal Frequency Division Multiplexing...
Page 253 DVG-N5402G/ACF Wireless AC1200 Dual Band Gigabit Router with Fiber WAN Port, 3G/LTE Support, 2 FXS Ports, 1 PSTN (lifeline) Port, and Abbreviations and Acronyms USB Port User Manual Wired Equivalent Privacy Wi-Fi Wireless Fidelity WLAN Wireless Local Area Network Wi-Fi Multimedia...

D-Link DVG-N5402G/ACF User Manual

Chapter 1. Introduction

Chapter 2. Overview

Chapter 3. Installation and Connection

Chapter 4. Configuring Via Web-Based Interface

Chapter 5. Operation Guidelines

Chapter 6. Abbreviations and Acronyms

Quick Links

Need help?

Questions and answers

Related Manuals for D-Link DVG-N5402G/ACF

Summary of Contents for D-Link DVG-N5402G/ACF

Table of Contents
