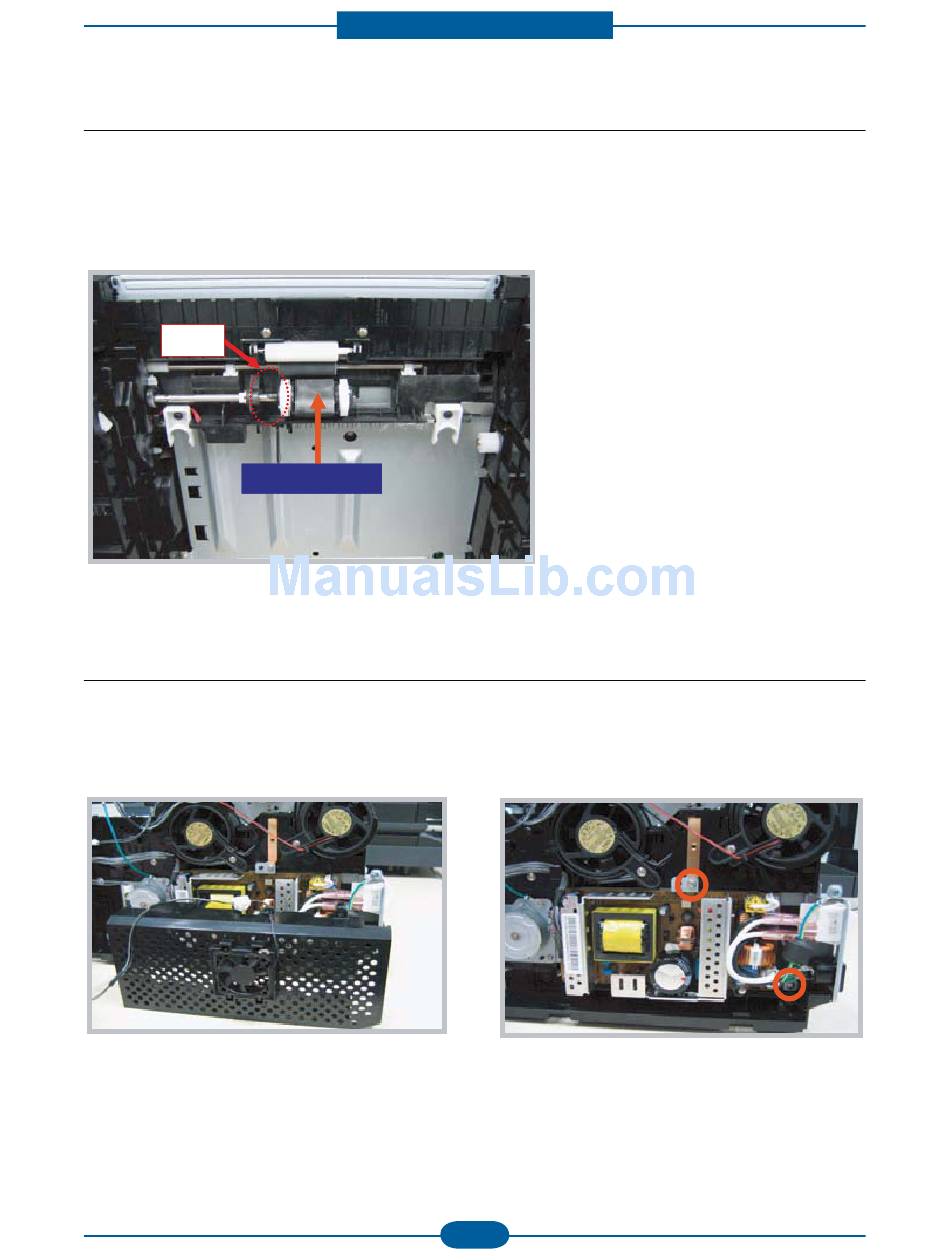

3.2.9 Pick_Up Roller

- Before disassembling the Pick up roller, You must remove the Toner cartridge and Cassette Unit.
1. First turn upside down the SET.
2. Remove the Pick up roller rubber by pulling a hook.
Hook
Hook
Pick_Up Rubber
Pick_Up Rubber

3.2.10 SMPS

- Before disassembling the SMPS board, remove the Cover-Rear, Cover-Side(Right), Duplex Motor.
1. Remove the Cover-SMPS after remove the 2
screws.
Service Manual
Disassembly and Reassembly
2. Remove the SMPS Shield after remove the
2 screws.
3-9
