7. Remove the Cover-Rear.

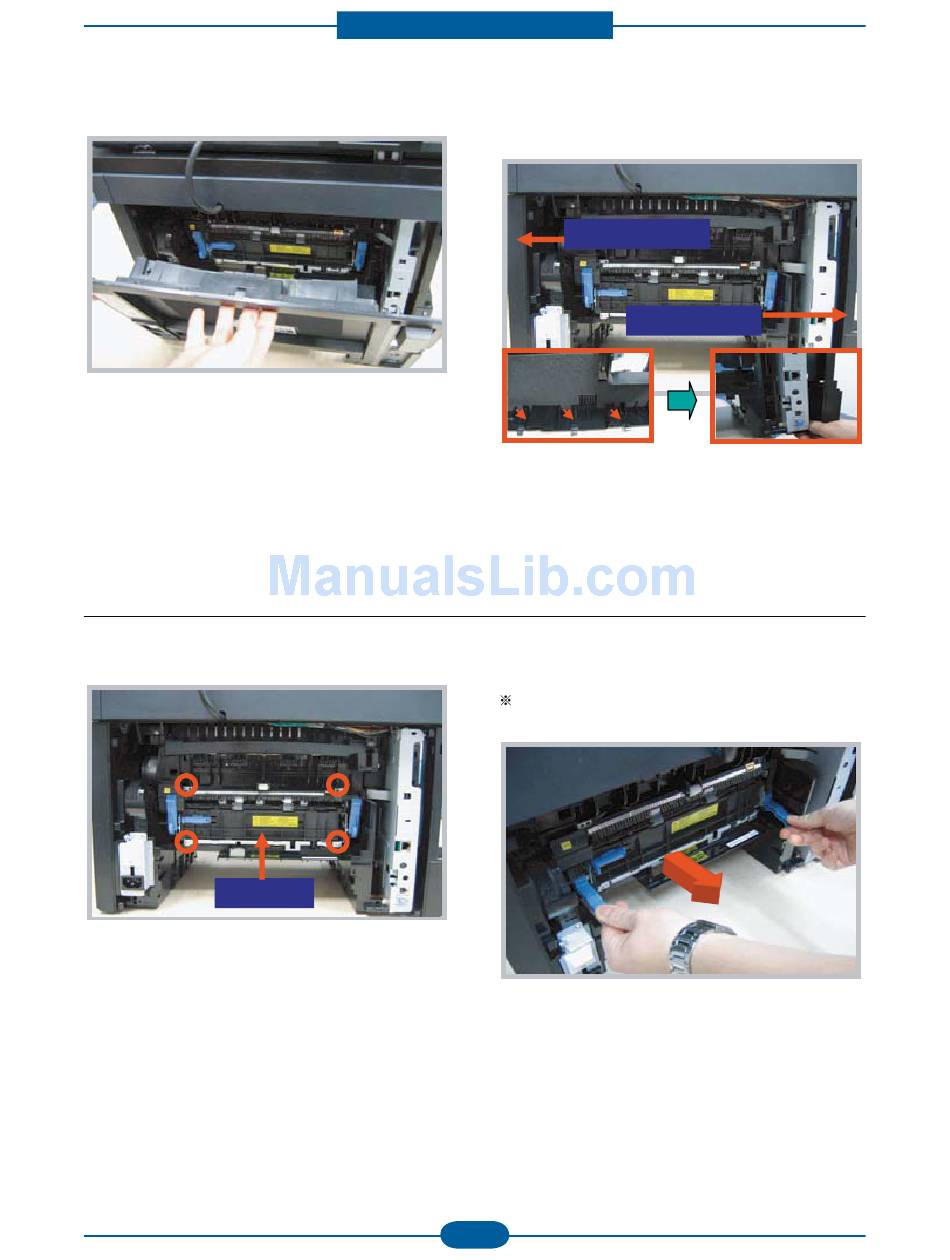

3.2.2 Fuser-Unit

1.Open the Cover-Rear. And remove the 4 screws.
Fuser-Unit
Fuser-Unit
Service Manual
Disassembly and Reassembly
8. Remove the Cover-Side(Left,Right) by removing
the 3 hook from the bottom.
2. Take out the Fuser-Unit with holding the lever.
If you want to repair the sub unit of Fuser,
please consult the Fuser exploded view.
3-3
Cover-Side Right
Cover-Side Left
