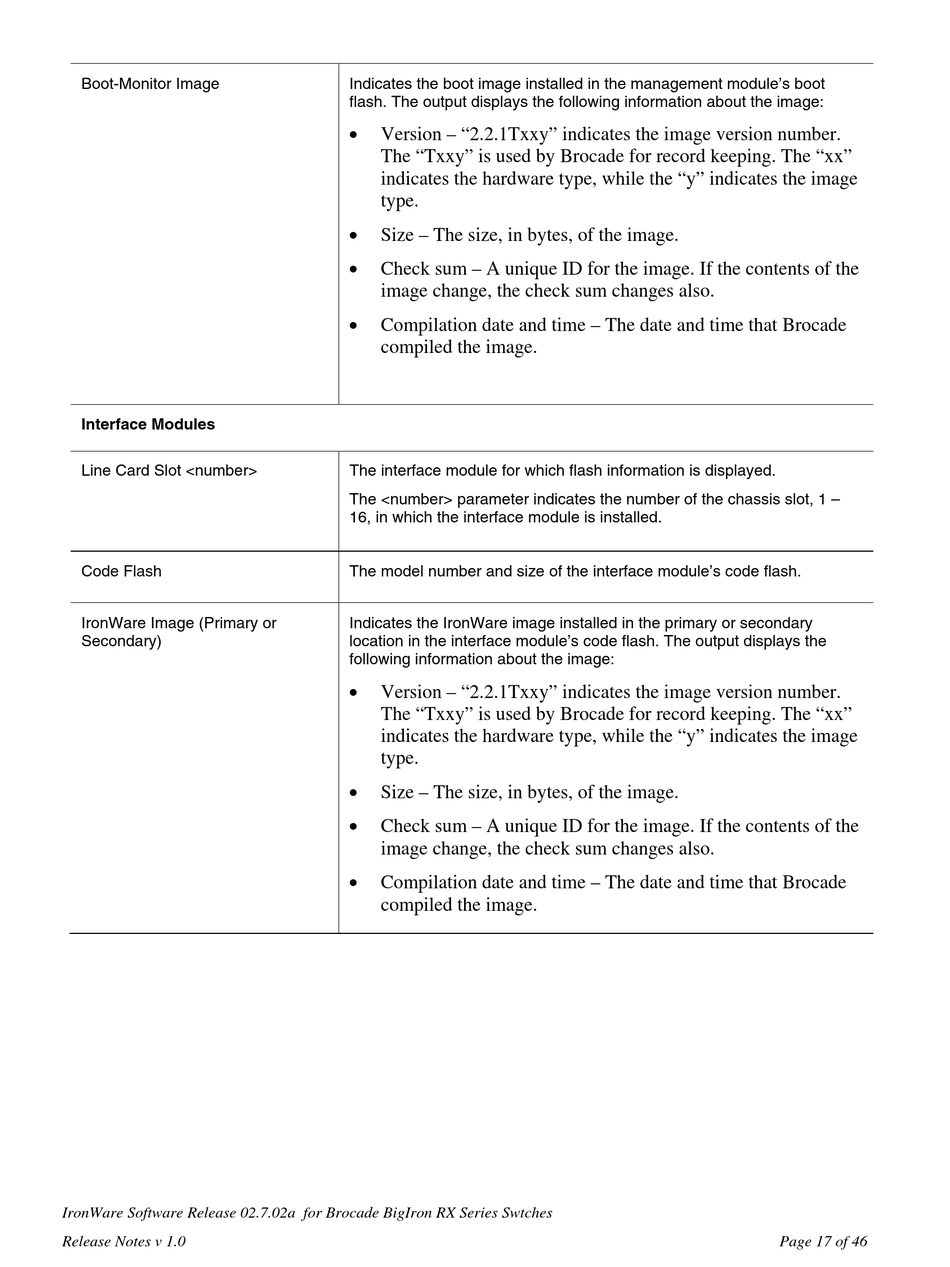

Brocade Communications Systems PowerConnect B-RX Release Note page 17

Boot-Monitor Image
Interface Modules
Line Card Slot <number>
Code Flash
IronWare Image (Primary or
Secondary)
IronWare Software Release 02.7.02a for Brocade BigIron RX Series Swtches
Release Notes v 1.0
Indicates the boot image installed in the management module's boot
flash. The output displays the following information about the image:

Version – "2.2.1Txxy" indicates the image version number.
The "Txxy" is used by Brocade for record keeping. The "xx"
indicates the hardware type, while the "y" indicates the image
type.

Size – The size, in bytes, of the image.

Check sum – A unique ID for the image. If the contents of the
image change, the check sum changes also.

Compilation date and time – The date and time that Brocade
compiled the image.
The interface module for which flash information is displayed.
The <number> parameter indicates the number of the chassis slot, 1 –
16, in which the interface module is installed.
The model number and size of the interface module's code flash.
Indicates the IronWare image installed in the primary or secondary
location in the interface module's code flash. The output displays the
following information about the image:

Version – "2.2.1Txxy" indicates the image version number.
The "Txxy" is used by Brocade for record keeping. The "xx"
indicates the hardware type, while the "y" indicates the image
type.

Size – The size, in bytes, of the image.

Check sum – A unique ID for the image. If the contents of the
image change, the check sum changes also.

Compilation date and time – The date and time that Brocade
compiled the image.
