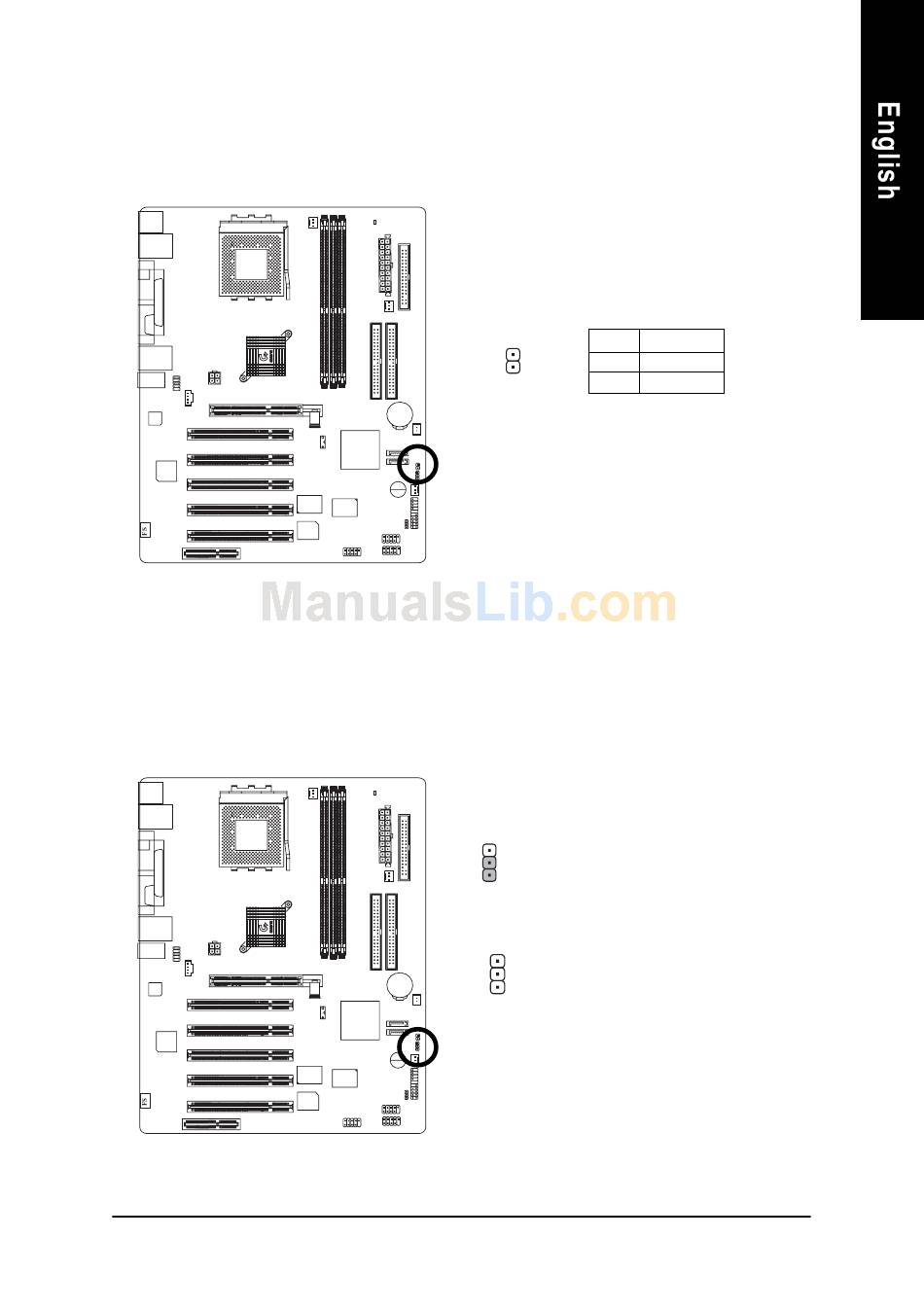

18) CI (CASE OPEN)
This 2 pin connector allows your system to enable or disable the "case open" item in BIOS if the
system case begin remove.

19) CLR_CMOS (Clear CMOS jumper)

You may clear the CMOS data to its default values by this jumper. Default doesn't include the
"Shunter" to prevent from improper use this jumper. To Clear CMOS, temporarily short 1-2 pin.
Pin No. Definition
1
1
2
1-2 close: Enable
1
2-3 open: Normal (Default)
1
