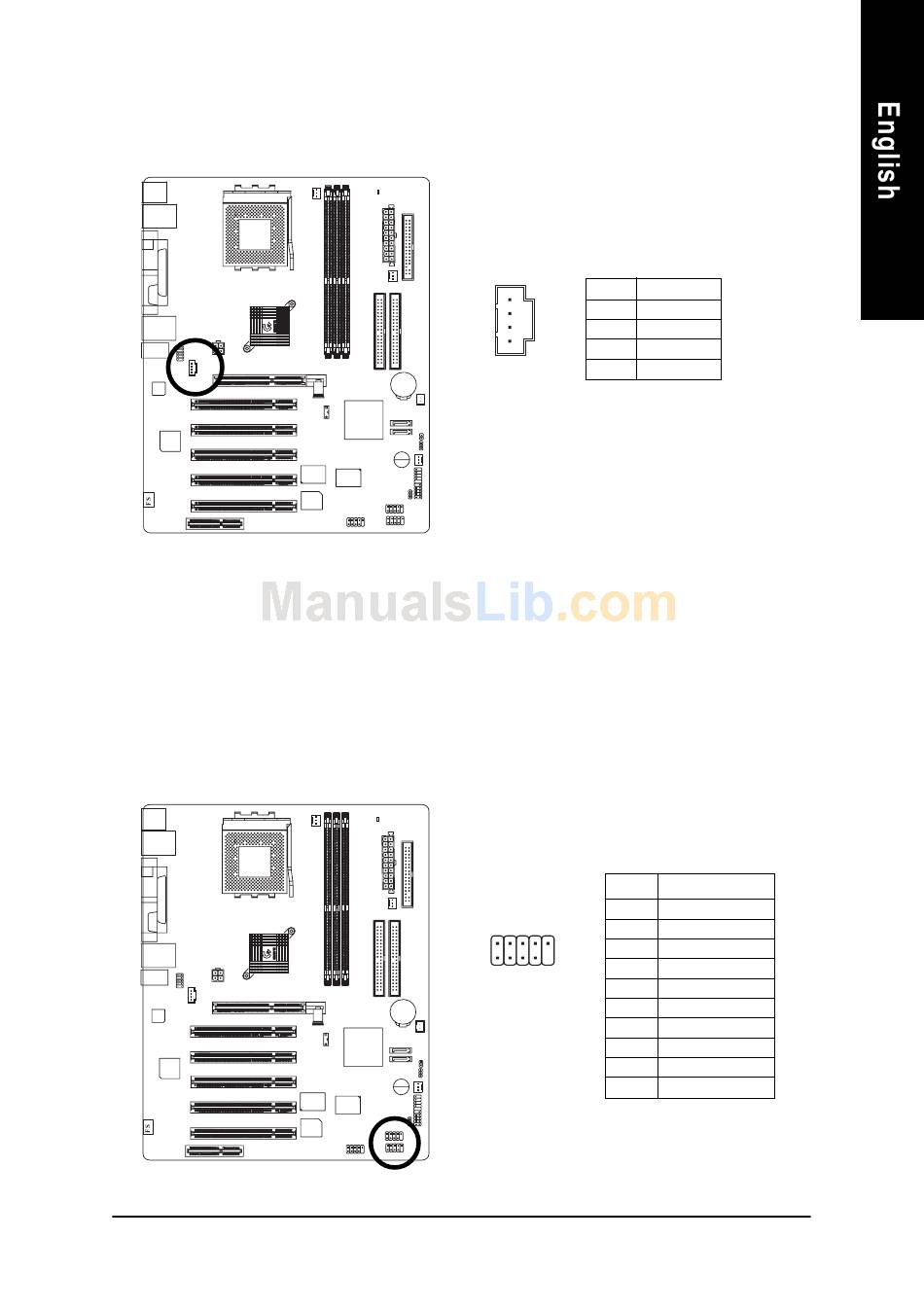

14) AUX_IN (AUX In Connector)
Connect other device(such as PCI TV Tunner audio out)to the connector.
15) F_ USB1 / F_USB2 (Front USB Connector, Yellow)
Be careful with the polarity of the front USB connector. Check the pin assignment while you
connect the front USB cable. Please contact your nearest dealer for optional front USB cable.
Be careful with the polarity of the F_USB connector. Check the pin assignment carefully while you
connect the F_USB cable, incorrect connection between the cable and connector will make the device
unable to work or even damage it. For optional F_USB cable, please contact your local dealer.
Pin No. Definition
1
2
1
3
4
Pin No.
2
10
1 9
- 27 -
AUX-L
GND
GND
AUX_R
Definition
1 Power
2 Power
3 USB DX-
4 USB Dy-
5 USB DX+
6 USB Dy+
7 GND
8 GND
9 No Pin
10
NC
Hardware Installation Process
