Step 4: Connect ribbon cables, cabinet wires, and power
supply

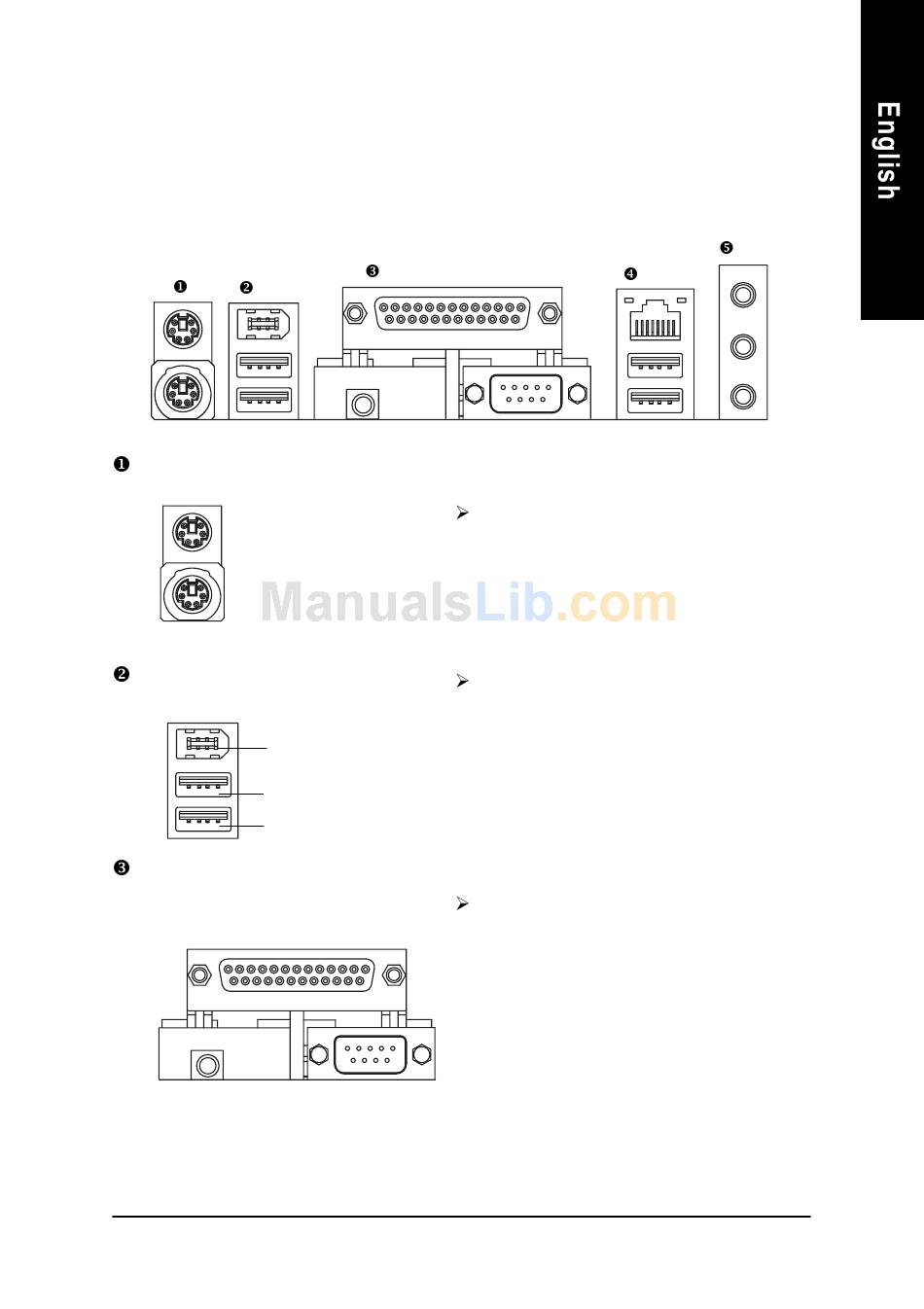

Step 4-1: I/O Back Panel Introduction

PS/2 Keyboard and PS/2 Mouse Connector
PS/2 Mouse Connector
(6 pin Female)
PS/2 Keyboard Connector
(6 pin Female)
IEEE 1394 and USB Connector
1394
USB 0
USB 1
Parallel Port, Serial Port and SPDIF Port (LPT/COMA/SPDIF)
Parallel Port
(25 pin Female)
SPDIF Port
This connector supports standard PS/2 keyboard
and PS/2 mouse.
This connector supports IEEE 1394 and USB
devices.
This connector supports 1 standard COM port,
1 Parallel port and 1 SPDIF port. Device like
printer can be connected to Parallel port;
mouse and modem etc can be connected to
Serial ports.
The SPDIF output is capable of providing
digital audio to external speakers or com
COMA
pressed AC3 data to an external Dolby Digital
Serial Port
Decoder. Use this feature only when your
(9 pin Male)
stereo system has digital input function.
- 17 - Hardware Installation Process
