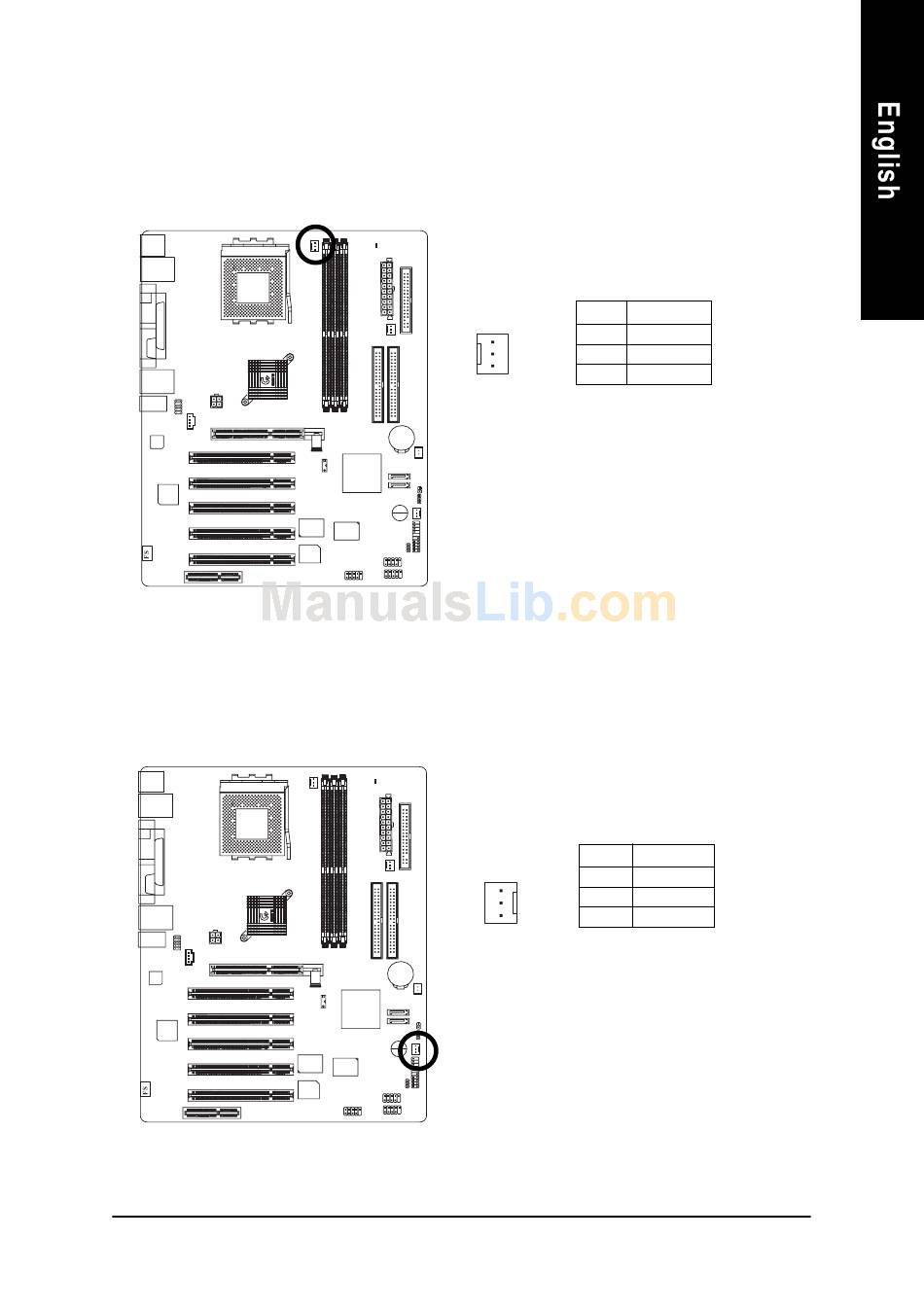

3) CPU_FAN (CPU FAN Connector)

Please note, a proper installation of the CPU cooler is essential to prevent the CPU from running
under abnormal condition or damaged by overheating.The CPU fan connector supports Max.
current up to 600 mA.
4) SYS_FAN (System FAN Connector)
This connector allows you to link with the cooling fan on the system case to lower the system
temperature.
Pin No.
1
1
2
3
Pin No. Definition
1
2
1
3
- 21 -
Definition
GND
+12V
Sense
GND
+12V
Sense
Hardware Installation Process
