AMD GA-7VASFS-FS User Manual page 25

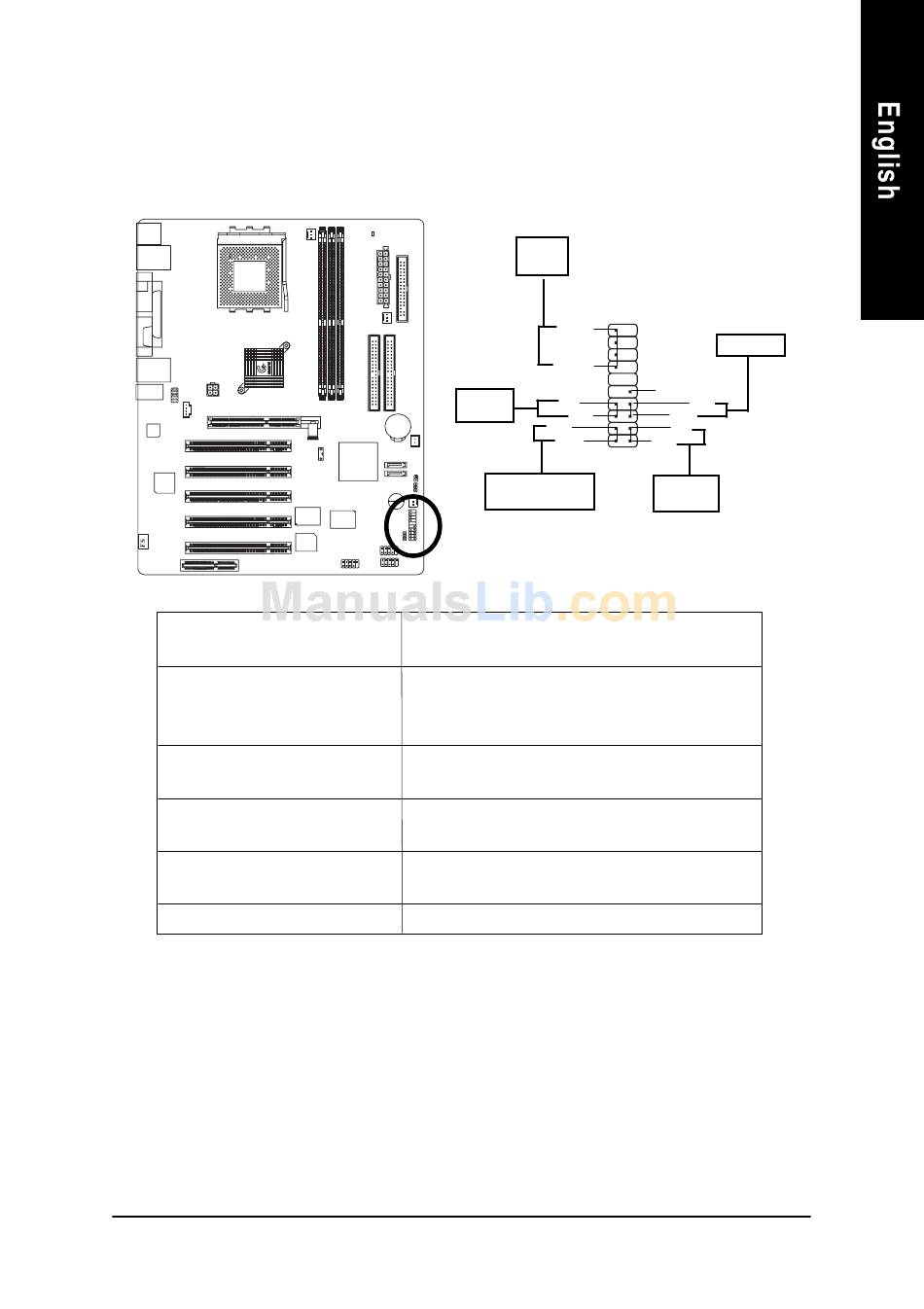

11) F_PANEL (2x10 pins connector)
Please connect the power LED, PC peaker, reset switch and power switch etc of your chassis front panel
to the F_PANEL connector according to the pin assignment above.
HD (IDE Hard Disk Active LED)
(Blue)
SPK (Speaker Connector)
(Amber)
RES (Reset Switch)
(Green)
PW (Soft Power Connector)
(Red)
MSG(Message LED/Power/
Sleep LED)(Yellow)
NC( Purple)
Speaker
Connector
SPEAK-
SPEAK+
Soft Power
PW-
Connector
PW+
MSG-
MSG+
Message LED/Power/
Sleep LED
Pin 1: LED anode(+)
Pin 2: LED cathode(-)
Pin 1: VCC(+)
Pin 2- Pin 3: NC
Pin 4: Data(-)
Open: Normal Operation
Close: Reset Hardware System
Open: Normal Operation
Close: Power On/Off
Pin 1: LED anode(+)
Pin 2: LED cathode(-)
NC
- 25 -
20 19
Reset Switch
1
NC
1
RES+
RES-
1
HD-
1
1
HD+
2 1
IDE Hard Disk
Active LED
Hardware Installation Process
