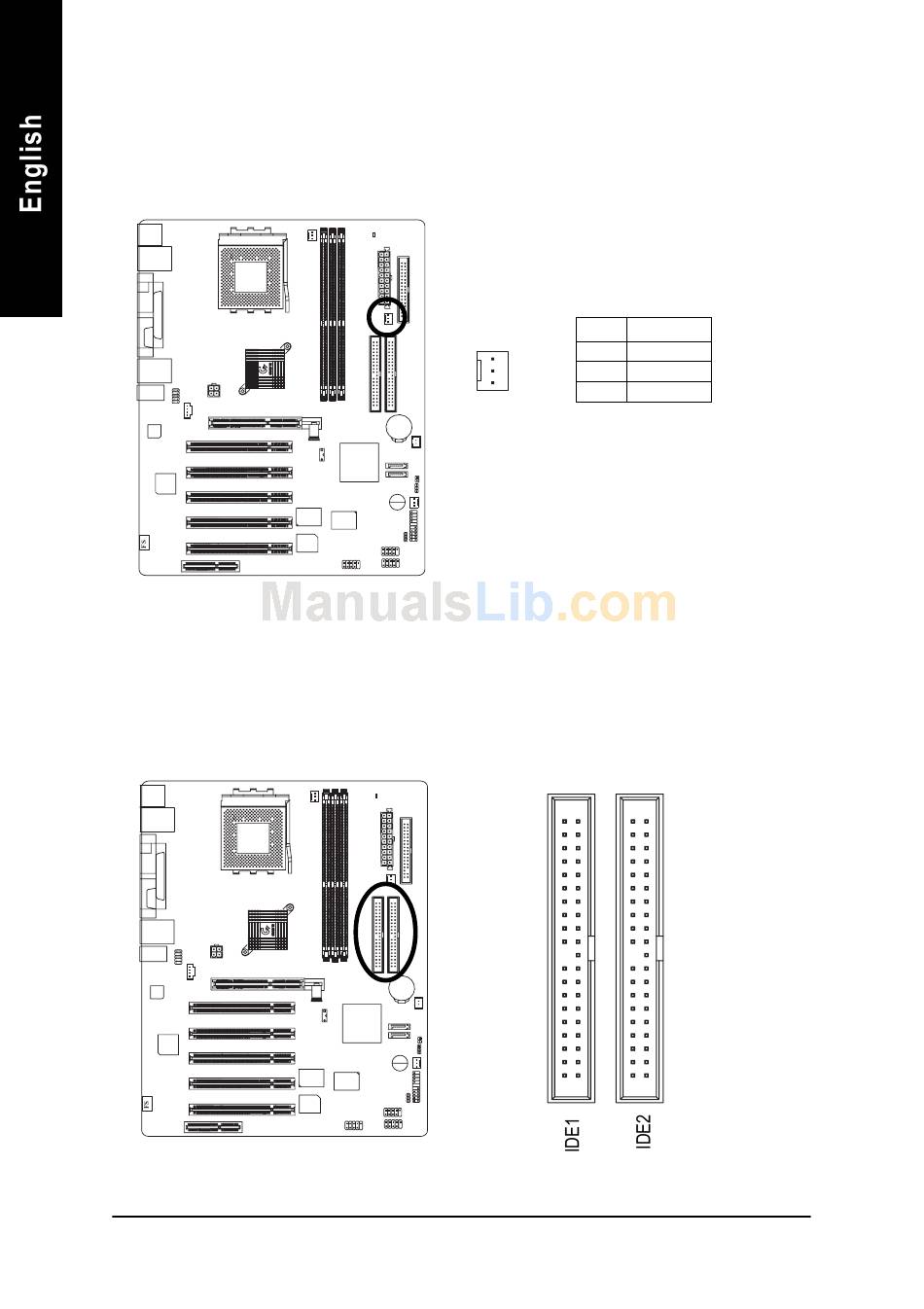

5) PWR_FAN (Power Fan Connector)
This connector allows you to link with the cooling fan on the system case to lower the system
temperature.
6) IDE1/ IDE2 (IDE1/IDE2 Connector)
Please connect first harddisk to IDE1 and connect CDROM to IDE2. The red stripe of the ribbon cable
must be the same side with the Pin1.
GA-7VASFS-FS Motherboard
Pin No.
1
1
2
3
40
2
- 22 -
Definition
GND
+12V
Sense
39
1
