MHT2
Series

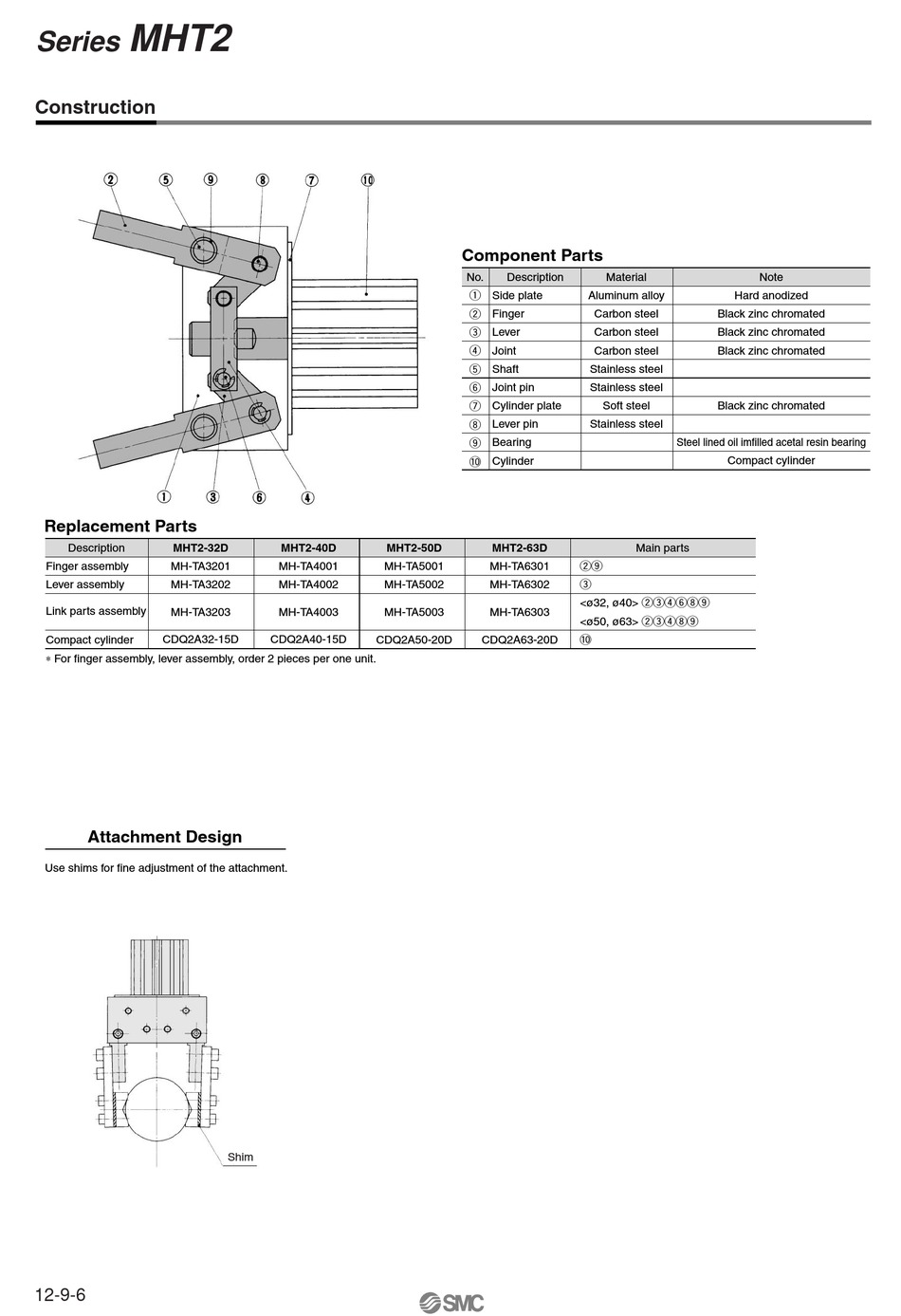

Construction

Replacement Parts

Description MHT2-32D
Finger assembly MH-TA3201
Lever assembly MH-TA3202
Link parts assembly
MH-TA3203
Compact cylinder CDQ2A32-15D
∗ For finger assembly, lever assembly, order 2 pieces per one unit.
Attachment Design
Use shims for fine adjustment of the attachment.
12-9-6
MHT2-40D MHT2-50D
MH-TA4001 MH-TA5001
MH-TA4002 MH-TA5002
MH-TA4003 MH-TA5003
CDQ2A40-15D CDQ2A50-20D
Shim
Component Parts
No. Description Material
q
Side plate Aluminum alloy
w
Finger Carbon steel
e Lever Carbon steel
r
Joint Carbon steel
t
Shaft Stainless steel
y Joint pin Stainless steel
u Cylinder plate Soft steel
i
Lever pin Stainless steel
o Bearing
!0 Cylinder
MHT2-63D
wo
MH-TA6301
e
MH-TA6302
<ø32, ø40> weryio
MH-TA6303
<ø50, ø63> werio
!0
CDQ2A63-20D
Note
Hard anodized
Black zinc chromated
Black zinc chromated
Black zinc chromated
Black zinc chromated
Steel lined oil imfilled acetal resin bearing
Compact cylinder
Main parts
