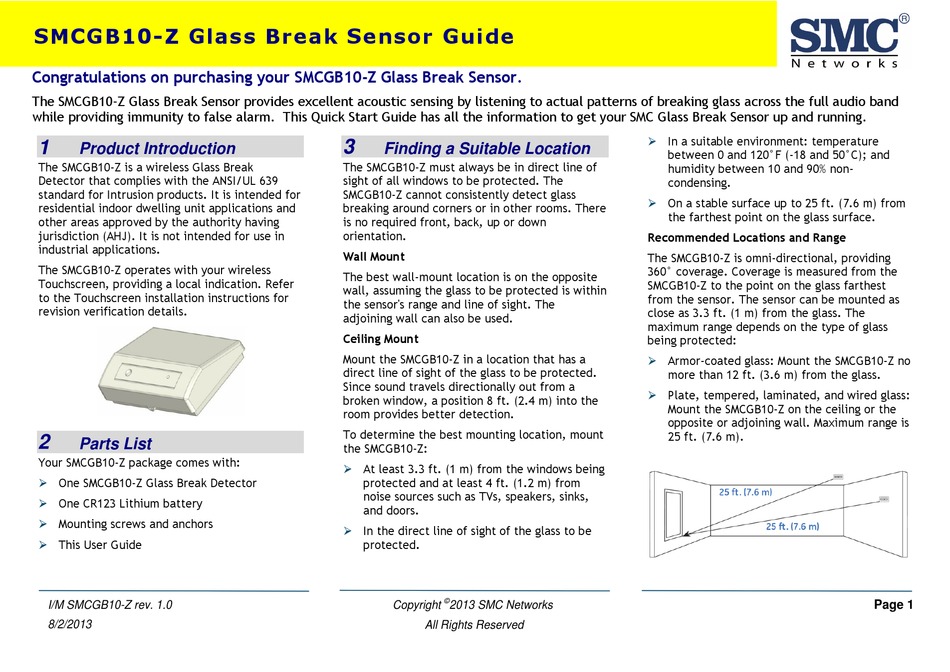

SMCGB10-Z Glass Break Sensor Guide
Congratulations on purchasing your SMCGB10-Z Glass Break Sensor.
The SMCGB10-Z Glass Break Sensor provides excellent acoustic sensing by listening to actual patterns of breaking glass across the full audio band
while providing immunity to false alarm. This Quick Start Guide has all the information to get your SMC Glass Break Sensor up and running.
1
Product Introduction

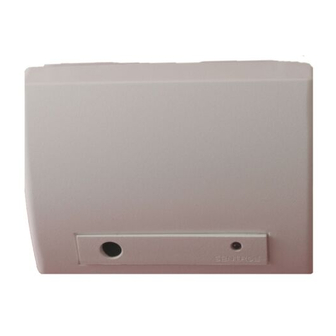

The SMCGB10-Z is a wireless Glass Break
Detector that complies with the ANSI/UL 639
standard for Intrusion products. It is intended for
residential indoor dwelling unit applications and
other areas approved by the authority having
jurisdiction (AHJ). It is not intended for use in
industrial applications.
The SMCGB10-Z operates with your wireless
Touchscreen, providing a local indication. Refer
to the Touchscreen installation instructions for
revision verification details.
2
Parts List
Your SMCGB10-Z package comes with:
One SMCGB10-Z Glass Break Detector

 One CR123 Lithium battery
Mounting screws and anchors

 This User Guide
I/M SMCGB10-Z rev. 1.0
8/2/2013
3
Finding a Suitable Location
The SMCGB10-Z must always be in direct line of
sight of all windows to be protected. The
SMCGB10-Z cannot consistently detect glass
breaking around corners or in other rooms. There
is no required front, back, up or down
orientation.
Wall Mount
The best wall-mount location is on the opposite
wall, assuming the glass to be protected is within
the sensor's range and line of sight. The
adjoining wall can also be used.
Ceiling Mount
Mount the SMCGB10-Z in a location that has a
direct line of sight of the glass to be protected.
Since sound travels directionally out from a
broken window, a position 8 ft. (2.4 m) into the
room provides better detection.
To determine the best mounting location, mount
the SMCGB10-Z:
At least 3.3 ft. (1 m) from the windows being

protected and at least 4 ft. (1.2 m) from
noise sources such as TVs, speakers, sinks,
and doors.
 In the direct line of sight of the glass to be
protected.
©
Copyright 2013 SMC Networks
All Rights Reserved
In a suitable environment: temperature

between 0 and 120°F (-18 and 50°C); and
humidity between 10 and 90% non-
condensing.
On a stable surface up to 25 ft. (7.6 m) from

the farthest point on the glass surface.
Recommended Locations and Range
The SMCGB10-Z is omni-directional, providing
360° coverage. Coverage is measured from the
SMCGB10-Z to the point on the glass farthest
from the sensor. The sensor can be mounted as
close as 3.3 ft. (1 m) from the glass. The
maximum range depends on the type of glass
being protected:
Armor-coated glass: Mount the SMCGB10-Z no

more than 12 ft. (3.6 m) from the glass.
Plate, tempered, laminated, and wired glass:

Mount the SMCGB10-Z on the ceiling or the
opposite or adjoining wall. Maximum range is
25 ft. (7.6 m).
