SMC Networks MHT2 User Manual page 4

MHT2
Series

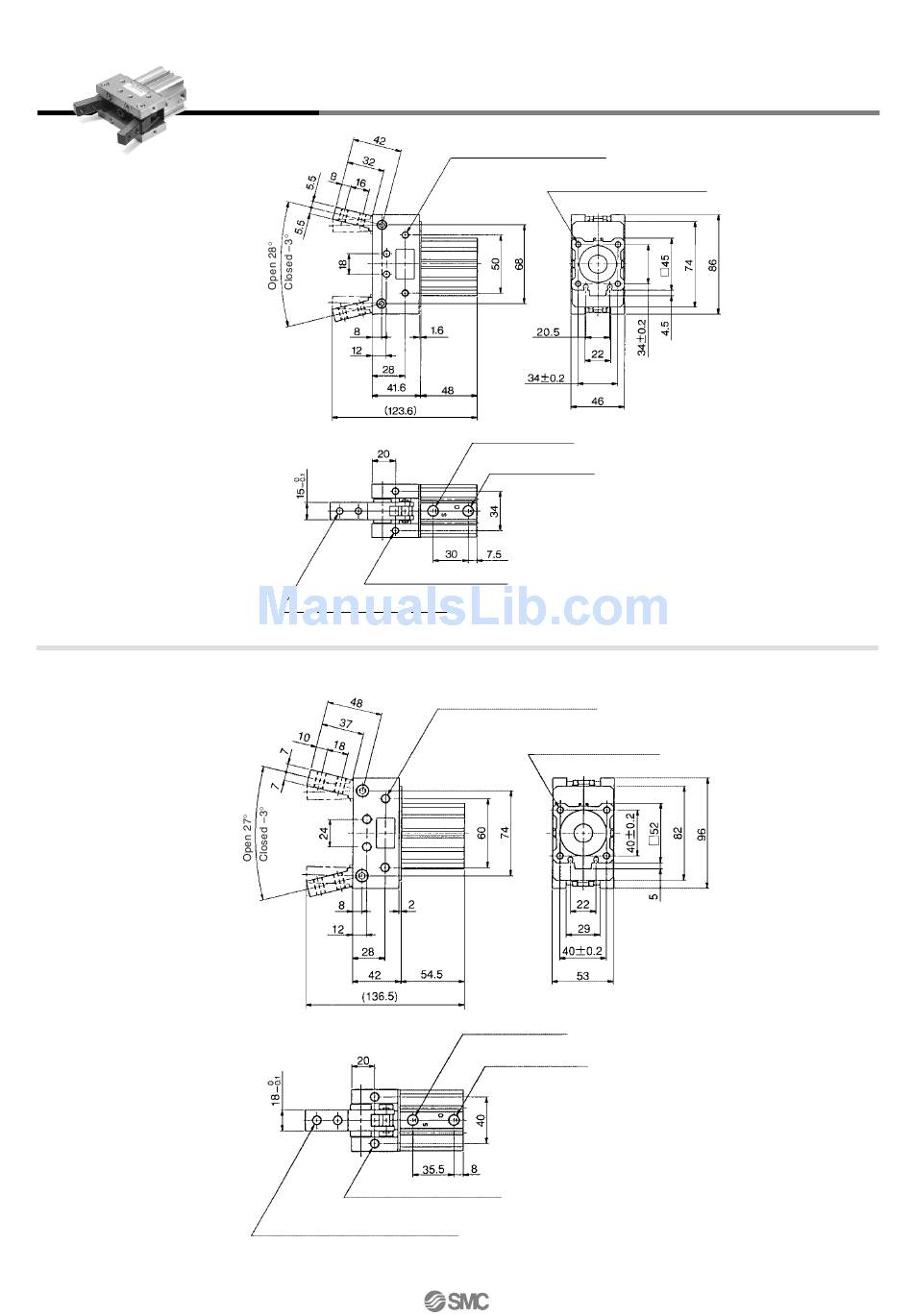

Dimensions
MHT2-32D
MHT2-40D
12-9-4
Thread depth 10 (Both sides)
4-M6 x 1 thread depth 15
Mounting thread
4-M6 x 1 bottom hole dia. 5.1
Thread for mounting attachment
8-M8 x 1.25 mounting thread
Thread depth 10 (Both sides)
4-M8 x 1.25 thread depth 12
Mounting thread
4-M8 x 1.25 bottom hole dia. 6.8
Thread for mounting attachment
8-M6 x 1 mounting thread
4-M6 x 1 thread depth 10
Mounting thread
Finger closing port
Rc 1/8
Finger opening port
Rc 1/8
4-M6 x 1 thread depth 10
Mounting thread
Finger closing port
Rc 1/8
Finger opening port
Rc 1/8
