Synexis TP2 beltpack transmitter

4.1

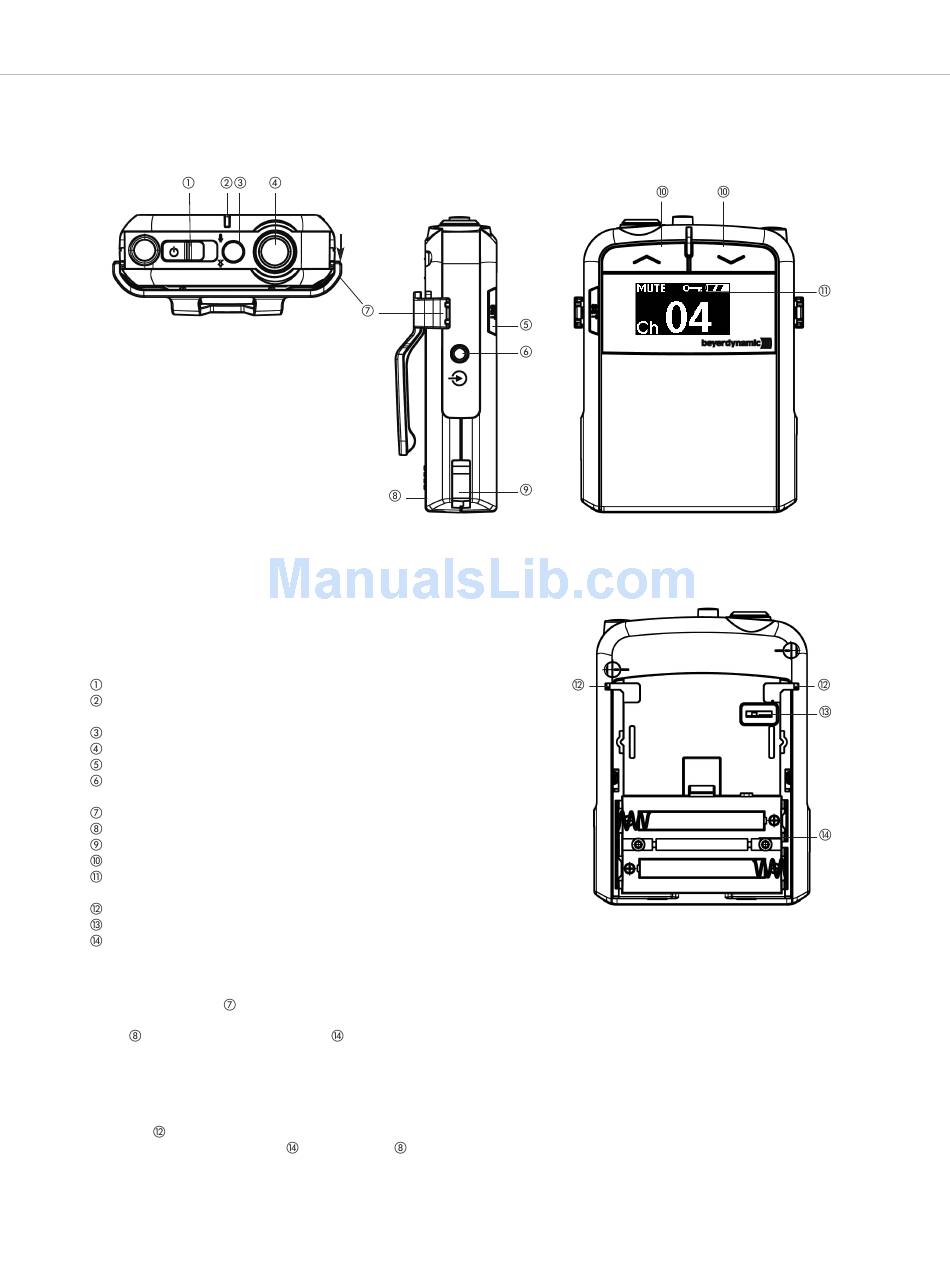

Controls and indicators

On/off switch
LED to display operating or charging status
(refer also to the chapter "Synexis chargers")
Push-button to mute the microphone
Microphone connection, 4-pin mini XLR
Set button
Line-In input to connect an audio source such as MP3 player,
mini stereo jack (3.5 mm)
Belt clip
Lid of the battery compartment
Charging contacts on the right and left hand side
Channel selector buttons
OLED display to indicate the channel, battery status, frequency and
channel lock function (on delivery with protective foil)
Mounting for strap
Gain switch, 3 stages Hi/Mid/Low
Battery compartment
4.2

How to insert/replace the batteries

• Remove the belt clip by levering out the clip with pressure to the rear from the
lock-in position (see arrow in chapter "Controls and indicators"). Slide down the
lid to open the battery compartment
• Insert the supplied NiMH rechargeable batteries according to the polarity marks.
Before using the transmitter for the first time, the rechargeable batteries inside
must be charged e.g. with the Synexis C8 or C10 charger. As an alternative you
can use two 1.5 V AA alkaline batteries.
• If you wish to wear the transmitter with a strap around your neck, you can mount
a strap to the right and left hand side.
• Close the battery compartment
.
by sliding the lid to the top.
