Beyerdynamic TG 500DR Quick Start Manual

TG 500DR
UHF Dual Diversity Receiver

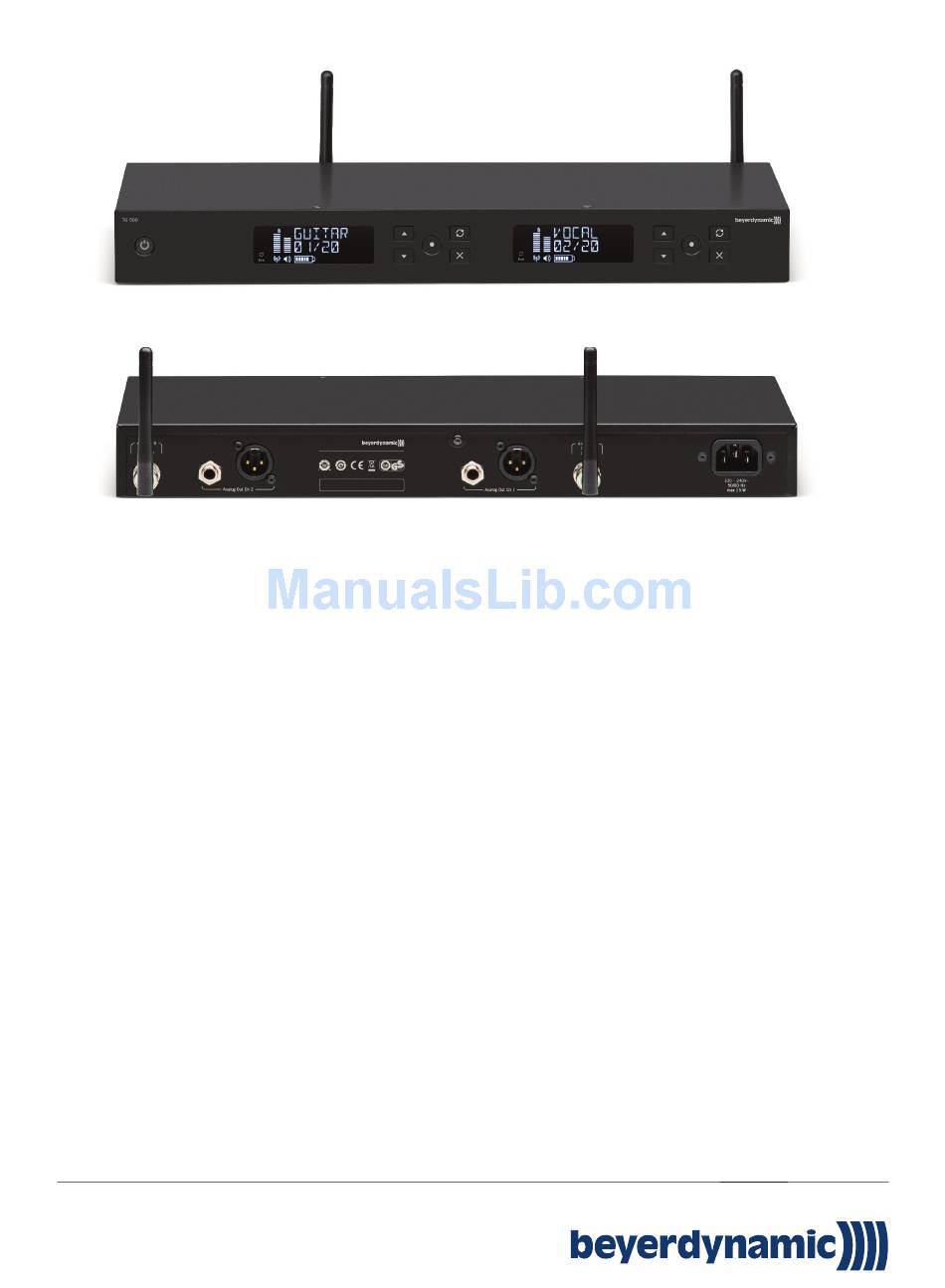

Front view
Rear view
F
EATURES
• Intuitive, user-friendly menu structure
• Up to 40 MHz switching bandwidth
• Infrared interface for transmitting the settings from
the receiver to the transmitter
• Backlit LC display
• Status display (battery, frequency, name)
• Scan function
• BNC antenna outputs
• XLR and jack output (balanced)
• Mixed audio output
• Antenna phantom power (8 V)
• Detachable BNC antennas
• Pilot tone function
V
ERSIONS
TG 500DR Dual diversity receiver,
518 – 548 MHz . . . . . . . . . . . . . . . Order # 712.329
TG 500DR same as above,
but 606 – 636 MHz . . . . . . . . . . . . Order # 712.337
TG 500DR same as above,
but 794 – 832 MHz . . . . . . . . . . . . Order # 712.345
TG 500DR same as above,
but 1,780 – 1,810 MHz . . . . . . . . . . Order # 712.361
1 of 2
beyerdynamic GmbH & Co. KG
Theresienstr. 8 | 74072 Heilbronn – Germany
Tel. +49 (0) 71 31 / 617 - 0 | Fax +49 (0) 71 31 / 617 - 204
info@beyerdynamic.de | www.beyerdynamic.com
For further distributors worldwide, please go to www.beyerdynamic.com
Non-contractual illustrations. Contents subject to change without notice. E1/TG 500DR (01.17)
D
ESCRIPTION
The heart of each beyerdynamic TG 500 wireless system is an
attractively designed receiver with a robust metal housing and a
clearly parameterised front panel. Intuitively operating elements in
combination with a backlit LC display enable a particularly
user-friendly menu navigation. The frequency response of the
system is from 45 to 15 kHz. A balanced XLR output and a balanced
jack output are provided as analogue audio port. If requested the
two audio channels of the dual receiver can be output via a com-
mon output - due to the mixed output, there is no need for an
external mixing console.
For those who require multiple channels, the TG 500 system offers
the perfect solution with its dual receiver with 19" dimensions (1 U),
as it is provided with an integrated power supply and antenna
splitter. The dual receiver supplies the required antenna phantom
power required when using remote antennas
S A
UPPLIED CCESSORIES
Power adapter
Quick start guide
2 x antennas
Rack mount kit
