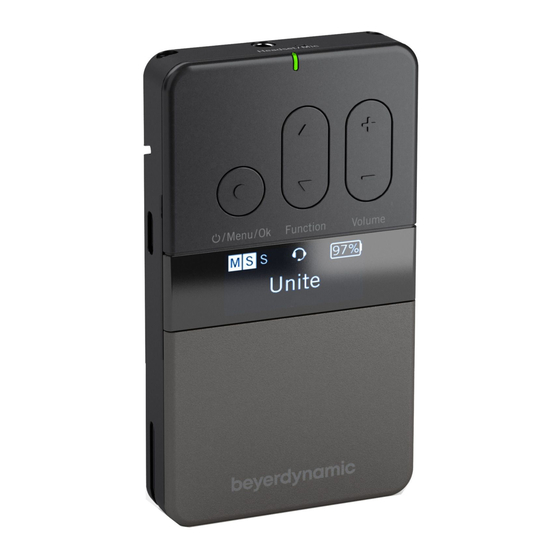

Beyerdynamic UNITE RP-T Manual
Button replacement of mute and talk button
Hide thumbs
Also See for UNITE RP-T:
- Quick start manual (36 pages) ,
- Operating instructions manual (36 pages)
Subscribe to Our Youtube Channel
Related Manuals for Beyerdynamic UNITE RP-T
Summary of Contents for Beyerdynamic UNITE RP-T
- Page 1 UNITE TP • UNITE RP-T BUTTON REPLACEMENT OF MUTE AND TALK BUTTON TASTENTAUSCH VON MUTE- UND TALK-TASTE...
- Page 2 Talk New Talk button cover für Unite RP-T ... . . 936.049 for Unite RP-T ... . . 936.049 Mute...
- Page 3 Unite TP • Unite RP-T Unite TP with old cover Unite TP mit alter Ab- for the Mute button. deckung für Mute- Taste. Unite TP with new Unite TP mit neuer Ab- cover for the Mute deckung für Mute- button.
- Page 4 Unite TP • Unite RP-T Place a flat, small screw- Flachen schmalen driver at the top of the old Schraubendreher oben an button cover and carefully alter Tastenabdeckung lever it out. ansetzen und diese vor- Make sure that you do not sichtig heraushebeln.
- Page 5 Unite TP • Unite RP-T Note the notch at the top of Nut im Gehäuse oben the housing. beachten. Note the clip in the new Feder in neuer Tastenab- button cover. deckung beachten.
- Page 6 Unite TP • Unite RP-T Insert the button cover into Tastenabdeckung im the housing so that the clip Gehäuse einsetzen, so dass and the notch match. Nut und Feder übereinstim- men. Press the button cover at the Tastenabdeckung an der bottom end into the housing.
- Page 7 Unite TP • Unite RP-T Using your finger, slide the Eingesetzte Tastenab- inserted button cover up and deckung mit dem Finger im down several times in the Gehäuse mehrfach nach housing until the cover is oben und unten schieben, bis...
- Page 8 Theresienstraße 8 • 74072 Heilbronn • Germany For further distributors worldwide, please go to www.beyerdynamic.com Non-contractual illustrations. Subject to change without notice. Weitere Vertriebspartner weltweit finden Sie im Internet unter www.beyerdynamic.com Abbildungen nicht vertragsbindend. Änderungen vorbehalten. EN-DE 3 / Unite TP • Unite RP-T/ (05.21)
