Beyerdynamic NE 600 Features And Specifications

NE 600
UHF Diversity Receiver
F
EATURES
• UHF diversity receiver with PLL synthesizer technology as
one-channel (NE 600 S) or,
two-channel version (NE 600 D)
• Suitable for 19" rack mounting, 1 U
Front view
• On/off switch with power on LED
• Scan button
• Channel display
• RF level indicator
• AF level indicator
• ACT button
Rear view
• Removable TNC antennae
• Antenna inputs (TNC sockets) with power supply for
antenna amplifiers
• AF output, 3-pin XLR, balanced
• AF output, 1/4" jack (6.35 mm), unbalanced
• Mic/Line level switch
• Adjustable squelch
1 of 3
beyerdynamic GmbH & Co. KG
Theresienstr. 8 | 74072 Heilbronn – Germany
Tel. +49 (0) 71 31 / 617 - 0 | Fax +49 (0) 71 31 / 617 - 224
info@beyerdynamic.de | www.beyerdynamic.de
For further distributors worldwide, please go to www.beyerdynamic.com
Non-contractual illustrations. Contents subject to change without notice. E1/NE 600 (05.09)

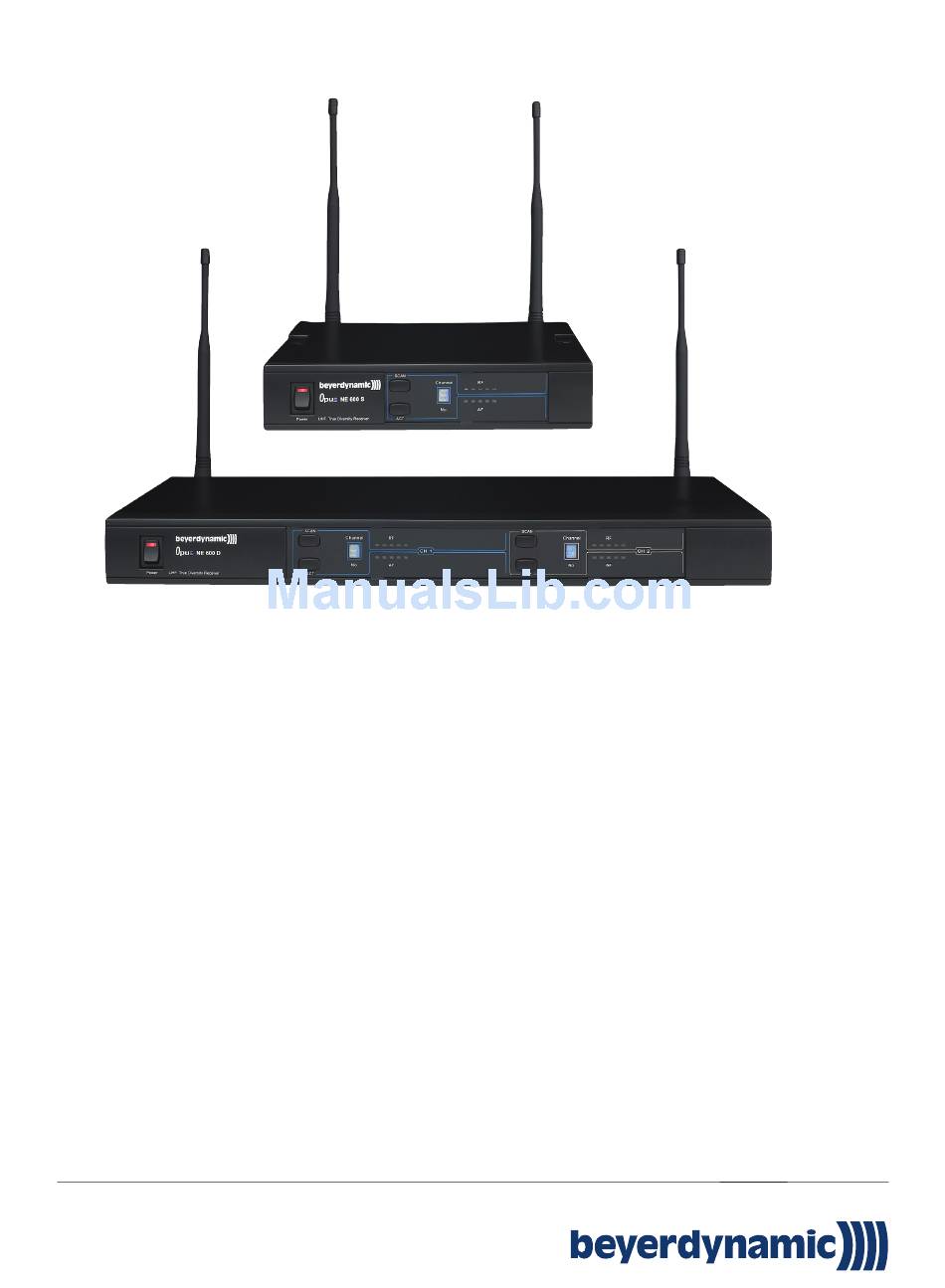

NE 600 S
NE 600 D
A
PPLICATIONS
The NE 600 UHF diversity receiver with PLL synthesizer technology
is suitable for a variety of applications: For example for musicians or
actors on stage, presenters and moderators in meetings, sports
events, hotels, universities and houses of worship. The reciever is
available in two versions as one-channel (NE 600 S) or two-channel
receiver (NE 600 D) with integrated antenna splitter and mix output.
The NE 600 operates in the frequency range from 506 to 530 MHz,
668 to 692 MHz, 774 to 798 MHz, 790 to 814 MHz and 841 to
865 MHz. Within these frequency ranges one of 16 pre-programmed
frequencies can be selected. The Scan function is used to start an
automatic search for interference-free frequencies. The found
frequency is transmitted to the transmitter with the ACT function
(Automatic Channel Targeting). The frequency presets can also be
selected manually. LEDs display all operating parameters such as
RF and AF level or the selected frequency preset. A sophisticated,
adjustable squelch system monitors the operating and level states
of the system. The pilotone-controlled AF-mute suppresses noise
and mutes the receiver when the appropriate transmitter is switched
off. The Opus 600 system features reliability, easy handling,
superior operating time of the transmitter battery and flexibility due
to interchangeable microphone capsules. The one-channel receiver
is also available in pre-configured sets with a rugged soft case.
