Beyerdynamic NE 900 Features And Specifications

NE 900
UHF Diversity Receiver

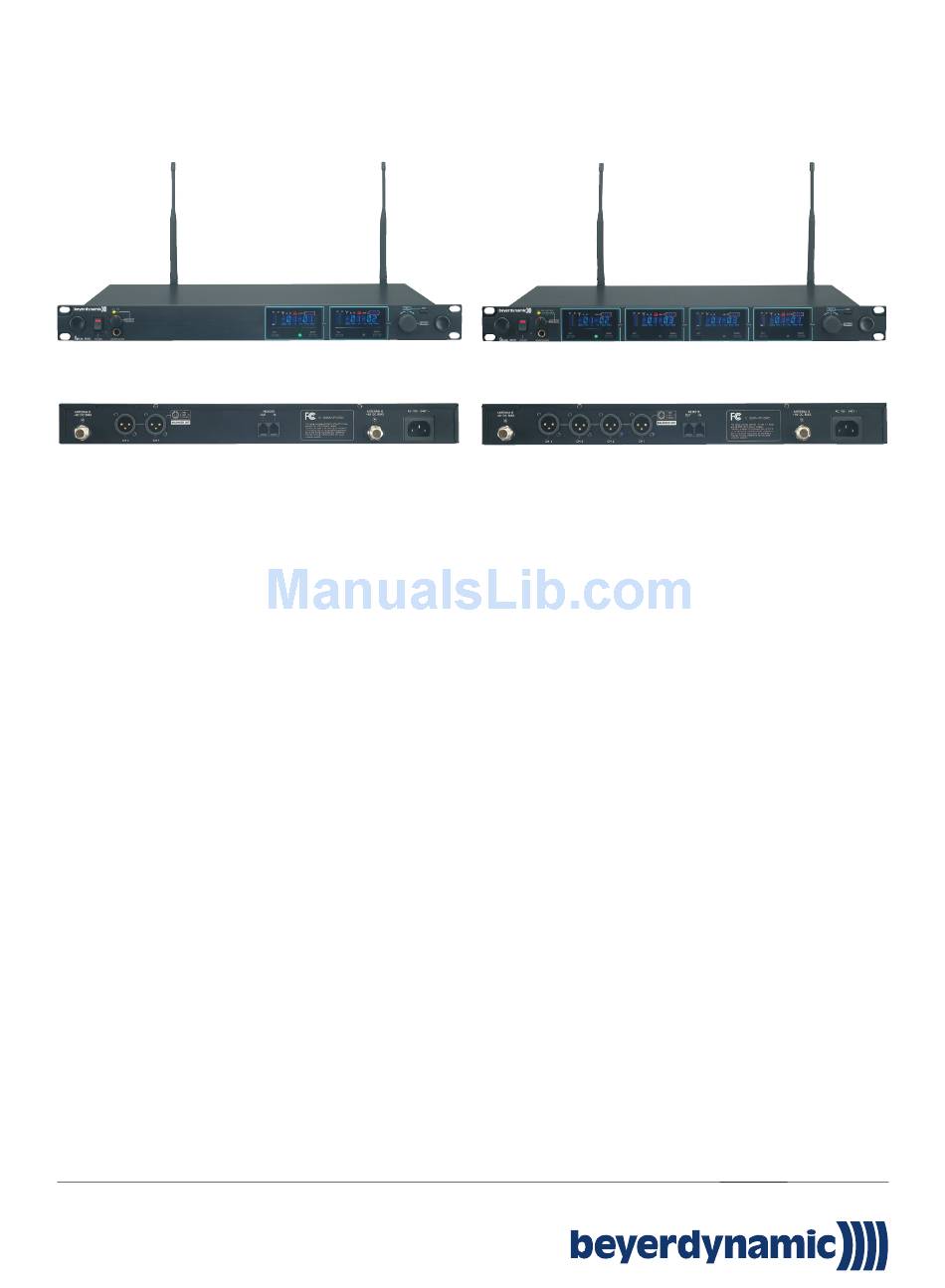

NE 900 D - Front view
NE 900 D - Rear view
F
EATURES
• UHF diversity receiver with PLL synthesizer technology as
one-channel (NE 900 S),
two-channel (NE 900 D) or
four-channel version (NE 900 Q)
• Suitable for 19" rack mounting, 1 U
Front view
• Colour display
• Menu control for selecting and setting
• On/off switch with power on LED
• SCAN function for automatic channel search
• ACT function (Automatic Channel Targeting) to transmit the
frequency to a transmitter automatically
• Monitoring/headphone output with volume control and
channel changeover switch
• Mounting bracket for installing the antennae on the front
Rear view
• Removable TNC antennae
• Antenna inputs (TNC socket) with power supply for antenna
amplifiers
• AF output, 3-pin XLR, balanced
• Interface to connect PCs or laptops operating with Windows
2000 or XP
1 of 2
beyerdynamic GmbH & Co. KG
Theresienstr. 8 | 74072 Heilbronn – Germany
Tel. +49 (0) 71 31 / 617 - 0 | Fax +49 (0) 71 31 / 617 - 224
info@beyerdynamic.de | www.beyerdynamic.de
For further distributors worldwide, please go to www.beyerdynamic.com
Non-contractual illustrations. Contents subject to change without notice. E2/NE 900 (04.09)
A
PPLICATIONS
The NE 900 UHF diversity receiver with PLL synthesizer technology
has been developed for professional use at broadcasting studios,
film, on stage etc. The receiver is available in three versions:
one-channel (NE 900 S), two-channel (NE 900 D ) or four-channel
(NE 900 Q). The NE 900 operates in the frequency bands 668 to
692 MHz, 774 to 798 MHz, 790 to 814 MHz and 841 to 865 MHz.
Each TV channel provides 100 pre-programmed frequencies.
A maximum of 16 frequencies can be operated simultaneously
without any interference.
By using the SCAN function an automatic channel search is started
and with the ACT function (Automatic Channel Targeting) the
discovered frequency is transmitted to the transmitter via infra red.
The frequency can also be selected manually.
The menu control is used to access and set the individual parameters.
The colour display shows all parameters such as RF and AF level,
diversity channel, battery status of the transmitter as well as all
menu settings such as frequency, group, channel, squelch, output
level, user name and address.
A sophisticated adjustable squelch system prevents unwanted noise
effectively. The pilot tone-controlled AF mute suppresses inter-
ferences and mutes the receiver when the appropriate transmitter
is switched off.
®
NE 900 Q - Front view
NE 900 Q - Rear view
