Using the Video Switching Tab
p~îáåÖ=mêÉëÉíë
The router's current state (all input and output routes) can be saved to one of eight presets
(or "configuration" files). For example, you can save a preset in which all outputs are
"blanked," or a configuration in which input 1 is routed to all outputs.
On the Video Switching Tab, use the following steps to save a preset:
1.

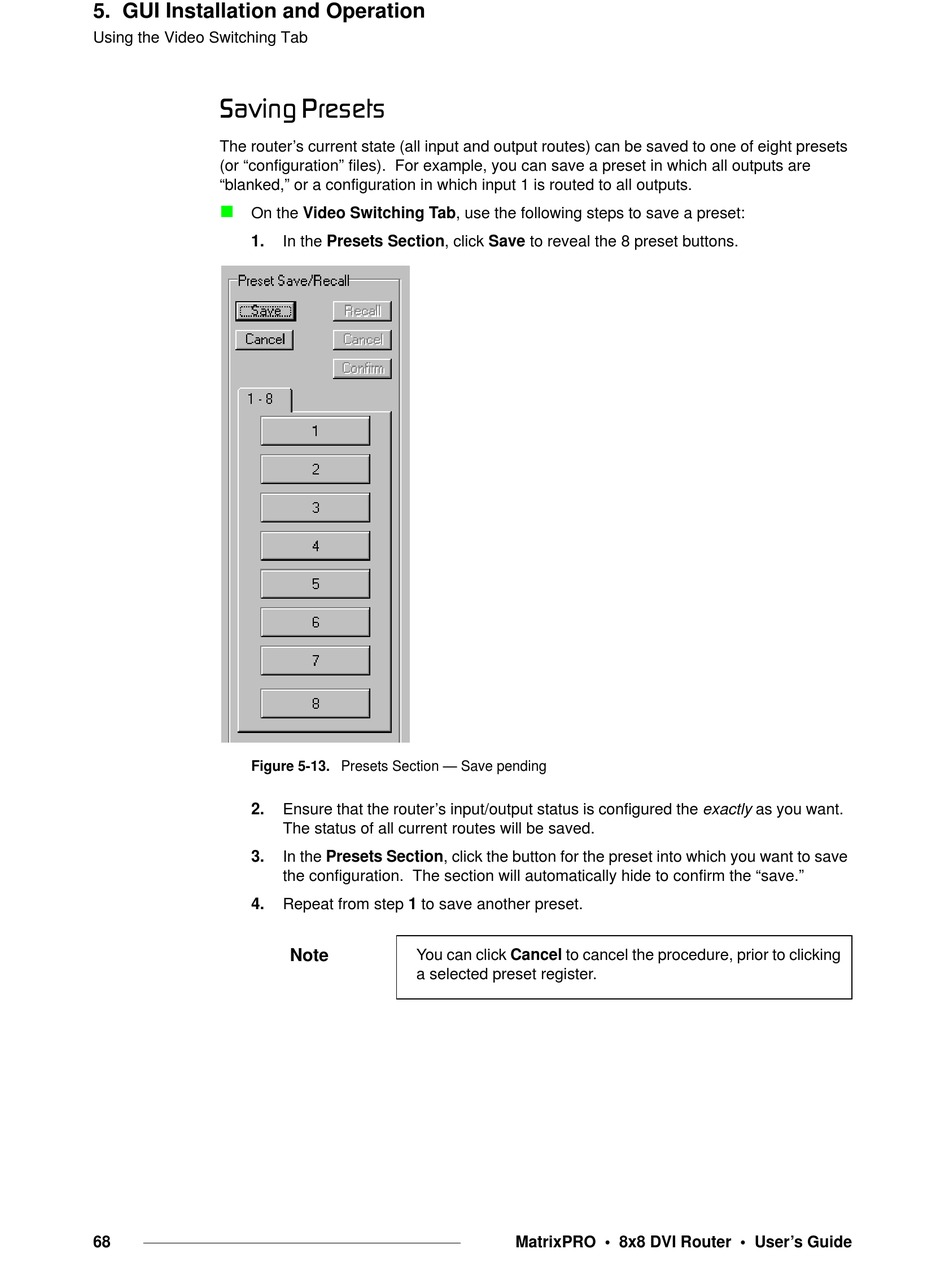

Figure 5-13. Presets Section — Save pending
2.
3.
4.
68
In the Presets Section, click Save to reveal the 8 preset buttons.
Ensure that the router's input/output status is configured the exactly as you want.
The status of all current routes will be saved.
In the Presets Section, click the button for the preset into which you want to save
the configuration. The section will automatically hide to confirm the "save."
Repeat from step 1 to save another preset.
Note You can click Cancel to cancel the procedure, prior to clicking
a selected preset register.
