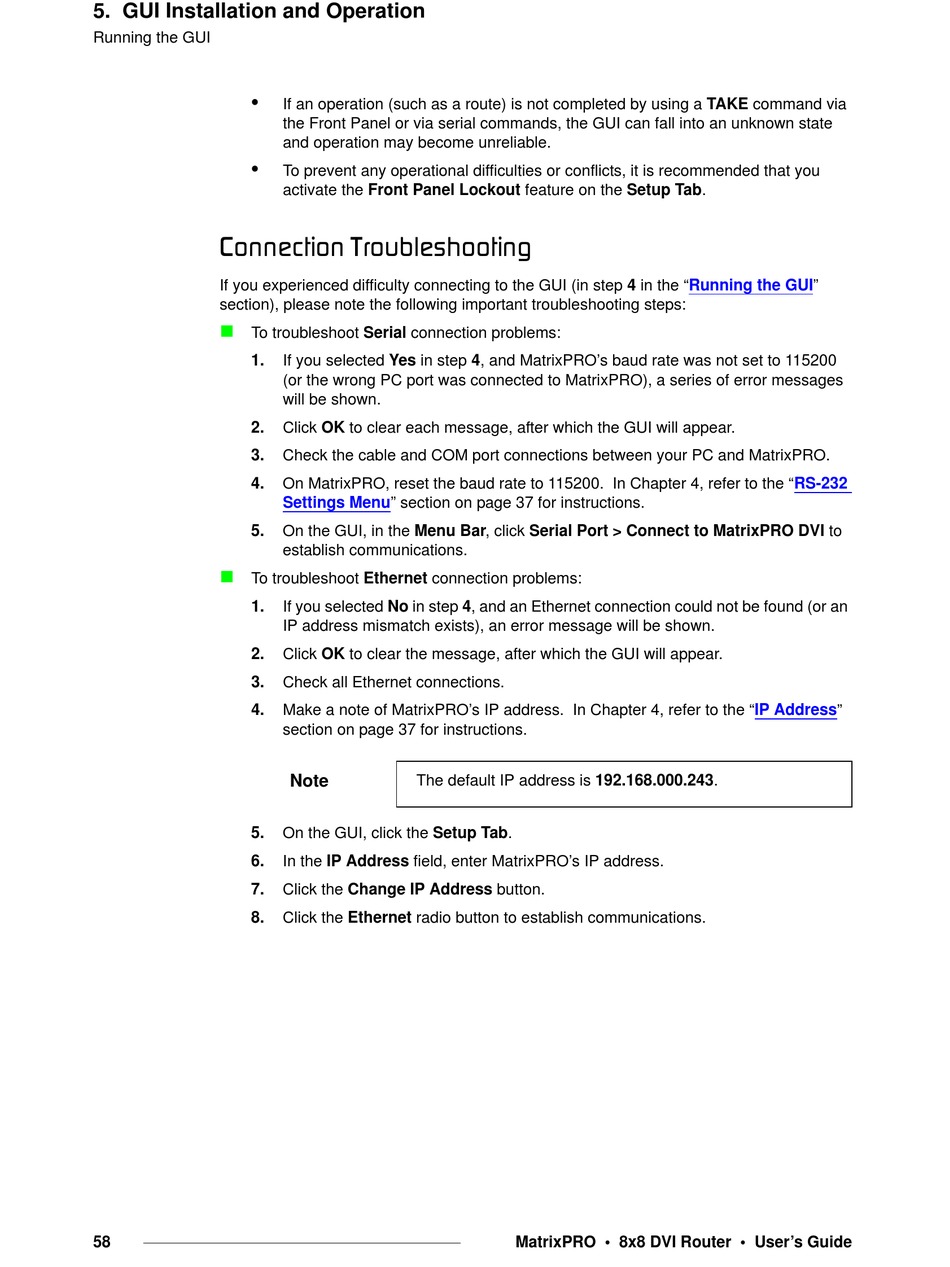

Barco MatrixPRO User Manual page 58

5. GUI Installation and Operation
Running the GUI
•
•
`çååÉÅíáçå=qêçìÄäÉëÜççíáåÖ=
If you experienced difficulty connecting to the GUI (in step 4 in the
section), please note the following important troubleshooting steps:
To troubleshoot Serial connection problems:
1.
2.
3.
4.
5.
To troubleshoot Ethernet connection problems:
1.
2.
3.
4.
5.
6.
7.
8.
58
If an operation (such as a route) is not completed by using a TAKE command via
the Front Panel or via serial commands, the GUI can fall into an unknown state
and operation may become unreliable.
To prevent any operational difficulties or conflicts, it is recommended that you
activate the Front Panel Lockout feature on the Setup Tab.
If you selected Yes in step 4, and MatrixPRO's baud rate was not set to 115200
(or the wrong PC port was connected to MatrixPRO), a series of error messages
will be shown.
Click OK to clear each message, after which the GUI will appear.
Check the cable and COM port connections between your PC and MatrixPRO.
On MatrixPRO, reset the baud rate to 115200. In Chapter 4, refer to the
Settings Menu" section on page 37 for instructions.
On the GUI, in the Menu Bar, click Serial Port > Connect to MatrixPRO DVI to
establish communications.
If you selected No in step 4, and an Ethernet connection could not be found (or an
IP address mismatch exists), an error message will be shown.
Click OK to clear the message, after which the GUI will appear.
Check all Ethernet connections.
Make a note of MatrixPRO's IP address. In Chapter 4, refer to the
section on page 37 for instructions.
Note The default IP address is 192.168.000.243.
On the GUI, click the Setup Tab.
In the IP Address field, enter MatrixPRO's IP address.
Click the Change IP Address button.
Click the Ethernet radio button to establish communications.
"Running the
