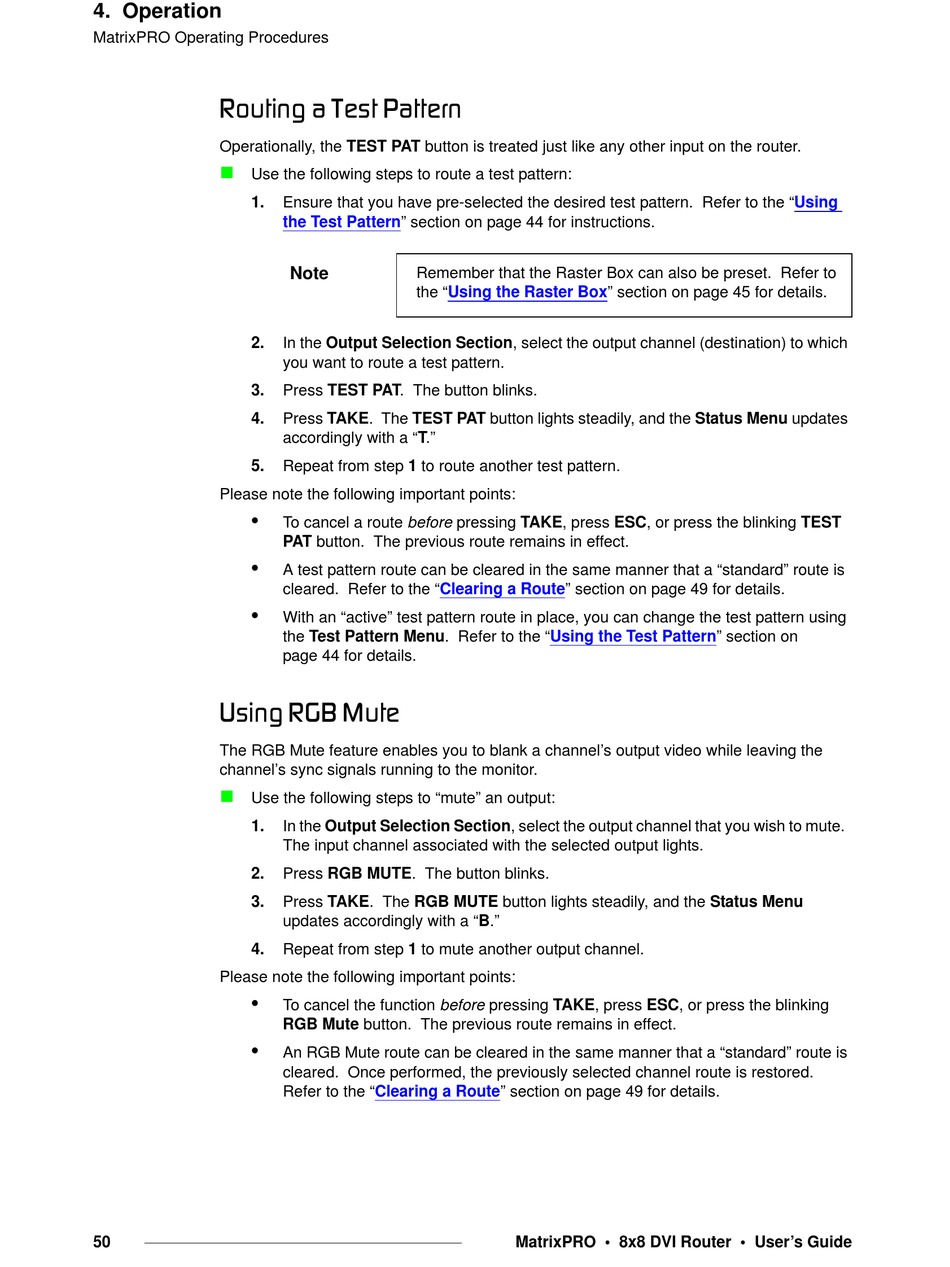

Barco MatrixPRO User Manual page 50

4. Operation
MatrixPRO Operating Procedures
oçìíáåÖ=~=qÉëí=m~ííÉêå
Operationally, the TEST PAT button is treated just like any other input on the router.
Use the following steps to route a test pattern:
1.
2.
3.
4.
5.
Please note the following important points:
•
•
•
rëáåÖ=od_=jìíÉ
The RGB Mute feature enables you to blank a channel's output video while leaving the
channel's sync signals running to the monitor.
Use the following steps to "mute" an output:
1.
2.
3.
4.
Please note the following important points:
•
•
50
Ensure that you have pre-selected the desired test pattern. Refer to the
the Test Pattern" section on page 44 for instructions.
Note Remember that the Raster Box can also be preset. Refer to
the "Using the Raster
In the Output Selection Section, select the output channel (destination) to which
you want to route a test pattern.
Press TEST PAT. The button blinks.
Press TAKE. The TEST PAT button lights steadily, and the Status Menu updates
accordingly with a "T."
Repeat from step 1 to route another test pattern.
To cancel a route before pressing TAKE, press ESC, or press the blinking TEST
PAT button. The previous route remains in effect.
A test pattern route can be cleared in the same manner that a "standard" route is
cleared. Refer to the "Clearing a
With an "active" test pattern route in place, you can change the test pattern using
the Test Pattern Menu. Refer to the
page 44 for details.
In the Output Selection Section, select the output channel that you wish to mute.
The input channel associated with the selected output lights.
Press RGB MUTE. The button blinks.
Press TAKE. The RGB MUTE button lights steadily, and the Status Menu
updates accordingly with a "B."
Repeat from step 1 to mute another output channel.
To cancel the function before pressing TAKE, press ESC, or press the blinking
RGB Mute button. The previous route remains in effect.
An RGB Mute route can be cleared in the same manner that a "standard" route is
cleared. Once performed, the previously selected channel route is restored.
Refer to the "Clearing a Route" section on page 49 for details.
Box" section on page 45 for details.
Route" section on page 49 for details.
"Using the Test Pattern" section on
MatrixPRO • 8x8 DVI Router • User's Guide
"Using
