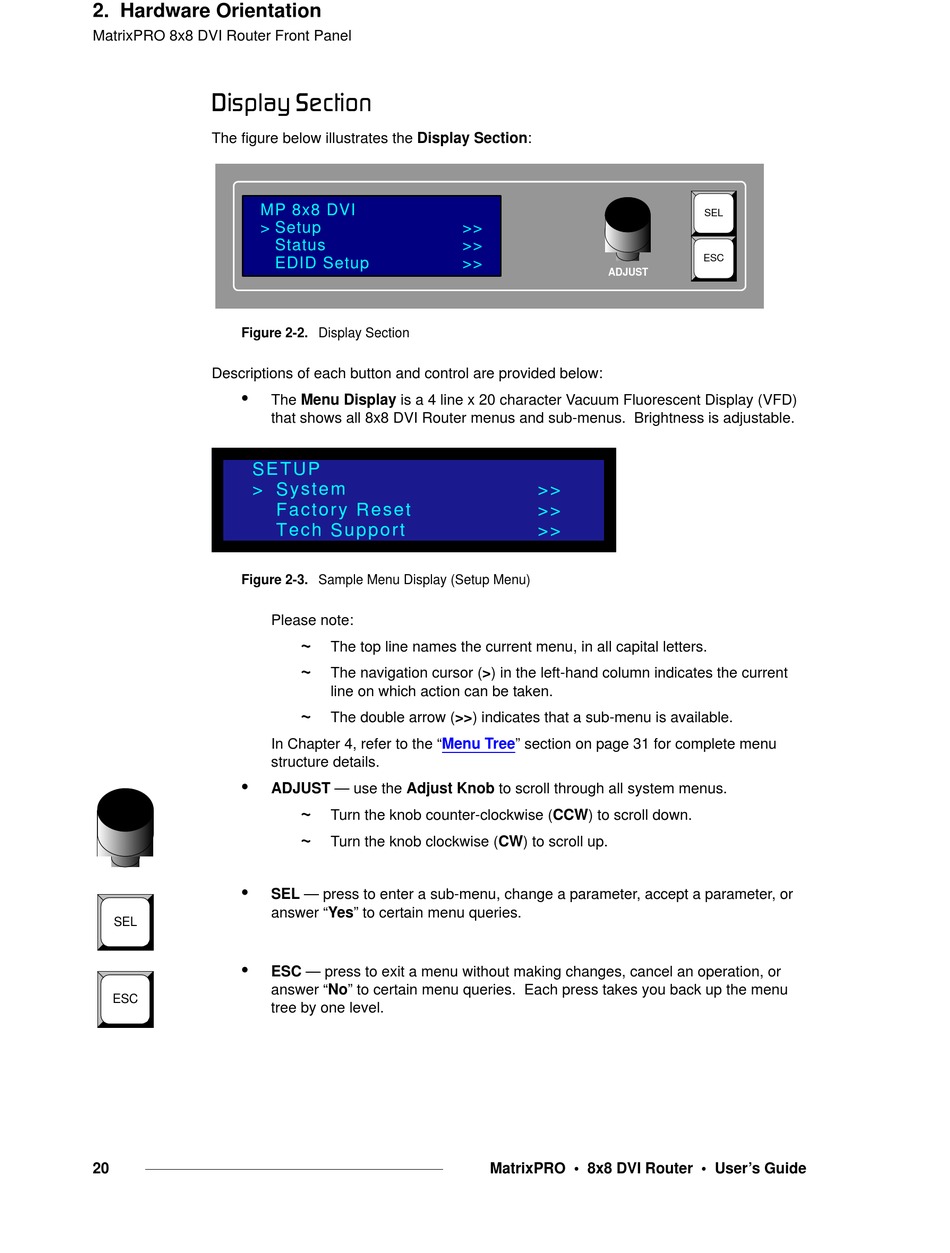

2. Hardware Orientation
MatrixPRO 8x8 DVI Router Front Panel
aáëéä~ó=pÉÅíáçå
The figure below illustrates the Display Section:
MP 8x8 DVI
> Setup
Figure 2-2. Display Section
Descriptions of each button and control are provided below:
•
SE TUP
> S y s t e m
Figure 2-3. Sample Menu Display (Setup Menu)
•
•
SEL
•
ESC
20
Status
EDID Setup
The Menu Display is a 4 line x 20 character Vacuum Fluorescent Display (VFD)
that shows all 8x8 DVI Router menus and sub-menus. Brightness is adjustable.
F a c t o r y R e s e t
Tech Suppo rt
Please note:
~
The top line names the current menu, in all capital letters.
~
The navigation cursor (>) in the left-hand column indicates the current
line on which action can be taken.
~
The double arrow (>>) indicates that a sub-menu is available.
In Chapter 4, refer to the "Menu
structure details.
ADJUST — use the Adjust Knob to scroll through all system menus.
~
Turn the knob counter-clockwise (CCW) to scroll down.
~
Turn the knob clockwise (CW) to scroll up.
SEL — press to enter a sub-menu, change a parameter, accept a parameter, or
answer "Yes" to certain menu queries.
ESC — press to exit a menu without making changes, cancel an operation, or
answer "No" to certain menu queries. Each press takes you back up the menu
tree by one level.
>>
>>
>>
ADJUST
>>
>>
>>
Tree" section on page 31 for complete menu
