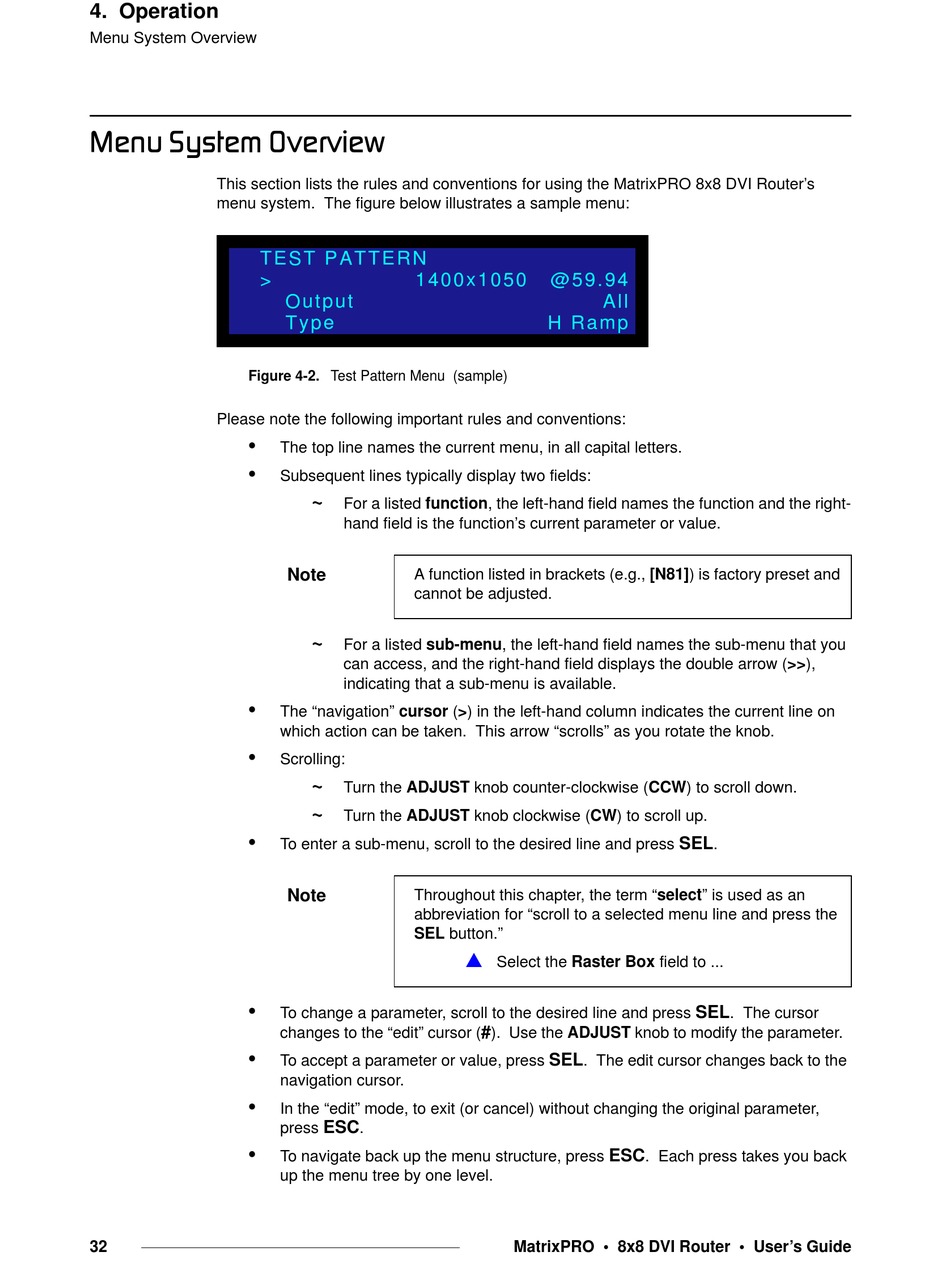

Barco MatrixPRO User Manual page 32

4. Operation
Menu System Overview
jÉåì=póëíÉã=lîÉêîáÉï
This section lists the rules and conventions for using the MatrixPRO 8x8 DVI Router's
menu system. The figure below illustrates a sample menu:
TE ST P AT TERN
>
Figure 4-2. Test Pattern Menu (sample)
Please note the following important rules and conventions:
•
•
•
•
•
•
•
•
•
32
1400 x1 050
Output
T yp e
The top line names the current menu, in all capital letters.
Subsequent lines typically display two fields:
~
For a listed function, the left-hand field names the function and the right-
hand field is the function's current parameter or value.
Note A function listed in brackets (e.g., [N81]) is factory preset and
cannot be adjusted.
~
For a listed sub-menu, the left-hand field names the sub-menu that you
can access, and the right-hand field displays the double arrow (>>),
indicating that a sub-menu is available.
The "navigation" cursor (>) in the left-hand column indicates the current line on
which action can be taken. This arrow "scrolls" as you rotate the knob.
Scrolling:
~
Turn the ADJUST knob counter-clockwise (CCW) to scroll down.
~
Turn the ADJUST knob clockwise (CW) to scroll up.
To enter a sub-menu, scroll to the desired line and press
Note Throughout this chapter, the term "select" is used as an
abbreviation for "scroll to a selected menu line and press the
SEL button."
To change a parameter, scroll to the desired line and press
changes to the "edit" cursor (
To accept a parameter or value, press
navigation cursor.
In the "edit" mode, to exit (or cancel) without changing the original parameter,
ESC
press .
To navigate back up the menu structure, press
up the menu tree by one level.
@59. 94
All
H R amp
Select the Raster Box field to ...
#
). Use the ADJUST knob to modify the parameter.
SEL
. The edit cursor changes back to the
ESC
. Each press takes you back
MatrixPRO • 8x8 DVI Router • User's Guide
SEL
.
SEL
. The cursor
