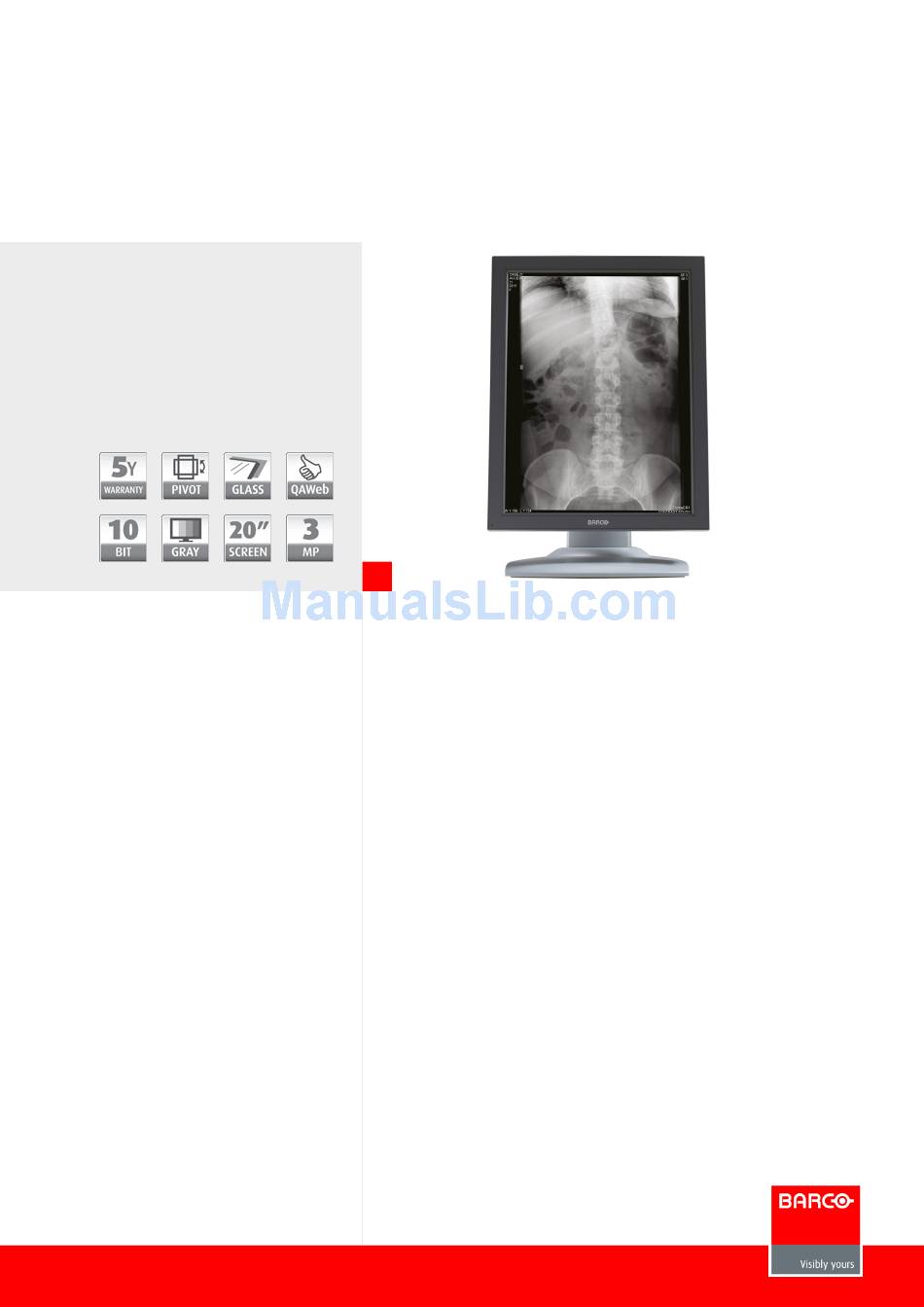

Nio is Barco's flexible, industrystandard
display solution for diagnostic imaging. Nio
3MP provides image crispness and an
excellent viewing angle in a 2048 x 1536
resolution.
3 MegaPixel diagnostic grayscale display system
Highquality imaging
The Nio 3MP brings high brightness, exceptional crispness and an excellent
viewing angle to your readings. Backlight Output Stabilization (BLOS)
technology guarantees fast powerup and continuously stabilizes the
luminance output of the LCD's backlight.
Fully transparent calibration and QA
Barco's Nio 3MP is bundled with MediCal QAWeb for automated DICOM
calibration, Quality Assurance, display asset management, problem solving
and reporting, guaranteeing maximum diagnostic confidence and uptime of
your PACS display systems.
The Nio 3MP display system includes:
⋅ A 3 MegaPixel flat panel display
⋅ MediCal QAWeb software for automated calibration and Quality Assurance
⋅ A highspeed, highperformance display controller: check the compatibility
matrix
Nio 3MP (E3620 MA)
Advertisement
Related Manuals for Barco Nio 3MP
Summary of Contents for Barco Nio 3MP
- Page 1 2048 x 1536 luminance output of the LCD’s backlight. resolution. Fully transparent calibration and QA Barco's Nio 3MP is bundled with MediCal QAWeb for automated DICOM calibration, Quality Assurance, display asset management, problem solving and reporting, guaranteeing maximum diagnostic confidence and uptime of your PACS display systems.
- Page 2 1 upstream, 2 downstream USB standard Power consumption (nominal) Power save mode Dimensions with stand (W x H x D) Portrait: 382 x 577~637 x 249 mm Landscape: 488 x 472~532 x 249 mm Dimensions w/o stand (W x H x D) Portrait: 382x 488 x 114 mm Landscape: 488 x 382 x x 114 mm Net weight with stand 11.5 kg Mounting standard VESA (100 mm) Screen protection Protective, nonreflective PMMA cover Recommended modalities CT, MR, US, DR, CR, NM, Film Certifications UL 606011 1ST EDITION, CAN/ CSAC22.2 NO. 601.1M90, UL 609501 1ST EDITION, CSA C22.2 NO. 60950103 1ST EDITION, IEC 606011 2ND ED:1988 + A1:1991 + A2:1995, IEC 609501:2001 1ST EDITION, CE 2004/108/EC, CE 93/42/EC, A1:2007/47/EC CLASS IIB, DEMKO EN 606011, DEMKO EN 609501, CCC GB92541998 + GB49432001 + GB17625.12003, VCCI, FCC class B, BSMI, KETI, FDA 510K, Rohs Supplied accessories Getting Started Guide QuickInstallation Sheet Video cable (DVI Dual Link) Main cables (UK, European (CEBEC/KEMA), USA (UL/CSA; adaptor plug NEMA 515P), Chinese (CCC)) External power supply Optional accessories QA software MediCal QAWeb Warranty 5 years Generated on: 18 May 2014 Technical specifications are subject to change without prior notice. Please check www.barco.com for the latest information.
