Policy Routing Configuration

The Policy Routing Configuration enables you to configure policy routing and QoS.

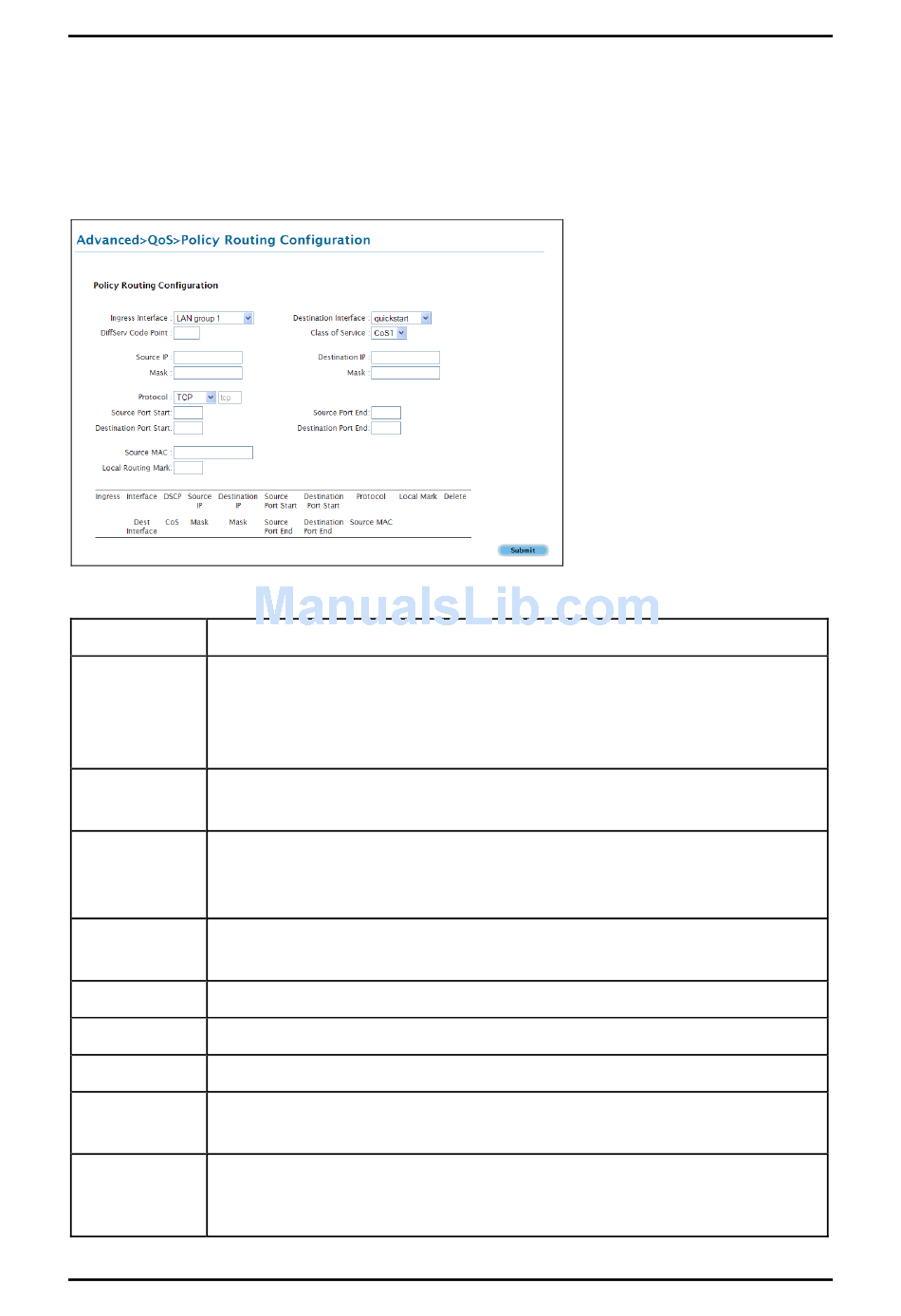

Policy Routing Configuration
Field Description
Ingress Inter The incoming traffic interface for a Policy Routing rule. Selections include LAN
face interfaces, WAN interfaces, Locally generated (traffic), and not applicable. Examples
of Locally generated traffic are: voice packets, packets generated by applications
such as DNS, DHCP, etc.
Destination The outgoing traffic interfaces for a Policy Routing rule. Selections include LAN
Interface Interfaces and WAN interfaces.
DiffServ Code The diffServ code point (DSCP) field value ranges from 1 to 255. This field cannot be
Point configured alone, additional fields like IP, Source MAC, and/or Ingress Interface
should be configured.
Class of Service The selections are (in the order of priority): CoS1, CoS2, CoS3, CoS4, CoS5, CoS6, and
N/A.
Source IP The IP address of the traffic source.
Mask The source IP Netmask. This field is required if the source IP has been entered.
Destination IP The IP address of the traffic destination.
Mask The Netmask of the destination. This field is required if the destination IP has been
entered.
Protocol The selections are TCP, UDP, ICMP, Specify, and none. If you choose Specify, you need
to enter the protocol number in the box next to the Protocol field. This field cannot
be configured alone, additional fields like IP, Source MAC, and/or Ingress Interface
