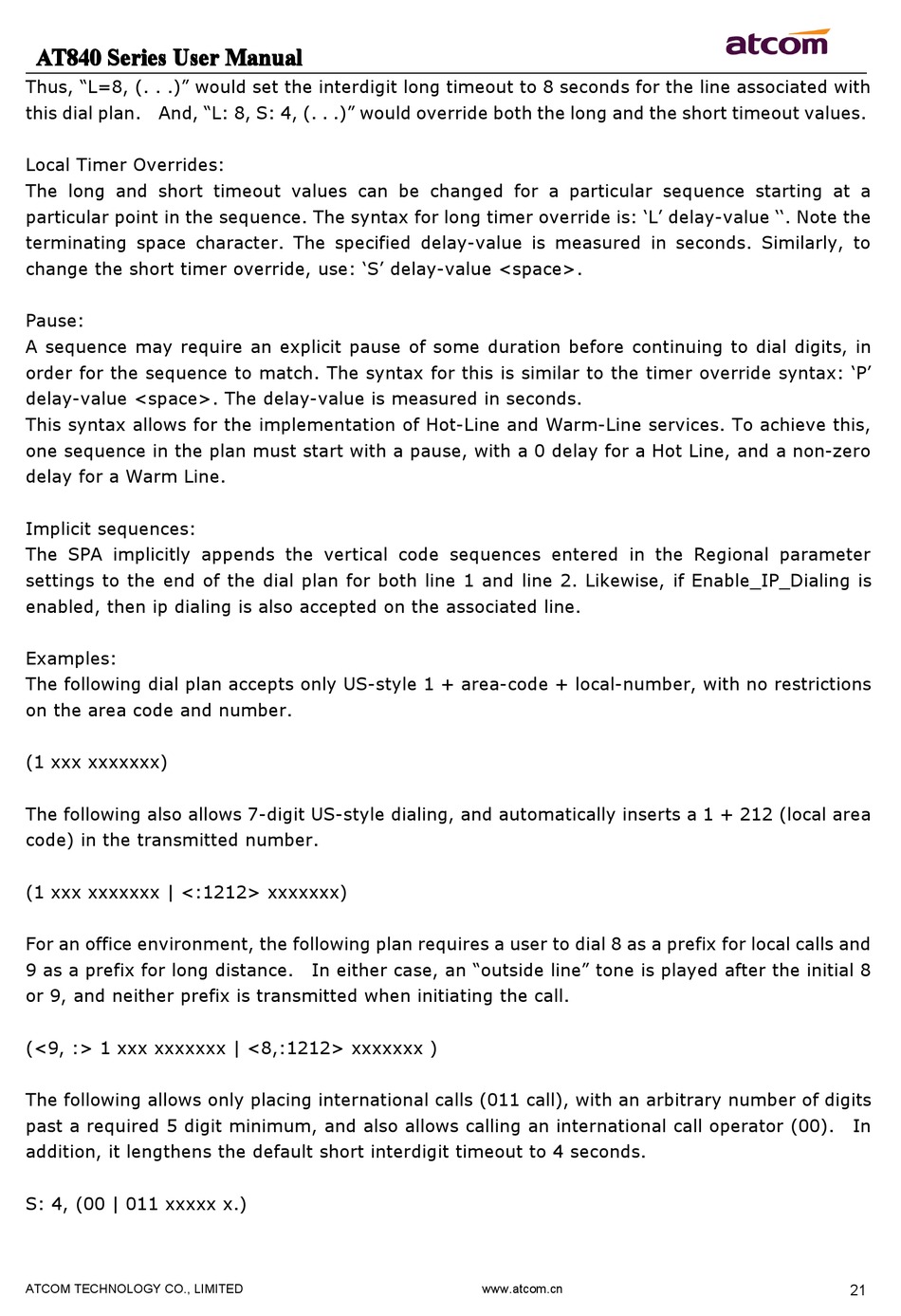

ATCOM AT840 series User Manual page 21

AT8 AT8 AT8 AT84 4 4 4 0 0 0 0 Series Series Series Series User User User User Manual
Thus, "L=8, (. . .)" would set the interdigit long timeout to 8 seconds for the line associated with
this dial plan. And, "L: 8, S: 4, (. . .)" would override both the long and the short timeout values.
Local Timer Overrides:
The long and short timeout values can be changed for a particular sequence starting at a
particular point in the sequence. The syntax for long timer override is: 'L' delay-value ''. Note the
terminating space character. The specified delay-value is measured in seconds. Similarly, to
change the short timer override, use: 'S' delay-value <space>.
Pause:
A sequence may require an explicit pause of some duration before continuing to dial digits, in
order for the sequence to match. The syntax for this is similar to the timer override syntax: 'P'
delay-value <space>. The delay-value is measured in seconds.
This syntax allows for the implementation of Hot-Line and Warm-Line services. To achieve this,
one sequence in the plan must start with a pause, with a 0 delay for a Hot Line, and a non-zero
delay for a Warm Line.
Implicit sequences:
The SPA implicitly appends the vertical code sequences entered in the Regional parameter
settings to the end of the dial plan for both line 1 and line 2. Likewise, if Enable_IP_Dialing is
enabled, then ip dialing is also accepted on the associated line.
Examples:
The following dial plan accepts only US-style 1 + area-code + local-number, with no restrictions
on the area code and number.
(1 xxx xxxxxxx)
The following also allows 7-digit US-style dialing, and automatically inserts a 1 + 212 (local area
code) in the transmitted number.
(1 xxx xxxxxxx | <:1212> xxxxxxx)
For an office environment, the following plan requires a user to dial 8 as a prefix for local calls and
9 as a prefix for long distance. In either case, an "outside line" tone is played after the initial 8
or 9, and neither prefix is transmitted when initiating the call.
(<9, :> 1 xxx xxxxxxx | <8,:1212> xxxxxxx )
The following allows only placing international calls (011 call), with an arbitrary number of digits
past a required 5 digit minimum, and also allows calling an international call operator (00).
addition, it lengthens the default short interdigit timeout to 4 seconds.
S: 4, (00 | 011 xxxxx x.)
