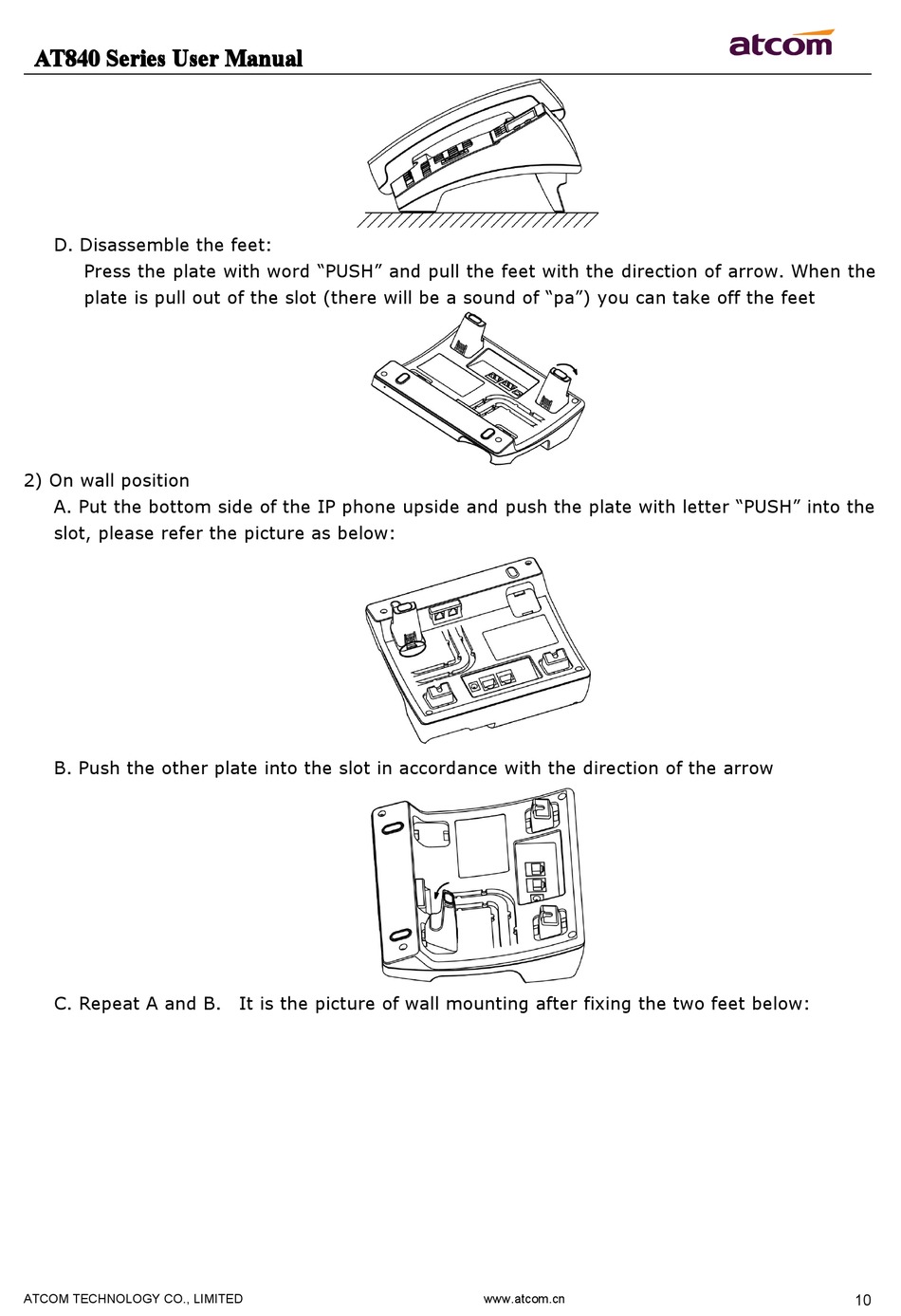

D. Disassemble the feet:
Press the plate with word "PUSH" and pull the feet with the direction of arrow. When the
plate is pull out of the slot (there will be a sound of "pa") you can take off the feet
2) On wall position
A. Put the bottom side of the IP phone upside and push the plate with letter "PUSH" into the
slot, please refer the picture as below:
B. Push the other plate into the slot in accordance with the direction of the arrow
C. Repeat A and B. It is the picture of wall mounting after fixing the two feet below:
