SmartNode 4552

The SmartNode™ 4552 is the single-box CPE solution for integrating data access with voice
& fax over any broadband access network. Combining two simultaneous voice/fax gateway
calls with a feature rich broadband QoS IP Router, the SmartNode 4552 is perfect for the
SoHo, SME and ITSP user requiring cost-effective digital voice and data access.
The SmartNode 4552 enables integration of ISDN network
users into their local phone service, a remote PBX and the
data/VPN network through a single tightly integrated
access device.
Connecting to the local ISDN Phone as well as the local
PSTN port, Patton's SessionRouter™ technology links any
standard ISDN telephone or PBX to VoIP while still connect-

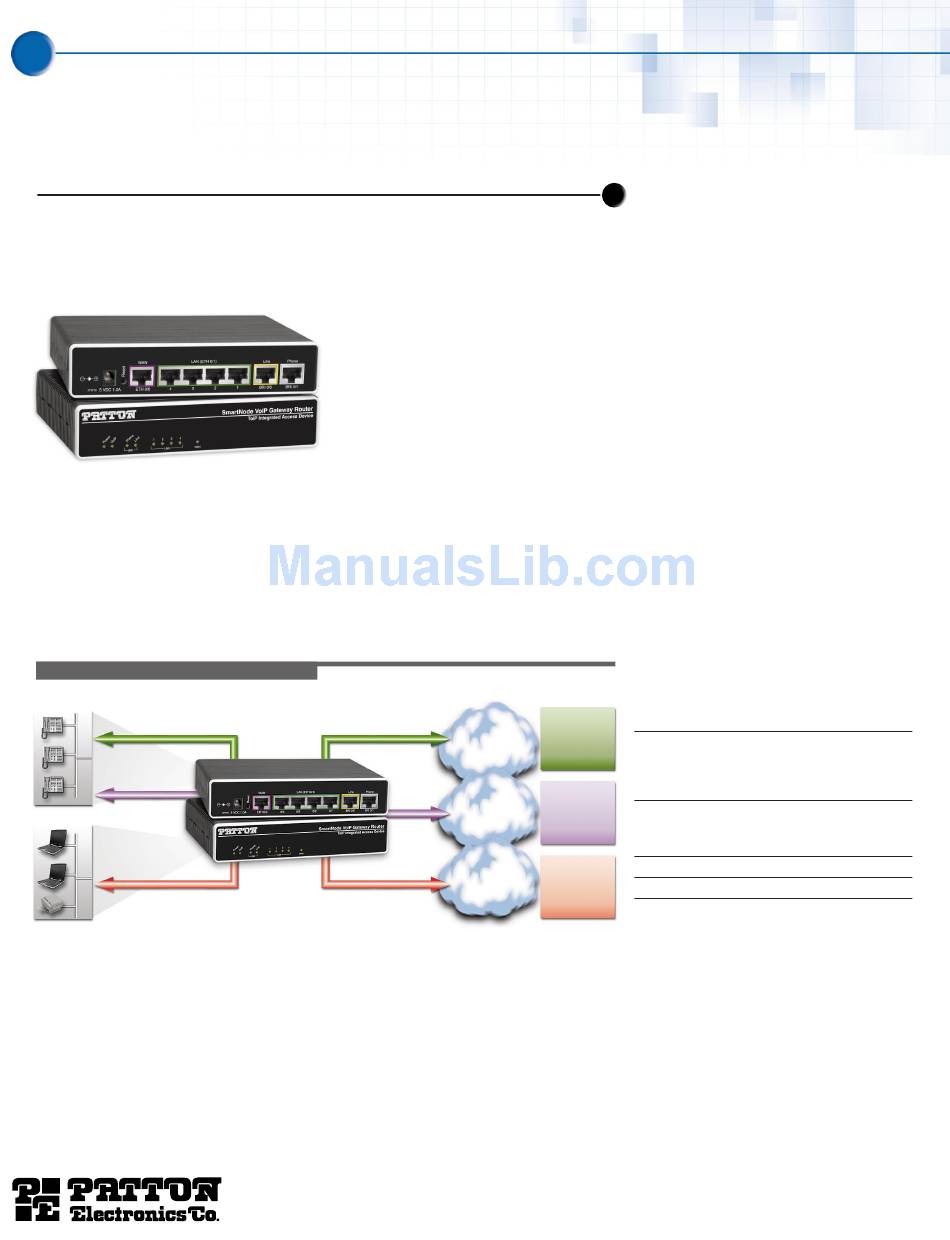

Network Integration
Regular Telephone Calls
VoIP
LAN
LAN
S P E C I F I C AT I O N S
LAN and IP Services: 4-port IP Quality of Service: Voice pri-
10/100Base-T LAN Switch • Auto-MDI-X ority, DownStreamQoS • traffic manage-
• IPv4, RIPv2, ICMP • Dynamic & static ment, shaping policing • IEEE 802.1p,
NAT & NAPT • ACL firewall • DNS, TOS, DiffServ labeling • IEEE 802.1Q,
DynDNS • DHCP Server • SNTP Client • VLAN tag insertion/deletion 4,096
Optional IPSec VPN (DES, 3DES,AES)
Management: Web-based GUI •
WAN Connectivity: 10/100Base-T Fully documented CLI • Telnet & HTTP
Ethernet WAN • Auto-MDI-X • DHCP access • TFTP configuration up- & down-
Client • PPPoE Client (multi-session) • IP load • TFTP firmware upgrade • SNMPv1
Multi-Netting agent, MIB II and enterprise MIB • Built-in
ing to legacy PSTN services. Built-in Lifeline support ensures
phone connection to the PSTN in the event of failure.
Gateway functions use standard CODECs such as G.723 and
G.729 as well as industry standard SIP, H.323 and
MGCP/IUA to ensure seamless connection and compatibility
for all voice services.
Broadband network connectivity integrates with any fixed IP,
DHCP or PPPoE service. An integrated 10/100 Ethernet LAN
switch, with advanced routing features such as NAT,
Firewall/ACL, DynDNS as well as optional IPSec VPN, fulfills
the requirements of demanding network users.
Quality of Service (QoS) features complete the offering with
advanced voice prioritization and traffic management. Patton's
patent-pending DownStreamQoS™ ensures voice without
interruptions even over best-effort Internet connections.
SN4552

Internet Access

diagnostic tools • Auto-provisioning—
configuration and firmware
ISDN Specification: 2 ports Euro-
ISDN BRI/So RJ-45 • 1 NT port/1 TE port
• DSS-1, Q.921, Q.931 • Point-point and
point-multipoint • Lifeline bypass relay TE
port to NT port • Optional QSIG support
Voice Signaling: SIPv2 • H.323v4
• MGCP/IUA • SIP call transfer, redirect
• Overlap or en-bloc dialing • DTMF in-
Sales: +1 301-975-1000
FAST Delivery From Your AUTHORIZED DISTRIBUTOR!
Fax: 301.869.9293 • E-mail: sales@patton.com
Still make incom-
ing & outgoing
PSTN
PSTN calls with
one phone
Bypass the PSTN
VoIP/
for lowest cost
Packet Voice
access using VoIP
Complete data
access connects
Internet
your LAN to the
WAN
band & out-of-band • configurable call
progress tones
Fax & Modem Support: T.38 fax
over IP • Fax relay & bypass • modem
bypass
Call Routing & Services: Regular
expression number matching • regular
expression number manipulation • least
cost routing • Number blocking • short-
dialing • digit collection • distribution- &
hunt-groups • 2nd call offering
F E A T U R E S & B E N E F I T S
2-channel VoIP gateway and router & dual ISDN BRI/S
ports & lifeline bypass relay TE port to NT port support.
Transparent Telephony Features—SessionRouter™ with
enhanced circuit-switched call routing allows user pro-
grammable call handling based on hunt groups,
caller/called ID, and time of day. Pass local PSTN call
through without packet conversion.
SIP, H.323, and MGCP/IUA—All SmartNodes support
industry standard call-control signaling with standards-
based compatibility
Complete Access Routing—Fast-Ethernet WAN and inte-
grated 4-port 10/100 LAN switch with auto MDI-X. Access
router with NAT, Firewall, PPPoE, DHCP, and DynDNS
Quality of Service—Advanced adaptive traffic manage-
ment and shaping for maximum voice quality. Voice and
data prioritization and DownStreamQoS™
Management & Provisioning—Built-in Web based man-
agement, SNMP, Command Line Interface and Auto-
Provisioning for automated configuration distribution and
software upgrades
O R D E R I N G I N F O R M A T I O N
SN4552/2BIS/EUI*: ISDN BRI VoIP SoHo Router, 2-port,
10/100Base-T WAN, 4-port 10/100Base-T switch 100–240 VAC
external power supply
SN4562/2BIS/EUI: SmartNode ISDN Voice over VPN Router, 2 port,
10/100Base-T WAN, 4-port 10/100Base-T LAN switch, 100-240
VAC external power supply. Includes VPN license key for IPSec
VPN, IKE and Voice-Over-VPN. Hardware accelerated cryptography.
Options & Accessories
PM-BRI-EXT: External S-Bus Phantom-Power Supply 40 VDC for
Phone only (not required)
SNSW-VPN1: License Key for IPSec VPN support (DES, 3DES, AES)
SNSW-QSIG1: License Key for QSIG support
* Standard software load includes Routing License and H.323 call-control. SIP is avail-
able free of charge. Please request SIP at time of ordering or simply download from
our upgrades site at http://upgrades.patton.com.
Voice Processing: G.711µ/A-law 12.7D cm) • Weight: < 15.9 oz (450 g) •
• G.723.1 (5.3/6.3 kbps) • G.729,
Power Consumption < 4W
G.729a, G.729ab (8 kbps) • G.726 ADPCM
Environment: Temp.: 32–104°F
(16 ,24, 32, 40 kbps) • G.168 echo cancel-
(0–40°C) • Humidity: up to 90%, non-
lation (25ms) • transparent ISDN data •
condensing
silence suppression & comfort noise •
Compliance: FCC Part 15 Class A
adaptive & configurable dejitter buffer •
(US EMC) • CE per RTTE 99/5/EC (EMC
configurable packet length
and LVD) • Safety - EN60950 • TBR-3
Power & Packaging: Dimensions:
4.2W x 1.5H x 5.0D in. (10.6W x 3.9H x (ISDN BRI/So)
