2 . 2 . 3 P P P o E
2 . 2 . 3 P P P o E
This mode is used for most of DSL modem users. All local users can share one PPPoE
connection to access the Internet. Your service provider will give you the user name, password,
and authentication mode for PPPoE settings.

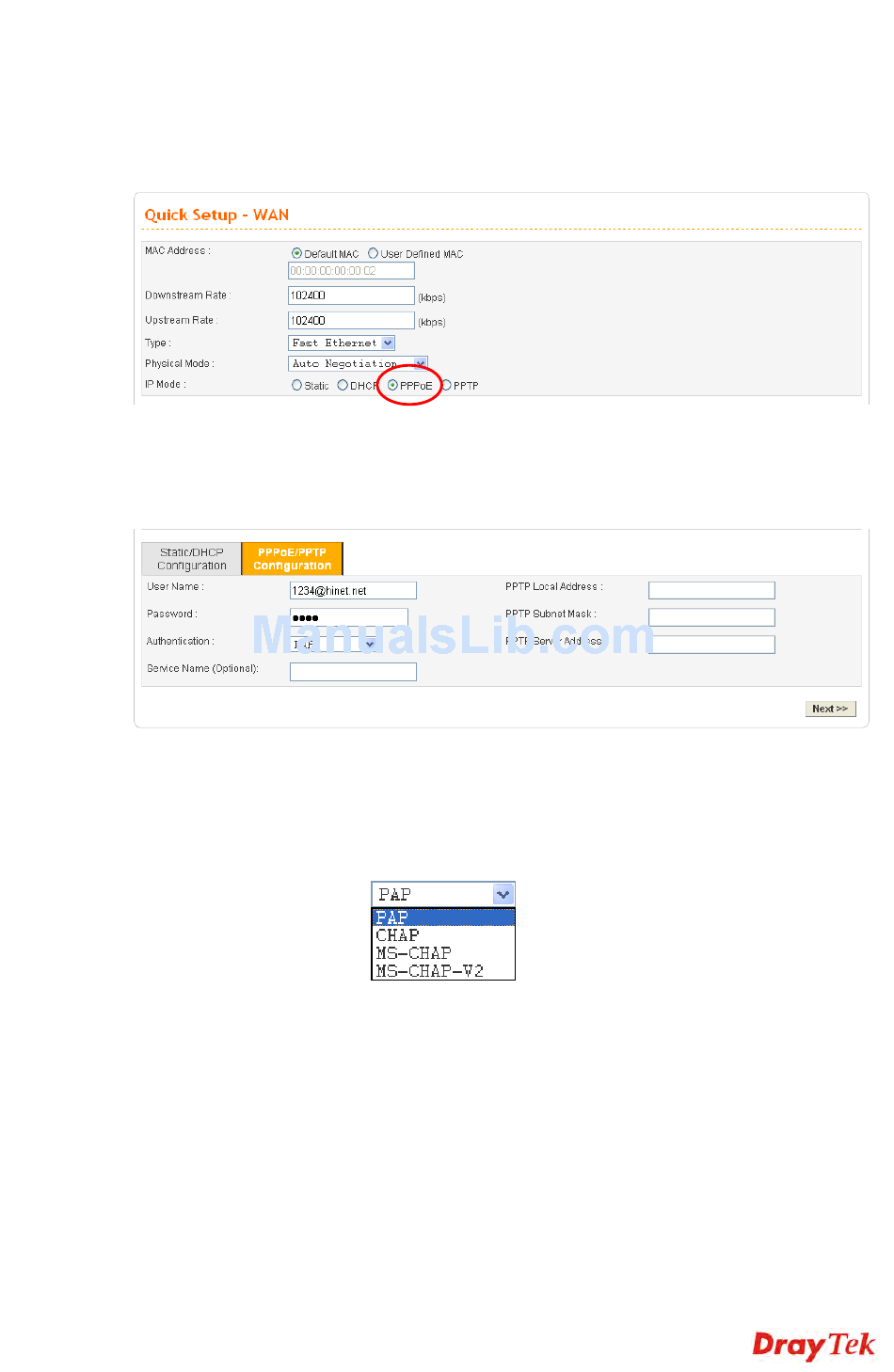

If your ISP provides you the PPPoE (Point-to-Point Protocol over Ethernet) connection,
please select PPPoE for this router to get the following page. Enter the username and
password provided by your ISP on the web page.
User Name
Password
Authentication
Service Name
After setting up the PPPoE, click Next to setup the LAN interface continuously.
Vigor3300 Series User's Guide
Assign a specific valid user name provided by the ISP.
Assign a valid password provided by the ISP.
Select PAP, CHAP, MS-CHAP or MS-CHAP-V2 protocol for
PPP authentication. The default value is PAP.
Assign a service name required from ISP service.
19
