3 . 1 . 8 D i a g n o
3 . 1 . 8 D i a g n o
In some cases, a user may need to know some information about the router, such as static or
dynamic databases, or other routing information. The Vigor3300 Series supports four
functions, Routing Table, ARP Cache Table, DHCP Assignment Table, and NAT Active
Sessions Table for the user to review such information.

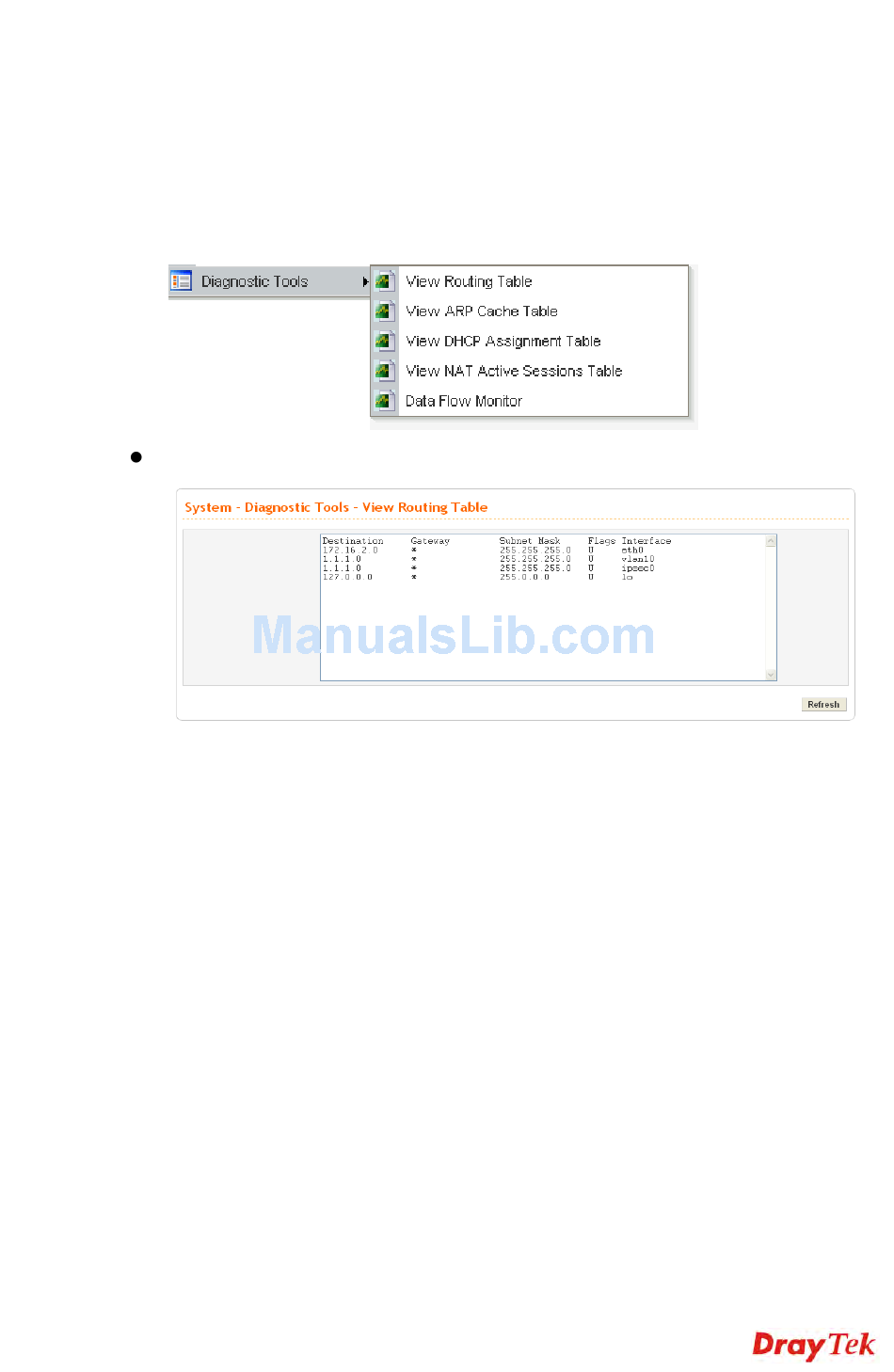

In the System group, click the Diagnostic Tools option
Select View Routing Table to get the following page:
Destination
Gateway
Subnet Mask
Flags
Interface
Refresh
Vigor3300 Series User's Guide
s t i c T o o l s
s t i c T o o l s
Display the destination IP address for various routings.
Display the default gateway.
Display the subnet mask for various routings.
Display the status of the routing entries.
Denoted by eth0 if it is a LAN interface and eth1 if it is a
WAN interface.
Click Refresh to re-display this web page for getting newest
routing information.
35
