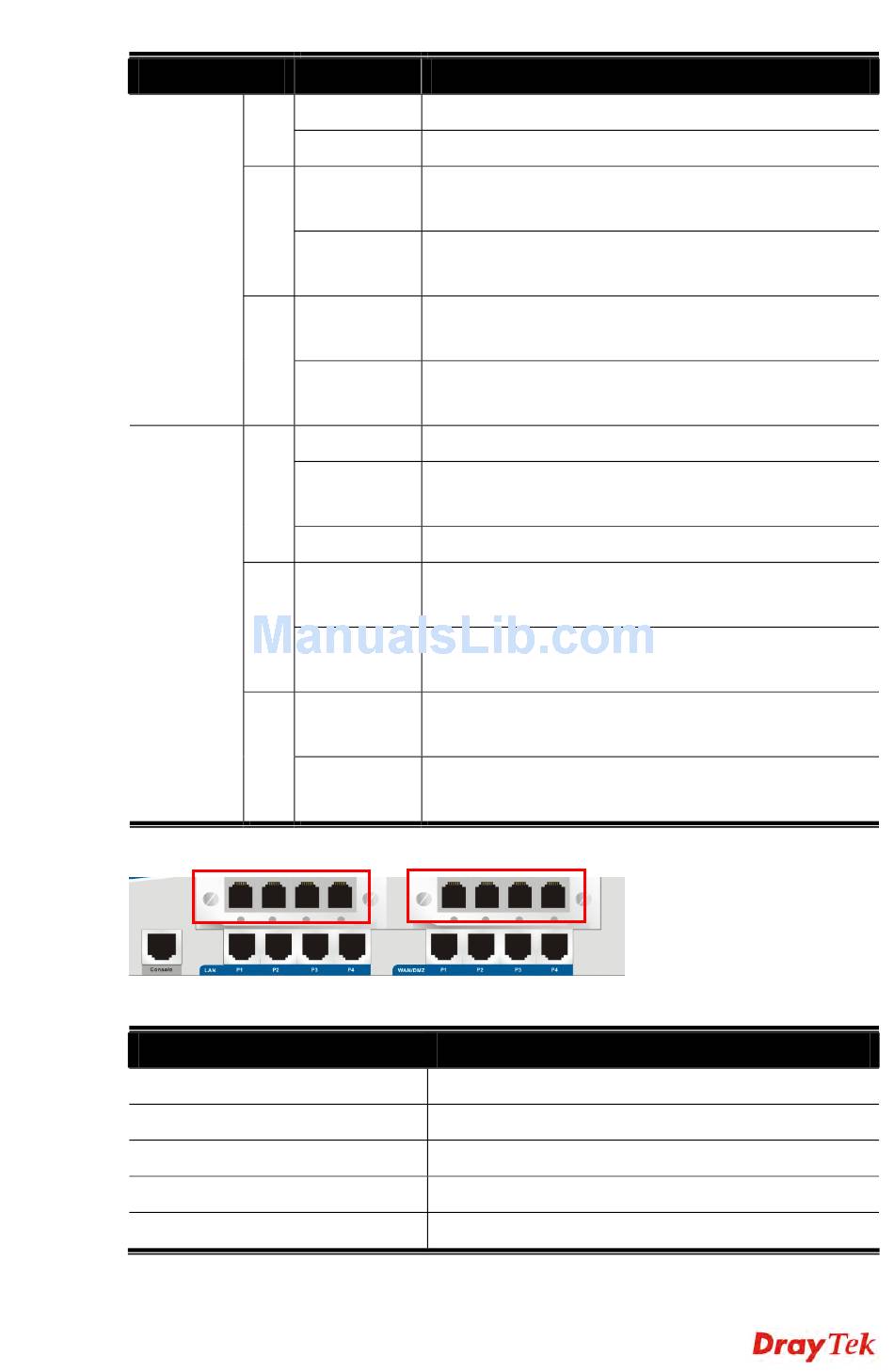

LED
LAN
(1, 2, 3, 4)
WAN/DMZ
(1, 2, 3, 4)
Interface
Console
LAN (P1 ~ P4)
WAN/DMZ (P1 ~ P4)
FXS
FXO
Vigor3300 Series User's Guide
Status
LNK
On
Off
100 On
Off
FDX On
Off
LNK
On
Blinking
Off
100 On
Off
FDX On
Off
FXS
Explanation
The Ethernet link is established on corresponding port.
No Ethernet link is established.
It means that a normal 100 Mbps connection is
through its corresponding port.
It means that a normal 10 Mbps connection is through
its corresponding port.
It means a full duplex connection on corresponding
port.
It means a half duplex connection on corresponding
port.
The Ethernet link is established.
The data transmission is done through the
corresponding port.
No Ethernet link is established.
It means that a normal 100Mbps connection is through
its corresponding port.
It means that a normal 10Mbps connection is through
its corresponding port.
It means a full duplex connection on corresponding
port.
It means a half duplex connection on corresponding
port.
FXO
Description
Provided for technician use.
Connecter for local networked devices.
Connecter for remote networked devices.
Connecter for telephone set.
Connecter for FXS interface of PABX.
3
