Surround Display
SurroundScope detects the multi-channel for-
mat of the track and displays each channel in
the signal in a circle around the Surround Dis-
play.

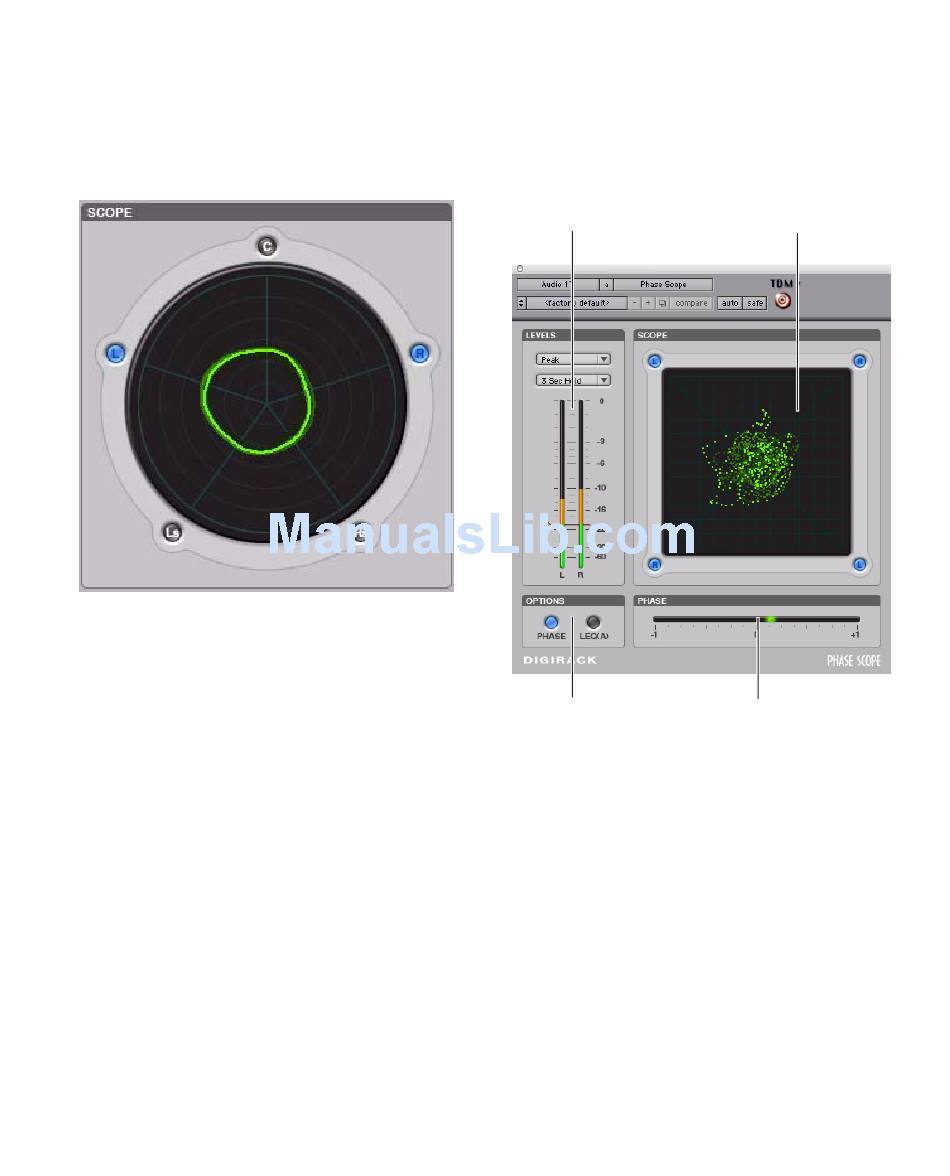

SurroundScope Surround Display (5.0 shown)
The Surround Display generates a composite im-
age that indicates relative signal strength in the
displayed channels.
A circle in the center of the display indicates a
◆
surround signal that is panned equally to all
channels.
An irregular shape that is closer to one side of
◆
the display indicates that the channels on that
side have a stronger signal.
A teardrop shape that points toward a single
◆
channel indicates that the signal is panned to
that channel.
PhaseScope
PhaseScope is a multichannel metering plug-in
that provides signal level and phase information
for stereo tracks only. (Mono and LCR or greater
multichannel tracks are not supported.)
Meters
Display Options
PhaseScope
Chapter 6: DigiRack Real-Time TDM and RTAS Plug-ins
Lissajous Meter Display
Phase/Leq(A) Display
