Low Shelf/Low Peak
The Low Shelf/Peak band is switchable between
Low Shelf EQ and Low Peak EQ functions. By de-
fault, this band is set to Low Shelf.
Low-Shelf EQ Boosts or cuts frequencies at and
below the Frequency setting. The amount of
boost or cut is determined by the Gain setting.
The Q setting determines the shape of the shelv-
ing curve.
Low Peak EQ Boosts or cuts a band of frequen-
cies centered around the Frequency setting. The
width of the affected band is determined by the
Q setting.
Low Shelf EQ
button
Q
control
Band
Enable
button
Gain
control
Frequency
control

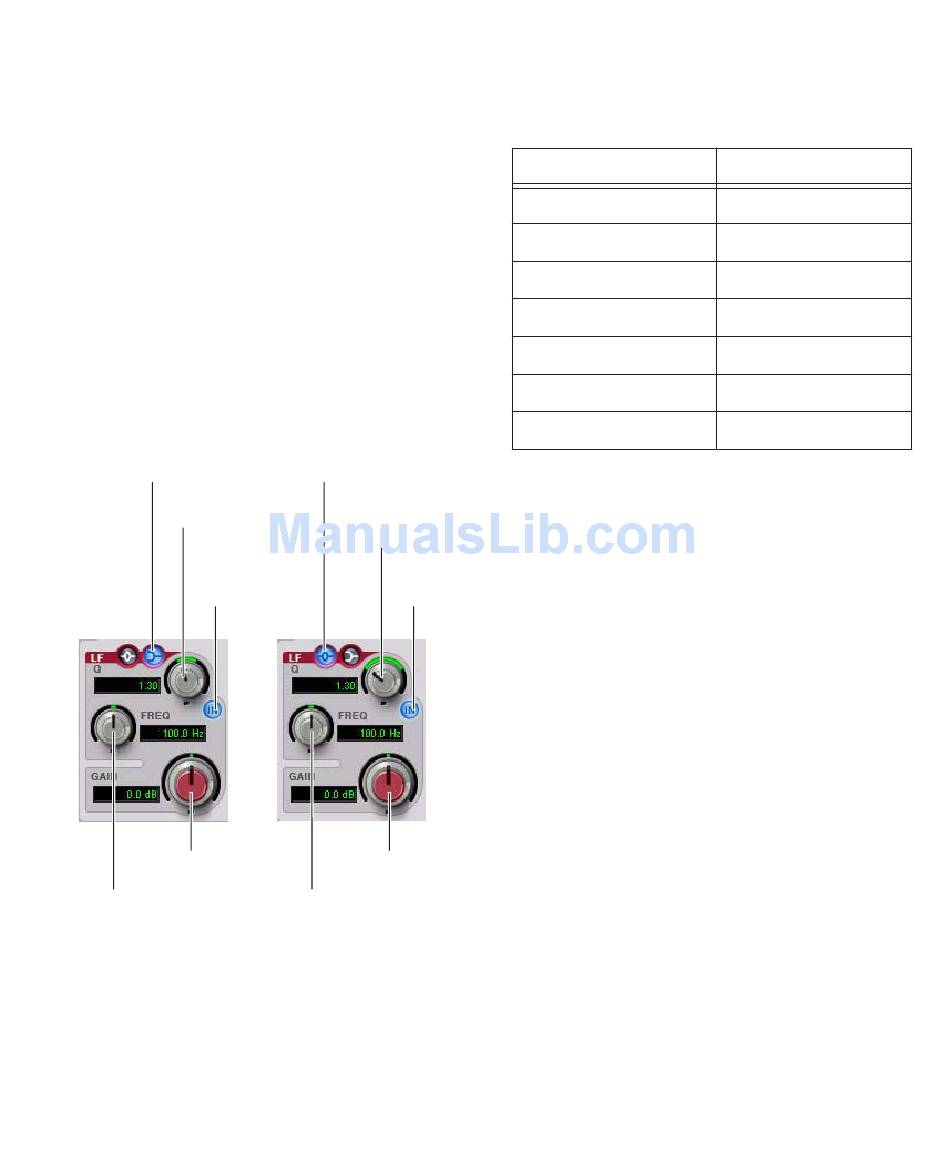

Low Shelf EQ (left) and Low Peak EQ (right)
Low Peak EQ
button
Q
control
Band
Enable
button
Gain
control
Frequency
control
The Low Shelf and Low Peak Gain controls and
their corresponding graph elements are dis-
played on-screen in red.
Low Shelf EQ and Low Peak EQ control values
Control
Frequency Range
Frequency Default
Low Shelf Q Range
Low Peak Q Range
Q Default
Low Shelf Gain Range
Low Peak Gain Range
Chapter 6: DigiRack Real-Time TDM and RTAS Plug-ins
Value
20 Hz to 500 Hz
100 Hz
0.1 to 2.0
0.1 to 10.0
1.0
–12 dB to +12 dB
–18 dB to +18 dB
