Frequency Graph Display
(7 Band EQ and 2–4 Band EQ Only)

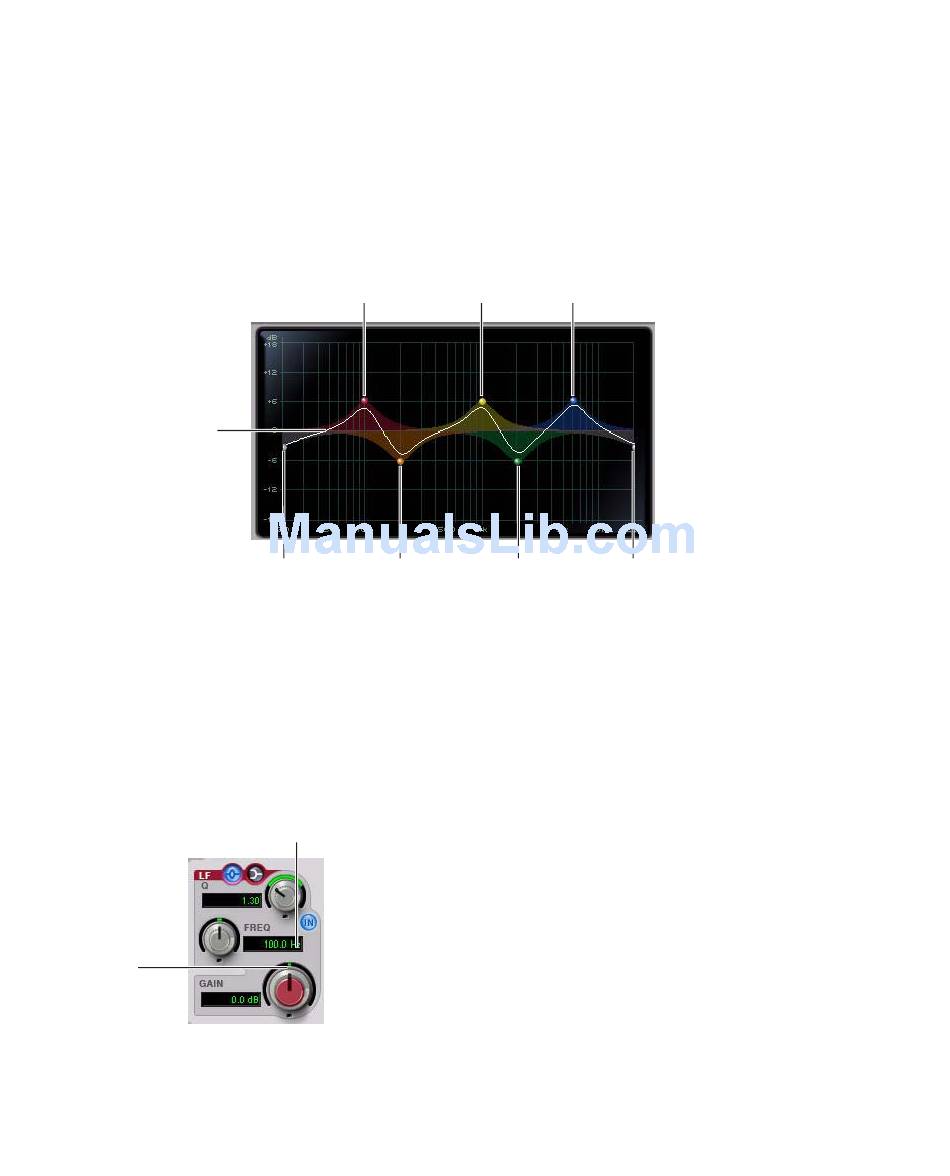

The Frequency Graph display in the 7 Band EQ and the 2–4 Band EQ shows a color-coded control dot
that corresponds to the color of the Gain control for each band. The filter shape of each band is sim-
ilarly color-coded. The white frequency response curve shows the contribution of each of the enabled
filters to the overall EQ curve.
Low Mid High
control dot control dot control dot
(red) (yellow) (blue)
Frequency
response
curve
High-Pass Low-Mid High-Mid Low-Pass
control dot control dot control dot control dot
(gray) (brown) (green) (gray)
Frequency Graph display for the 7 Band EQ
1 Band EQ
The Frequency Graph display in the 1 Band EQ shows a control dot that indicates the center fre-
quency (Peak, Shelf and Notch Filters) or the cutoff frequency (High-Pass and Low-Pass filters) for the
currently selected filter type.
Control dot
Frequency
response
curve
