7 Band EQ
Input/Output Level
and
Polarity controls
High-Pass/
Low Notch
Low-Pass/
High Notch

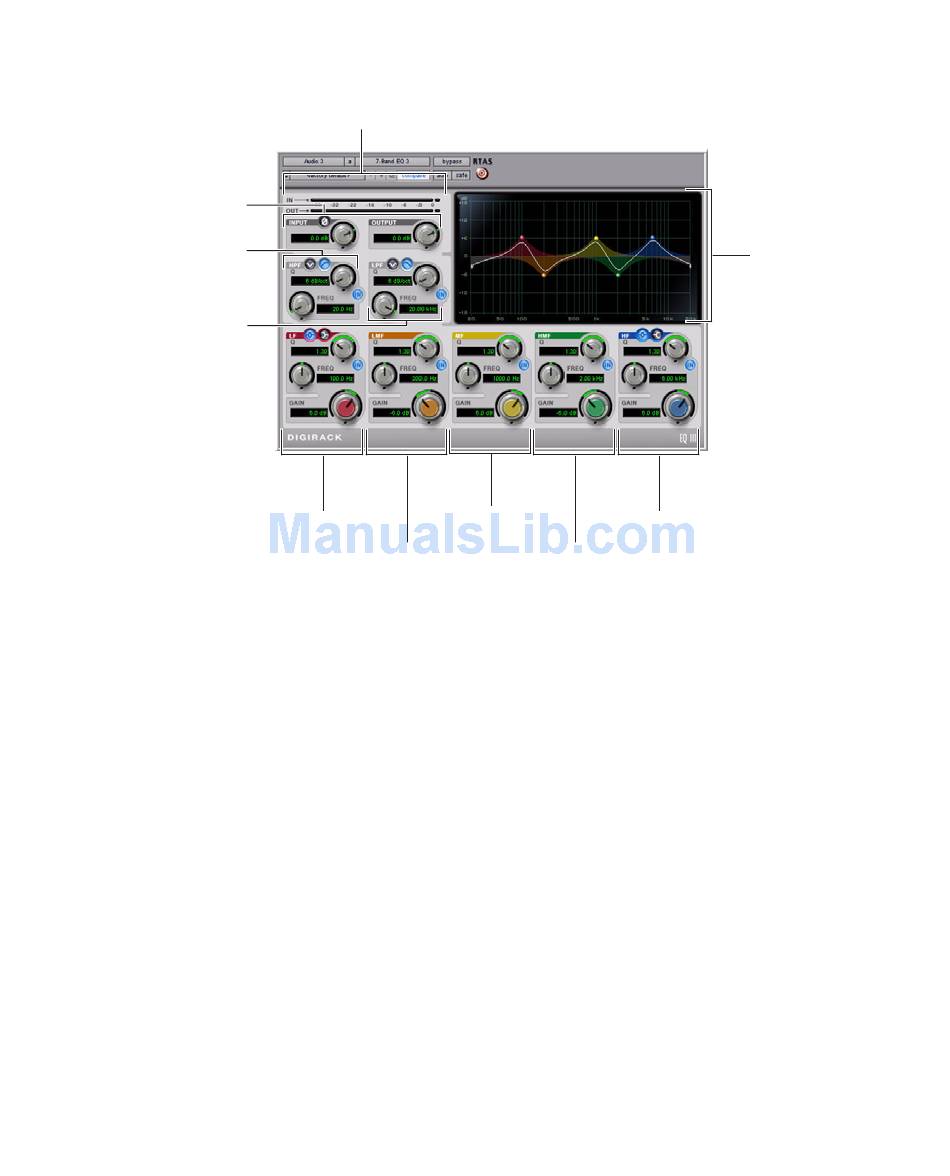

7 Band EQ and 2–4 Band EQ window
The 7 Band EQ has the following available bands: High-Pass/Low Notch, Low-Pass/High Notch, Low
Shelf/Low Peak, Low-Mid Peak, Mid Peak, High-Mid Peak, and High Shelf/High Peak.
All seven bands are available for simultaneous use. In the factory default setting, the High-Pass/Low
Notch and Low-Pass/High Notch bands are out of circuit, the Low Shelf and High Shelf bands are se-
lected and in circuit, and the Low-Mid Peak, Mid Peak, High-Mid Peak bands are in circuit.
Input/Output Level meters
Low
Shelf/Peak
Low-Mid
Peak
Mid High
Peak Shelf/Peak
High-Mid
Peak
