High-Pass/Low Notch
The High-Pass/Notch band is switchable be-
tween High-Pass Filter and Notch EQ functions.
By default, this band is set to High-Pass Filter.
High-Pass Filter Attenuates all frequencies below
the Frequency setting at the selected slope while
letting all frequencies above pass through.
Low-Notch EQ Attenuates a narrow band of fre-
quencies centered around the Frequency set-
ting. The width of the attenuated band is deter-
mined by the Q setting.
High-Pass Filter
button
Band
Enable
button
Frequency Slope
control control

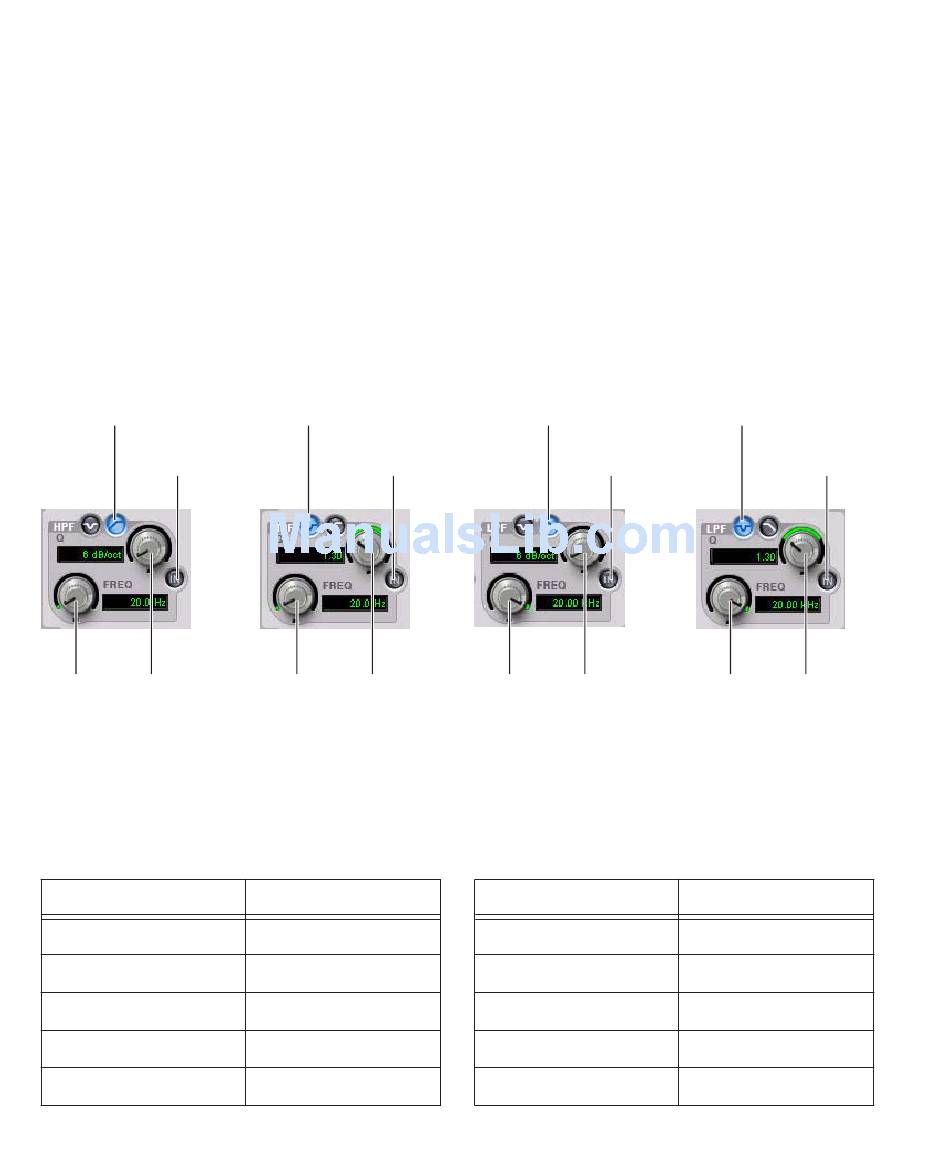

High-Pass filter (left) and Low Notch EQ (right)
The High Pass and Low Notch controls and their
corresponding graph elements are displayed on-
screen in gray.
High-Pass Filter and Low Notch EQ control values
Control
Frequency Range
Frequency Default
HPF Slope Values
Low Notch Q Range
Low Notch Q Default
50 DigiRack Plug-ins Guide
Low Notch EQ
button
Band
Enable
button
Frequency Q
control control
Value
20 Hz to 8 kHz
20 Hz
6, 12, 18, or 24 dB/oct
0.1 to 10.0
1.0
Low-Pass/High Notch
The Low-Pass/Notch band is switchable be-
tween Low-Pass Filter and Notch EQ functions.
By default, this band is set to Low-Pass Filter.
Low-Pass Filter Attenuates all frequencies above
the Frequency setting at the selected slope while
letting all frequencies below pass through.
High-Notch EQ Attenuates a narrow band of fre-
quencies centered around the Frequency set-
ting. The width of the attenuated band is deter-
mined by the Q setting.
Low-Pass Filter
button
Band
Enable
button
Frequency Slope
control control
Low-Pass filter (left) and High Notch EQ (right)
The Low Pass and High Notch controls and their
corresponding graph elements are displayed on-
screen in gray.
Low-Pass Filter and High Notch EQ control values
Control
Frequency Range
Frequency Default
LPF Slope Values
High Notch Q Range
High Notch Q Default
High Notch EQ
button
Band
Enable
button
Frequency Q
control control
Value
120 Hz to 20 kHz
20 kHz
6, 12, 18, or 24 dB/oct
0.1 to 10.0
1.0
