UTP MAU-to-MAU,
Hub-to-Hub Wiring

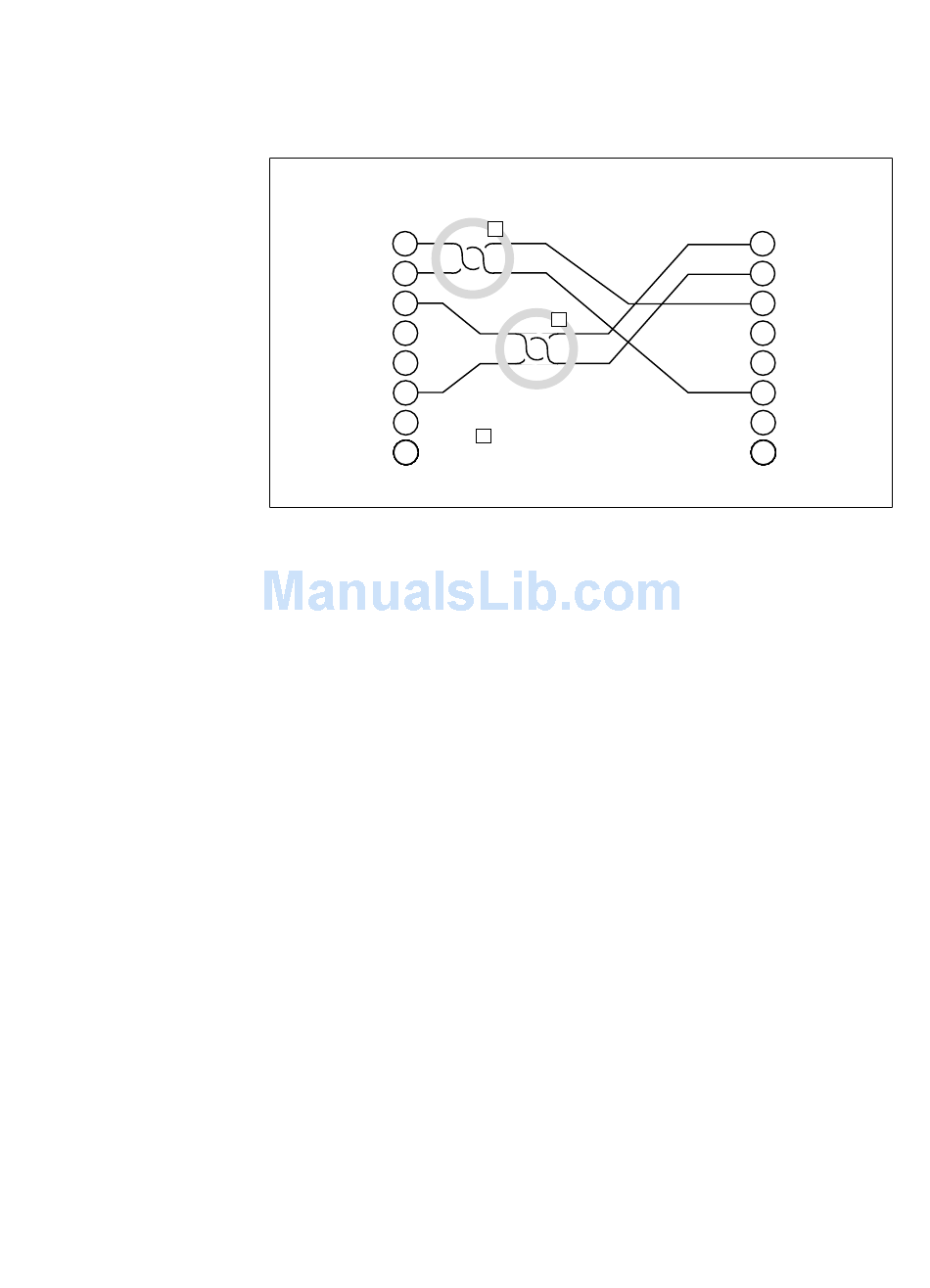

Figure 49: Hub-to-Hub or
MAU-to-MAU
Wiring
10BASE-T MAU-to-MAU or hub-to-hub wiring generally requires a
crossover cable located somewhere along the UTP cable run. This may
commonly occur at the punch-down block or between the RJ45 wall
receptacle and the workstation. See Figure 49.
RJ 45 Pin
1
TD+
2
TD-
3
RD+
4
Not Used
5
Not Used
6
RD-
7
Not Used
8
Not Used
1
1
Pair twisted as per level 3, 4 or 5 cable
1
CentreCOM 3600 Series Hub/Repeaters
RJ 45 Pin
1
TD+
2
TD-
3
RD+
4
Not Used
5
Not Used
6
RD-
7
Not Used
8
Not Used
