To connect the cables:

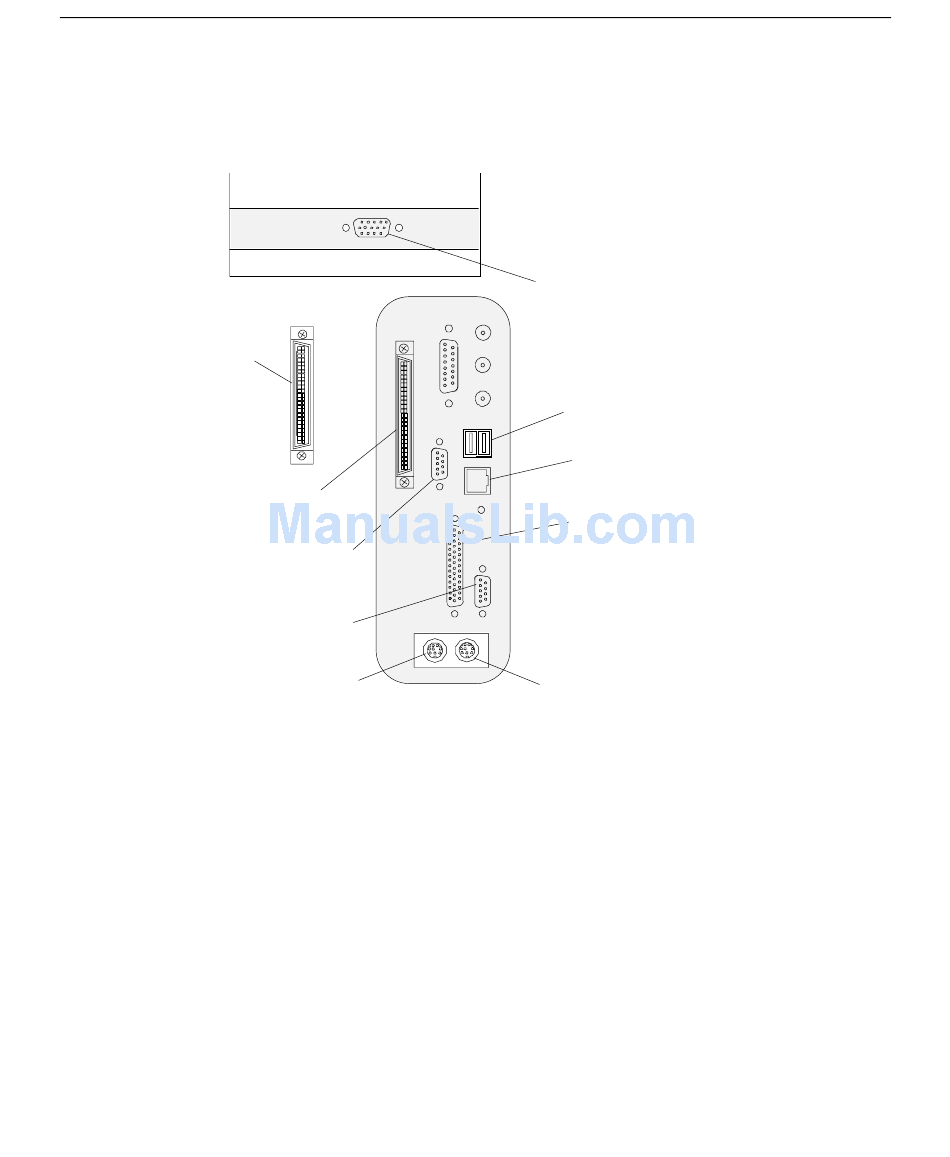

1. Connect the video cable from the monitor to the video port on the video card located in
the I/O Expansion Panel. Refer to the following figure.
Ultra SCSI
Wide Ultra SCSI
(optional)
Serial
(COM 2)
Serial
(COM 1)
Mouse
2. Connect the cables for the keyboard and pointing device to their ports on the I/O
connector panel.
3. Connect the cables for installed expansion boards as described in the documentation for
those boards.
Video Out
USB 1 & 2
Ethernet
Parallel
Keyboard
