SPALDING M682001 Owner's Manual

Portable system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

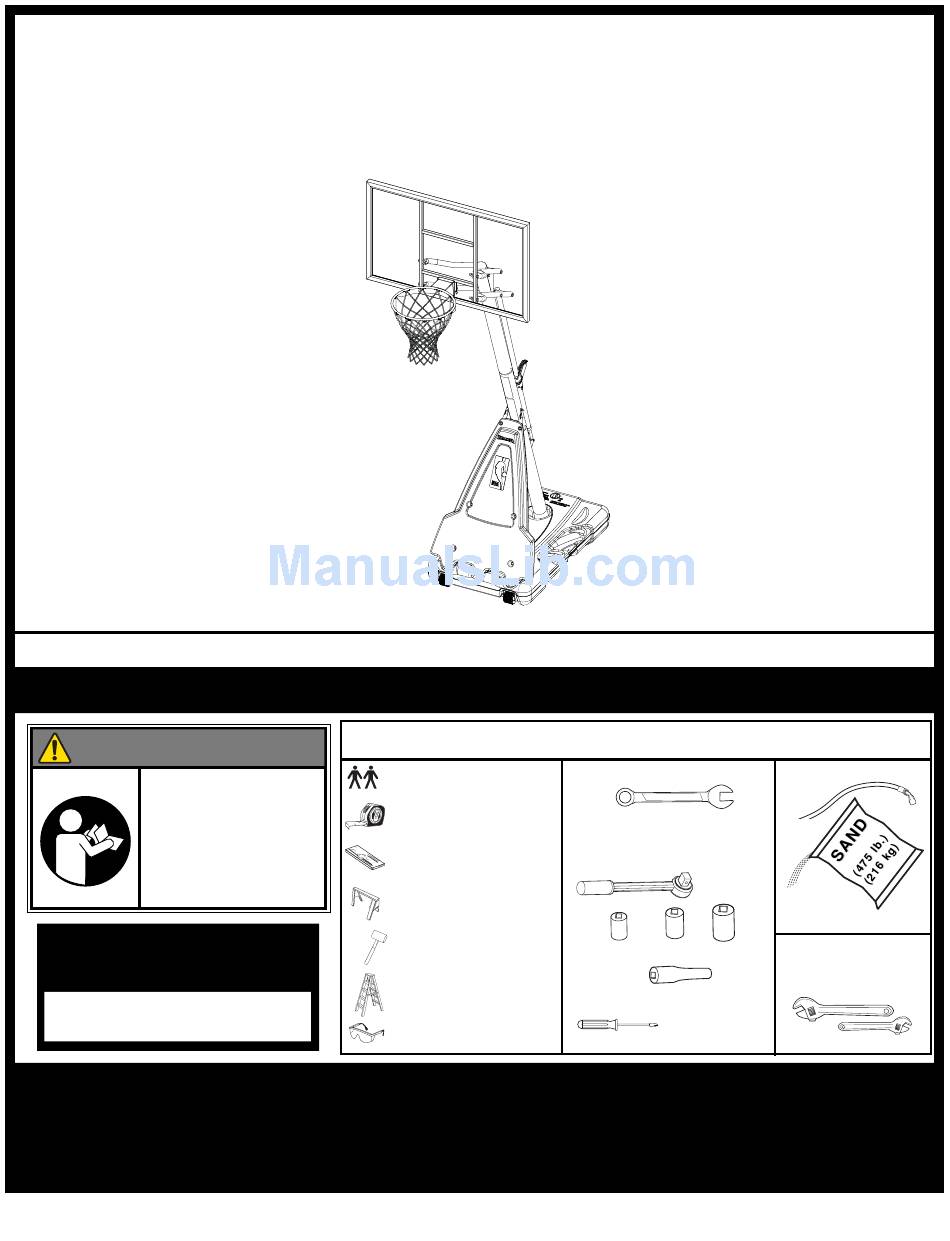

This manual, accompanied by sales receipt, should be saved and kept on hand as a convenient reference, as it
WARNING!
READ AND UNDERSTAND
OPERATOR'S MANUAL
BEFORE USING THIS UNIT.
FAILURE TO FOLLOW
OPERATING
INSTRUCTIONS COULD
RESULT IN INJURY OR
DAMAGE TO PROPERTY.
Write Model Number
From Box Here:
© COPYRIGHT 2006 by SPALDING
Portable System
Owners Manual
Customer Service Center
• N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A.
Adult Assembly Required.
contains important information about your model.
• 2 Capable Adults
• Tape Measure
• Wood Board (scrap)
• Sawhorse or Support Table
• Hammer
• Step Ladder 8 ft. (2.4m)
• Safety Glasses
Toll-Free Customer Service Number for U.S: 1-800-558-5234,
For Canada: 1-800-284-8339,
For Europe: 00 800 555 85234 (Sweden: 009 555 85234),
For Australia: 1-800-632 792
Internet Address: www.huffysports.com
REQUIRED TOOLS AND MATERIALS:
• (2 each) Wrenches
1/2"
AND/OR
(2) Socket Wrenches and Sockets
1/2"
• Extension
• Phillips-Head Screwdriver
www.spalding.com
1
• Garden Hose or Sand
9/16"
3/4"
9/16"
3/4"
• Optional: Large & Small
Adjustable Wrenches
12/06
ID# M682001
