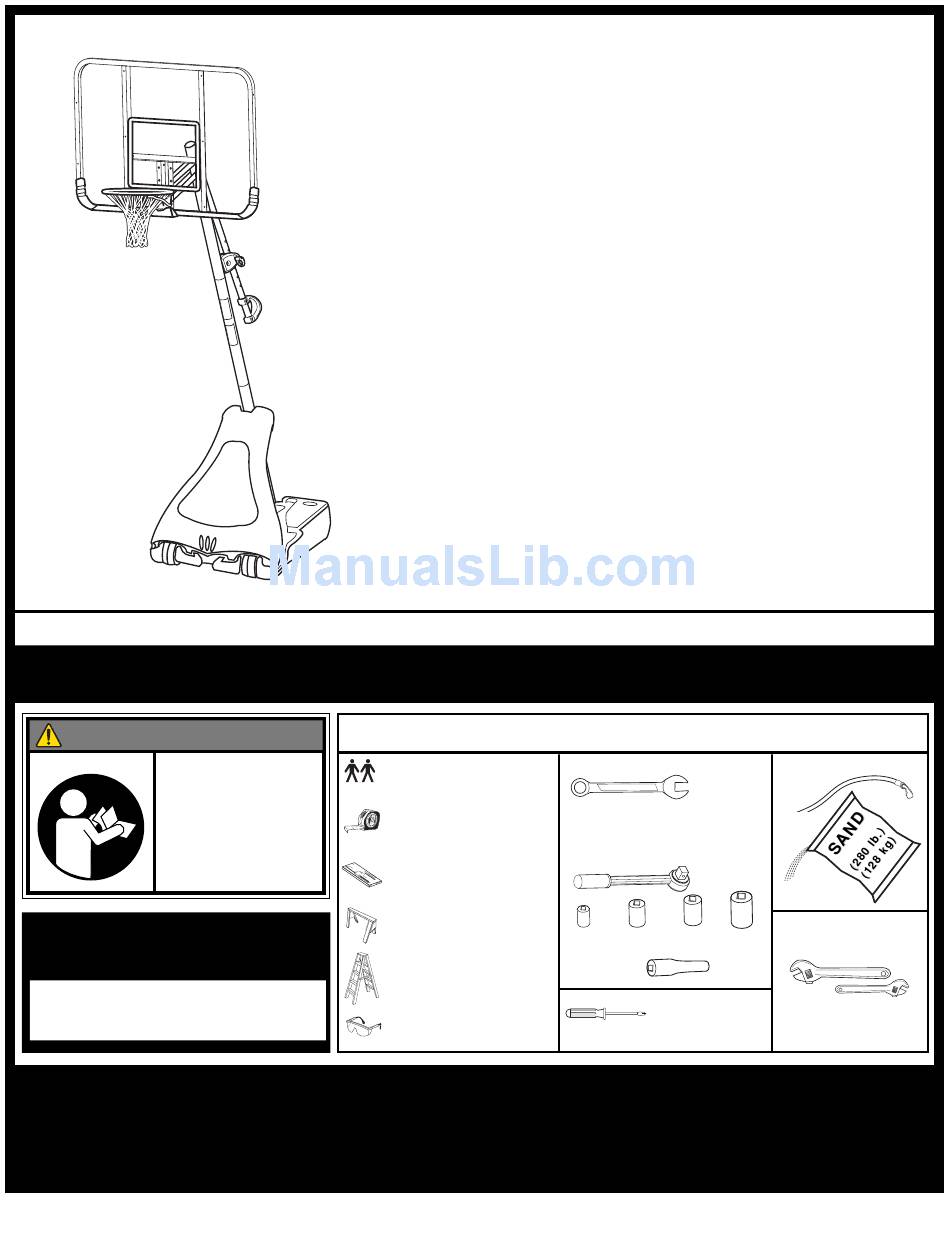

SPALDING M6711041 Owner's Manual

Portable system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
This manual, accompanied by sales receipt, should be saved and kept on hand as a convenient reference, as it
WARNING!
READ AND UNDERSTAND
OPERATOR'S MANUAL
BEFORE USING THIS UNIT.
FAILURE TO FOLLOW
OPERATING
INSTRUCTIONS COULD
RESULT IN INJURY OR
DAMAGE TO PROPERTY.
Write Model Number From
Box Here:
© COPYRIGHT 2007 bySPALDING
Portable System

Owners Manual

• N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A.
Adult Assembly Required.
contains important information about your model.
• Two (2) Capable Adults
• Tape Measure
• Wood Board (scrap)
• Sawhorse or Support Table
• Step Ladder 8 ft. (2.4m)
• Safety Glasses
Toll-Free Customer Service Number for U.S: 1-800-558-5234,
For Canada: 1-800-284-8339,
For Europe: 00 800 555 85234 (Sweden: 009 555 85234),
For Australia: 1800 632 792
Internet Address: www.huffysports.com
Customer Service Center
REQUIRED TOOLS AND MATERIALS:
• (2 each) Wrenches
7/16"
1/2"
AND/OR
(2) Socket Wrenches and Sockets
7/16"
1/2"
• Extension
www.spalding.com
1
• Garden Hose or Sand
9/16"
3/4"
• Optional: Large & Small
9/16"
3/4"
Adjustable Wrenches
• Phillips-Head
Screwdriver
02/07
ID# M6711041

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M6711041 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SPALDING M6711041

Summary of Contents for SPALDING M6711041

  • Page 1: Owners Manual

    Internet Address: www.huffysports.com • Garden Hose or Sand • (2 each) Wrenches 7/16" 1/2" 9/16" 3/4" AND/OR (2) Socket Wrenches and Sockets • Optional: Large & Small 7/16" 1/2" 9/16" 3/4" Adjustable Wrenches • Extension • Phillips-Head Screwdriver www.spalding.com 02/07 ID# M6711041...

  • Page 2: Before You Start

    Test-fit large bolts into large holes of elevator tubes, backboard brackets, and triangle plates. Carefully rock them in a circular motion to ream out any excess paint from holes if necessary. NOTE: Not all items pictured are included with every model. ID# M6711041 02/07...
  • Page 3 System may tip over more easily. • See instruction manual for proper installation and In the U.S.: 1-800-558-5234 In Canada: 1-800-284-8339 In the U.S.: 1-888-713-5488 ID#: 561000 01/06 In the U.S.: 1-800-334-9111 In the U.S.: 1-800-558-5234 In Canada: 1-800-284-8339 02/07 ID# M6711041...

  • Page 4: Safety Instructions

    • If technical assistance is required, contact Customer Service. • Adult supervision is recommended when adjusting height. Most injuries are caused by misuse and/or not following instructions. ID# M6711041 02/07 PROPERTY DAMAGE AND WILL VOID WARRANTY. Use caution when using this system.
  • Page 5 IMPORTANT! Remove all contents from boxes. Be sure to check inside pole sections; hardware and additional parts are packed inside. PRODUCT REGISTRATION: Please remember to complete your product registration form on- line at: www.huffysports.com/customer_support/product_registration. 02/07 ID# M6711041...
  • Page 6 Get to know the basic parts of your basketball system... FRONT VIEW BACKBOARD POLE FRONT PANEL BASE ID# M6711041 02/07...
  • Page 7 Bracket, Reinforcement, Slam Jam 203472 Spring, Rim 203795 Nut, Special, 3/8-16 * YOU MAY HAVE EXTRA PARTS WITH THIS MODEL. NOTE: Hardware kit is designed for more than one style of basketball system. Not all hardware will be used. WARNING! 02/07 ID# M6711041...
  • Page 8 #16 (2) #7 (2) Item #23 (1) #19 (4) #47 (4) #40 (1) #39 (2) #49 (1) #12 (1) #44 (4)* HARDWARE IDENTIFIER (STEEL SPACERS) #21 (2) #28 (2) * You may have extra parts with this model. ID# M6711041 02/07...
  • Page 9 #10 (1) #8 (8) #45 (6) #14 (11)* #1 (1) HARDWARE IDENTIFIER (PLASTIC SPACERS CAPS & CLIPS) #30 (4) #26 (4) #20 (2) #36 (2) #11(4)* #13 (2) HARDWARE IDENTIFIER (OTHER) #48 (1) #50 (1) #51 (1) 02/07 ID# M6711041...

  • Page 10: Section A: Assemble The Base

    SECTION A: ASSEMBLE THE BASE This is what your system will look like when you’ve finished this section. TOOLS REQUIRED FOR THIS SECTION (2) 1/2” and (2) 9/16" Wrenches (2) Socket Wrenches and Sockets AND/OR 1/2” 9/16” Phillips-Head Screwdriver ID# M6711041 02/07...
  • Page 11 203218, Nut P/N 203100, Carriage Bolts P/N 203223. Carriage Bolts P/N 203223 Pole Bracket P/N 201581 Reinforcement Bracket P/N 206091 Hex Flange Nut P/N 203100 Base P/N 206620 Front Cover P/N 206002 Washer P/N 203218 Eye bolts P/N 203452 02/07 P/N 203100 ID# M6711041...
  • Page 12 Indicator P/N 204872 L a b e l , H e i g h t Indicator P/N 204872 Nut P/N 203100 Nut P/N 203100 ID# M6711041 02/07 Height Adjustment Rod P/N 904833 Handle, Right P/N 204856 Handle, Left P/N 204855...
  • Page 13 THE IDENTIFICATION STICKER IS LOCATED 5" FROM THE END OF THE POLE. WHEN PROPERLY POUNDED TOGETHER, THE POLE SECTIONS SHOULD HAVE A 3-1/2" MINIMUM OVERLAP, LEAVING 1-1/2" BETWEEN THE OVERLAPPING POLE AND THE IDENTIFICATION STICKER. WOOD SCRAP (NOT SUPPLIED) 02/07 ID# M6711041...
  • Page 14 Bounce until the top and middle pole assembly no longer moves toward the pole identification mark on the bottom pole. IMPORTANT! Align dimple of middle pole section (5) into trough of bottom pole section (6) as shown. 5" Bottom pole ID# M6711041 02/07 1-1/2" Bottom pole STICKER DIMPLE HOLE...
  • Page 15 (even) with locknuts outer edge. Install rod (9) through bottom pole section (6) as shown. Install large eye bolts (7) onto rod (9) as shown. Secure cover to rod (9) using washers (45) nuts (8) and nut covers (13) as shown. 02/07 ID# M6711041...
  • Page 16 Install pole mount bracket (15) and reinforcement bracket (42) with carriage bolts (16) as shown. Tighten flange nuts (14) completely. Attach spacers (20, 21) to pole mount bracket (15) with bolts (19), washers (17), and nuts (8) as shown. IMPORTANT! Tighten just until washers (17) stop moving. ID# M6711041 02/07...
  • Page 17 Lock pole assembly in place at the 10’ (3.05 m) mark with pin (24). IMPORTANT! Loop end of pin lanyard (25) over carriage bolt (23) as it passes through the pole mount bracket (15) during this assembly. 02/07 ID# M6711041...

  • Page 18: Section B: Attach The Backboard

    This is what your system will look like when you’ve finished this section. (2) 1/2”, (2) 9/16", and (2) 3/4” Wrenches Phillips-Head Screwdriver Identify elevator tubes. ID# M6711041 02/07 TOOLS REQUIRED FOR THIS SECTION AND/OR Upper Elevator tube Lower Elevator tube (2) Socket Wrenches and Sockets 1/2”...
  • Page 19 Assemble backboard brackets (27) using bolts (47), and nuts (8) as shown. 02/07 ID# M6711041...
  • Page 20 Attach lower elevator tubes (32) and counter balance spring (33) to backboard support brackets (27) using spacers (11, 26), bolt (29), and nut (31) as shown. Insert T-bolt (49) into rim bracket (48) then, attach that assembly to board using bolts (44) and nuts (14) ID# M6711041 02/07...
  • Page 21 B Install reinforcement bracket (50) onto T-bolt (49) as shown. C Install spring (51) onto T-bolt (49) as shown. D Install special nut (52) and washer (1) onto T-bolt (49). E Tighten nut (52) until flush with end of T-bolt (49). 02/07 ID# M6711041...
  • Page 22 Support pole on sawhorse. Attach backboard assembly to top pole section (4) as shown. Install pole cap (38). Use caution; elevator assembly is heavy. WARNING! USE CAUTION; ASSEMBLY IS HEAVY. TWO CAPABLE ADULTS REQUIRED FOR THIS PROCEDURE. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE. ID# M6711041 02/07...
  • Page 23 Insert bolt (29) through left side upper elevator tube (35), then stretch spring (33) onto bolt (29). Insert bolt (29) through right side upper elevator tube (35) and secure with nut (31). WARNING! USE EYE PROTECTION WHEN INSTALLING SPRINGS. 02/07 ID# M6711041...

  • Page 24: Outside View

    Install net (43) as shown. Roll completed assembly to desired position. Fill tank with water (approx. 34 gallons (129 Liters)) or sand (approx. 280 lbs. (128 kg)) and snap cap (41) in place. ID# M6711041 02/07 OUTSIDE VIEW WARNING! DO NOT LEAVE ASSEMBLY UNATTENDED WHEN EMPTY;...

  • Page 25: Section C: Apply Height And Moving Label & Height Adjustment

    REQUIRED FOR THIS PROCEDURE. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE. NOTE: Peel protective film from surface of acrylic backboard prior to use. WARNING! DO NOT ALLOW CHILDREN TO ADJUST HEIGHT. 02/07 ID# M6711041...
