SPALDING M662034 Owner's Manual

Huffy portable basketball system owner's manual
Hide thumbs

Advertisement

Quick Links

Download this manual

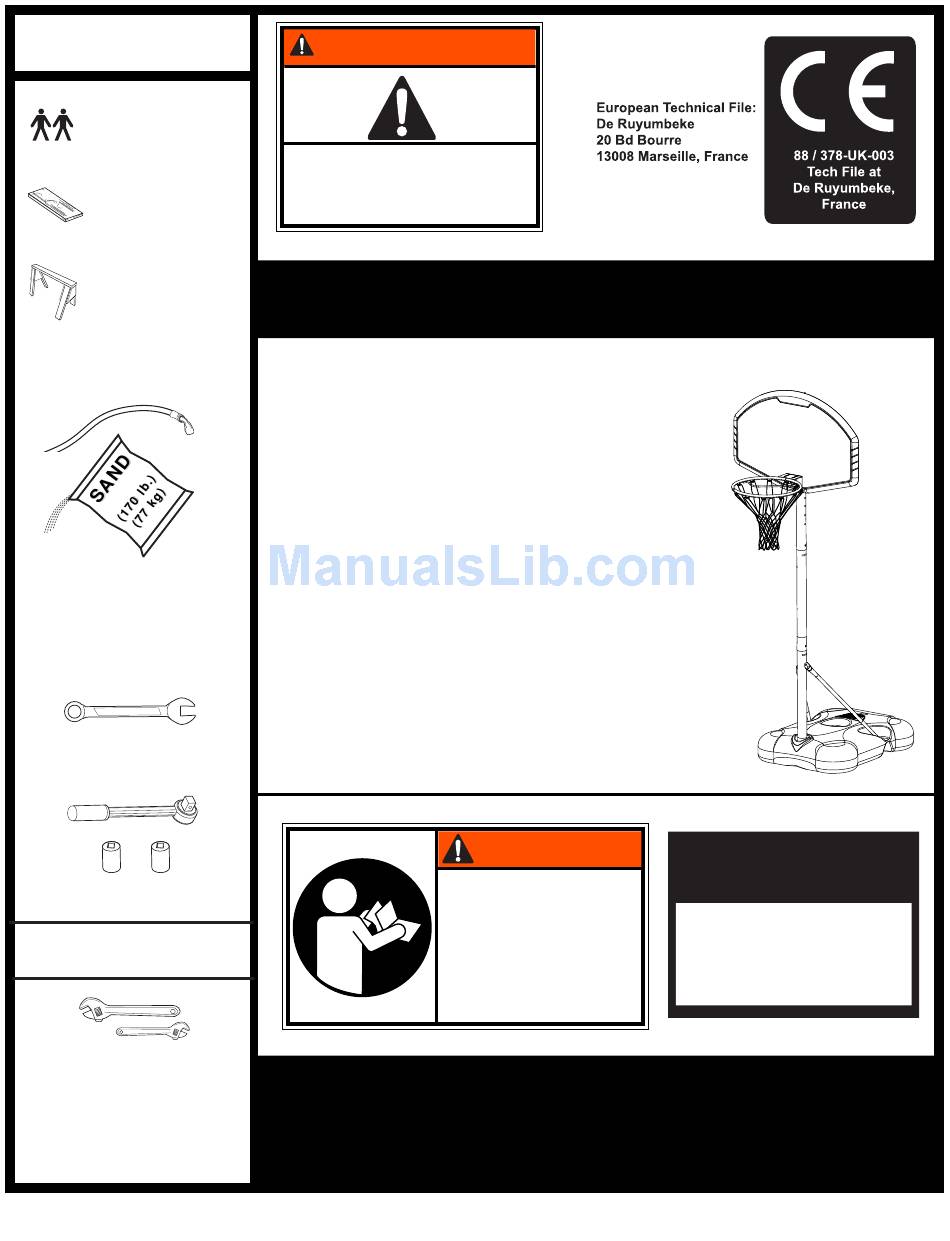

REQUIRED
MATERIALS:
• Two (2) Capable
Adults
• Wood Board
(scrap)
• Sawhorse or
Support Table
• Garden Hose or Sand
• (2 each) Wrenches
and/or Socket
Wrenches and Sockets.
1/2"
9/16"
AND/OR
1/2"
9/16"
OPTIONAL TOOLS
AND MATERIALS:
• Large and Small
Adjustable Wrenches
© COPYRIGHT 2005 by SPALDING
WARNING!
NOT SUITABLE FOR CHILDREN
UNDER THREE YEARS OF AGE
DUE TO SMALL
PARTS/CHOKING HAZARD.
This manual, accompanied by sales receipt, should be saved and kept on hand as a
convenient reference, as it contains important information about your model.
Portable System
Owners Manual
Customer Service Center
• N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A.
Toll-Free Customer Service Number for U.S: 1-800-558-5234,
For Europe: 00 800 555 85234 (Sweden: 009 555 85234),
Internet Address: http://www.huffysports.com
European Technical File:
De Ruyumbeke
20 Bd Bourre
13008 Marseille, France
WARNING!
READ AND UNDERSTAND
OPERATOR'S MANUAL
BEFORE USING THIS UNIT.
FAILURE TO FOLLOW
OPERATING INSTRUCTIONS
COULD RESULT IN INJURY
OR DAMAGE TO
PROPERTY.
For Canada: 1-800-284-8339,
For Australia: 1-800-632 7921
1
88 / 378-UK-003
Tech File at
De Ruyumbeke,
France
Write Model Number
From Box Here:
01/06
ID# M5800011

Advertisement

loading
Need help?

Need help?

Do you have a question about the M662034 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SPALDING M662034

Summary of Contents for SPALDING M662034

  • Page 1 REQUIRED MATERIALS: • Two (2) Capable Adults • Wood Board (scrap) • Sawhorse or Support Table • Garden Hose or Sand • (2 each) Wrenches and/or Socket Wrenches and Sockets. 1/2" 9/16" AND/OR 1/2" 9/16" OPTIONAL TOOLS AND MATERIALS: • Large and Small Adjustable Wrenches ©...

  • Page 2: Height Adjustment

    HEIGHT ADJUSTMENT Rest unit on support table. Remove adjustment knobs (A) and carriage bolts (B) to extend or retract backboard and rim. Height adjustment from 4-1/2' - 6-1/2'. WARNING Backboard may rotate during height adjustment. Do not adjust height of system in upright position.

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS MAY RESULT IN SERIOUS INJURY OR Owner must ensure that all players know and follow these rules for safe operation of the system. To ensure safety, do not attempt to assemble this system without following the instructions carefully. Proper and complete assembly, use, and supervision are essential for proper operation and to reduce the risk of accident or injury.
  • Page 4 Get to know the basic parts of your basketball system... FRONT BACK TOP POLE BACKBOARD ELEVATOR ASSEMBLY MIDDLE POLE STRUTS BOTTOM POLE BASE ID# M5800011 01/06...

  • Page 5: Parts List

    Silver Item Qty. Part No. 20664903 918130 918133 918132 203099 20378701 203223 203617 203740 201344 908134 908129 203739 203218 203309 203679 203100 910454 910255 558170 * You may have extra parts with this model. PARTS LIST Description Tank (Black) Top Pole Section Middle Pole Section with Label Bottom Pole Section Nut, Ny-Lock, 5/16-18...
  • Page 6 #8 (3) #16 (2) #19 (1) #10 (1) #1 (1) #11 (2) #13 (1) ID# M5800011 01/06 P P A A R R T T S S I I D D E E N N T T I I F F I I E E R R - Actual Size #5 (1) 203099Hex Locknut (Nylon Insert) #20 (3)
  • Page 7 S S E E C C T T I I O O N N A A : : A A S S S S E E M M B B L L E E T T H H E E P P O O L L E E S S Correctly identify each pole section.
  • Page 8 ONCE POLE SECTIONS ARE POUNDED TOGETHER- THEY CANNOT BE TAKEN APART Align poles using alignment marks. First, pound top and middle poles together by bouncing them on a scrap piece of wood on the ground as shown in FIG A. until they no longer move toward pole identification stickers.
  • Page 9 Attach pole assembly to tank as shown. Secure pole assembly to tank by turning the pole assembly clockwise as shown. NOTE: CAREFULLY TIPPING THE SYSTEM FORWARD WILL ALLOW EASIER ACCESS TO UNDERSIDE OF BASE WARNING! TWO CAPABLE ADULTS REQUIRED FOR THIS PROCEDURE.
  • Page 10 Secure tank struts (21 & 22) to pole. Rotate struts down and bend struts outward to line up with holes on base as shown. Secure free ends of tank struts to tank with carriage bolt (8), and Repeat for other side. ID# M5800011 01/06 WARNING!
  • Page 11 Pole bracket will need to be lightly pressed into backboard ribbing. Be sure to press completely into place. Attach rim to backboard and pole bracket (14) with nut (20), reinforcement bracket (15), and carriage bolt (8) as shown. Tighten nut completely. PRESS BRACKET (14) INTO PLACE HERE...
  • Page 12 Attach board assembly to pole with carriage bolts (16) and knobs (11) as shown. Install pole cap (7) as shown. Place assembled unit in desired location. Fill tank completely with water (14 gallons/53 liters) or sand (approx. 170 lb./77 kg) and snap tank cap (9) in place. CAUTION! ADD ONE GALLON (3.78 LITERS) OF NON-TOXIC...
  • Page 13 Install net (6). Attach height and moving label (23) to front of pole as shown. Regulation rim height is 10 feet. WARNING! READ AND UNDERSTAND FAILURE TO FOLLOW OPERATING INSTRUCTIONS COULD RESULT IN INJURY OR DAMAGE TO PROPERTY. HEIGHT ADJUSTMENT Rest unit on support table.
