REQUIRED TOOLS
AND MATERIALS:
• 2 Capable Adults
• Carpenter's Level
• 15' Tape Measure
• Pencil
• Drill and Drill Bit (3/8")
• Step Ladder 8ft. (2.4 m)
• Needle-Nose Pliers
• (2 each) Wrenches and/or
Socket Wrenches and Sockets
(Deep-Well Sockets are
Recommended).
7/16"
1/2"
9/16"
3/4"
AND/OR
3/4"
7/16"
1/2"
9/16"
• Extension is Recommended.
OPTIONAL TOOLS
AND MATERIALS:
• Large & Small Adjustable
Wrenches
NOTE:
Due to various mounting
methods, additional
tools and materials may
be required.

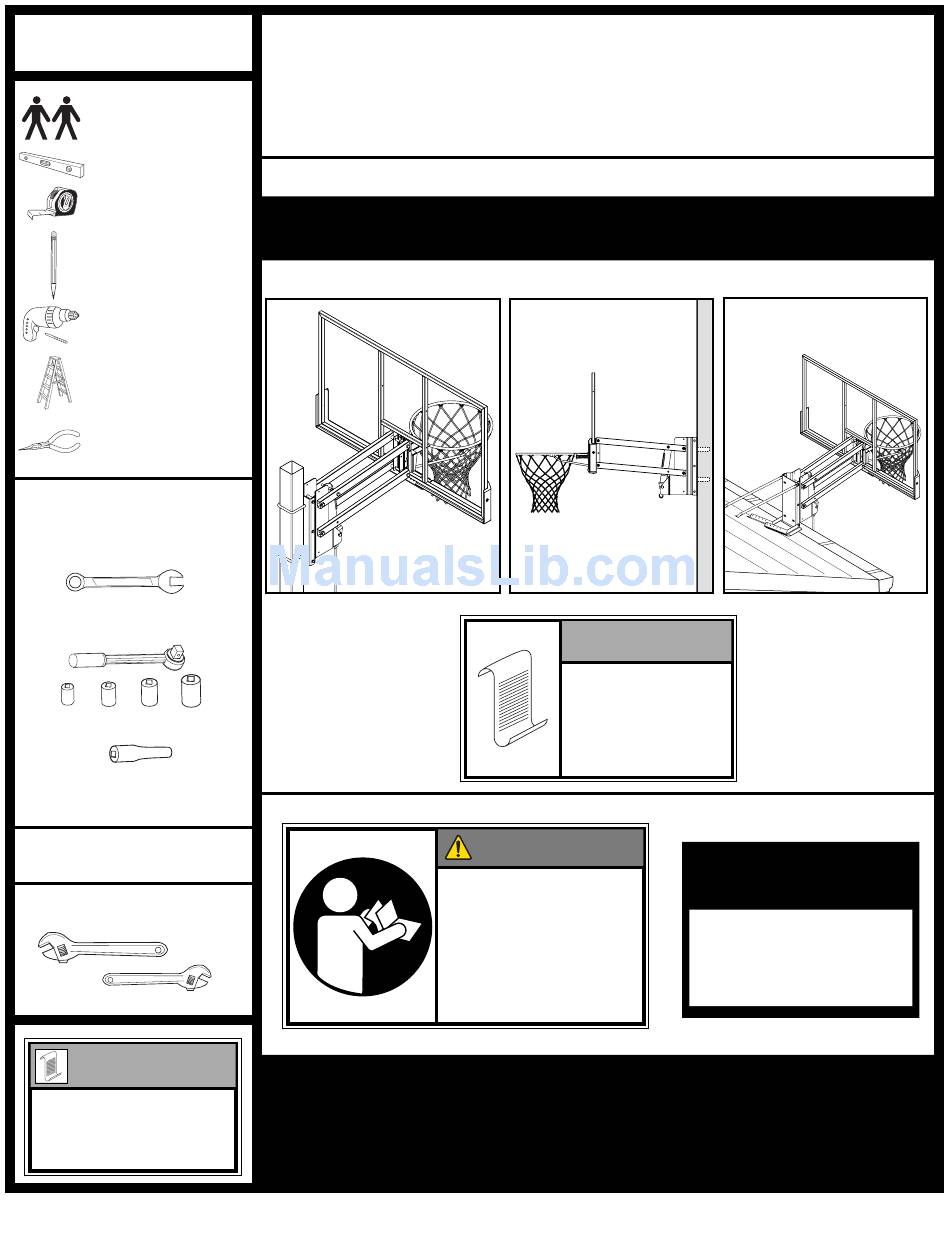

Universal Elevator Mount
• N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A.
This manual, accompanied by sales receipt, should be saved and kept on hand as a
convenient reference, as it contains important information about your model.
READ AND UNDERSTAND
OPERATOR'S MANUAL
BEFORE USING THIS UNIT.
FAILURE TO FOLLOW
OPERATING INSTRUCTIONS
COULD RESULT IN INJURY
OR DAMAGE TO
PROPERTY.
Toll-Free Customer Service Number for U.S: 1-800-558-5234,
For Europe: 00 800 555 85234 (Sweden: 009 555 85234),
Internet Address: www.huffysports.com
Owners Manual
Customer Service Center
Adult Assembly Required.
NOTE:
Mount, Pole
and Board
style will vary.
WARNING!
For Canada: 1-800-284-8339,
For Australia: 1-800-632 792
1
Write Model Number
From Box Here:
www.spalding.com
01/07
ID# M316001
Advertisement
Related Manuals for SPALDING M316001
Summary of Contents for SPALDING M316001
-
Page 1: Owners Manual
Toll-Free Customer Service Number for U.S: 1-800-558-5234, For Canada: 1-800-284-8339, For Europe: 00 800 555 85234 (Sweden: 009 555 85234), For Australia: 1-800-632 792 Internet Address: www.huffysports.com NOTE: Mount, Pole and Board style will vary. Write Model Number From Box Here: www.spalding.com 01/07 ID# M316001... -
Page 2: Safety Instructions
Most Injuries are caused by misuse and/or not following instructions. Use caution when using this unit. HEIGHT ADJUSTMENT TO ADJUST BACKBOARD: Position looped end of crank onto hook as shown. Rotate crank handle to raise or lower backboard ID# M316001 01/07 Crank Hook 509000 1/07 NOTE: After installation is... - Page 3 IMPORTANT! Remove all contents from box. NOTICE TO ASSEMBLERS inspect for loose small parts. devise a makeshift support system. For more information on assembly, placement, proper use, and maintenance, visit The American Basketball Council website at http://www.smarthoops.com. 01/07 ID# M316001...
- Page 4 #5 (1) #3 (6) #14 (2) HARDWARE IDENTIFIER (NUTS AND WASHERS) #8 (9) #11 (6) #33 (4) ID# M316001 01/07 PARTS LIST - See Hardware Identifier Item Qty. Part No. Description #1 (2) - (NOT ACTUAL SIZE) #6 (5) #13 (1)
- Page 5 #22 (1) HEIGHT ADJUSTMENT #17 (1) TO ADJUST BACKBOARD: Position looped end of crank onto hook as shown. Rotate crank handle to raise or lower backboard Crank Hook #26 (1) #27 (1) 509000 1/07 #24 (1) #12 (1) 01/07 ID# M316001...
-
Page 6: Before You Start
Carefully rock them in a circular motion to ream out any excess paint from holes if necessary. Not all parts shown are included with every system. SECTION A: ASSEMBLE THE ELEVATOR MOUNT TO DIFFERENT MOUNT SURFACES (POLE, WALL & ROOF) Identify elevator tubes (30). Toward Mount Toward Elevator Tubes Board ID# M316001 01/07... - Page 7 (17) to square pole using u-bolts (29), washers (10) and nuts (8) as shown. Attach jack support brackets (18 & 19) to pole bracket (17) using bolts (3), washers (9) and nuts (11) as shown. Completed Assembly 01/07 ID# M316001...
- Page 8 (17) to round pole using u-bolts (1), clamps (2), washers (34) and nuts (33) as shown. Attach jack support brackets (18 & 19) to pole bracket (17) using bolts (3), washers (9) and nuts (11) as shown. Completed Assembly ID# M316001 01/07...
- Page 9 Secure pole bracket (17) to flat solid surface. Install bolt heads outside for safety reasons. Attach jack support brackets (18 & 19) to pole bracket (17) using bolts (3), washers (9) and nuts (11) as shown. Not Included with Hardware Not Included with Hardware Completed Assembly 01/07 ID# M316001...
- Page 10 Attach struts (23), angle brackets (26 & 27) AND jack support brackets (18 & 19) to pole bracket (17) with bolts (3), washers (9) and nuts (11) as shown. NOTE: Strut Position U-Channel Completed Assembly ID# M316001 01/07 Roof WARNING! A solid mounting base and/or...
- Page 11 106-3/4” (2.71 m) from top elevator hole to playing surface. Homeowner must assume all responsiblilty for any personal or property damage if backboard height is lower than recommended. Not Included with Hardware 106-3/4” (2.71 m) 01/07 ID# M316001...
- Page 12 THE ASSEMBLIES ARETHE SAME FOR SQUARE AND ROUND POLE, WALL MOUNT, AND ROOF MOUNT Attach elevator tubes (30) to the jack support brackets (18 & 19) using bolts (6), washers (10), spacers (31 & 32) and nuts (8) as shown. Completed Assembly ID# M316001 01/07...
- Page 13 (28) with screw jack bottom. Place cover (21) over screw jack (24). Insert spacer (16) into screw jack assembly (24) as shown. Install screw jack assembly (24) using bolts (6 & 14), washer (10) and nut (8) as shown. Completed Assembly 01/07 ID# M316001...
- Page 14 Attach backboard using hardware shown. Folow instructions that are packaged with backboard for specific assembly details. ID# M316001 01/07 BACKBOARD MOUNTING ATTACH A COMPOSITE STYLE BACKBOARD Assemble backboard brackets (20) using bolt (5) spacer (4) and nut (13) as shown.
- Page 15 • See instruction manual for proper installation and maintenance. In the U.S.: 1-800-334-9111 In the U.S.: 1-800-558-5234 In Canada: 1-800-284-8339 In the U.S.: 1-800-558-5234 In the U.S.: 1-888-713-5488 In Canada: 1-800-284-8339 ID#: 588000 05/05 01/07 10 ft. (3.05 m) ID# M316001...
