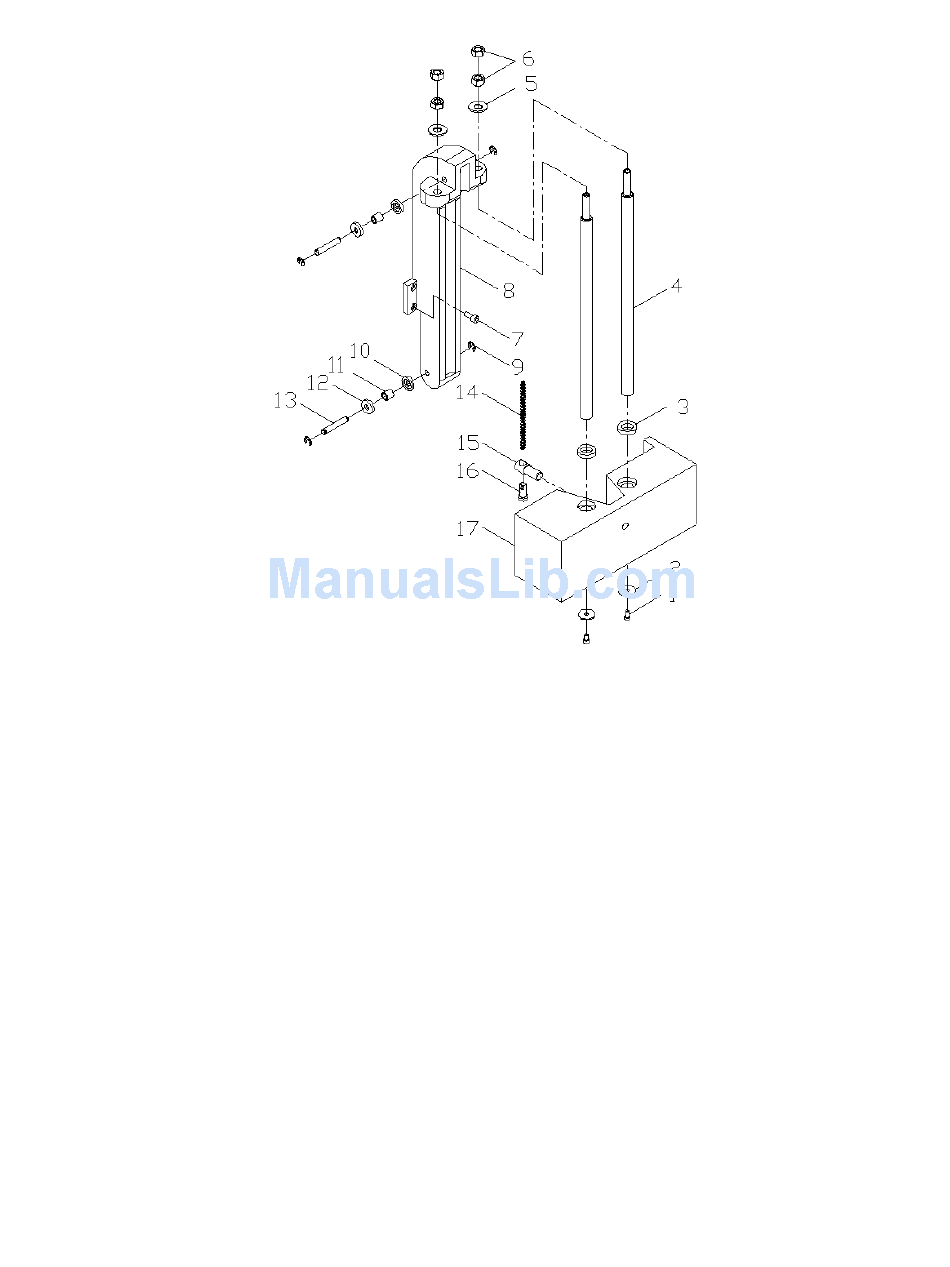

13.8.1 Counterweight Assembly: Exploded View

13.8.2 Counterweight Assembly: Parts List

Index No. Part No. Description Size Qty
1 .............. TS-1503031 ............Socket Head Cap Screw .............................M6 x 12L .......................... 2
2 .............. 5235761 ..................Washer .............................................................................................. 2
3 .............. 5235771 ..................Oil Seal ......................................................TC19 x 32 x 8 ................... 2
4 .............. 5235781 ..................Round Bar.......................................................................................... 2
5 .............. 5235791 ..................Washer ......................................................1/2" .................................. 2
6 .............. 5235811 ..................Nut ............................................................1/2" .................................. 4
7 .............. 5235831 ..................Socket Head Cap Screw .............................M8 x 120L ........................ 4
8 .............. J-5235841 ...............Chain Frame ...................................................................................... 1
9 .............. 5235911 ..................Retainer .....................................................E9.................................... 4
10 ............ 10376 .....................Collar ................................................................................................. 2
11 ............ 5235931 ..................Bearing ......................................................TA1015Z .......................... 2
12 ............ 10376 .....................Collar ................................................................................................. 2
13 ............ 5235941 ..................Shaft .................................................................................................. 2
14 ............ 5235961 ..................Chain .........................................................3/8" x 130 ......................... 1
15 ............ 5235971 ..................Bolt .................................................................................................... 1
16 ............ 5235981 ..................Chain Adapter .................................................................................... 1
17 ............ J-5235991 ...............Cast Iron Block ................................................................................... 1
