6.0 Set-Up and Assembly

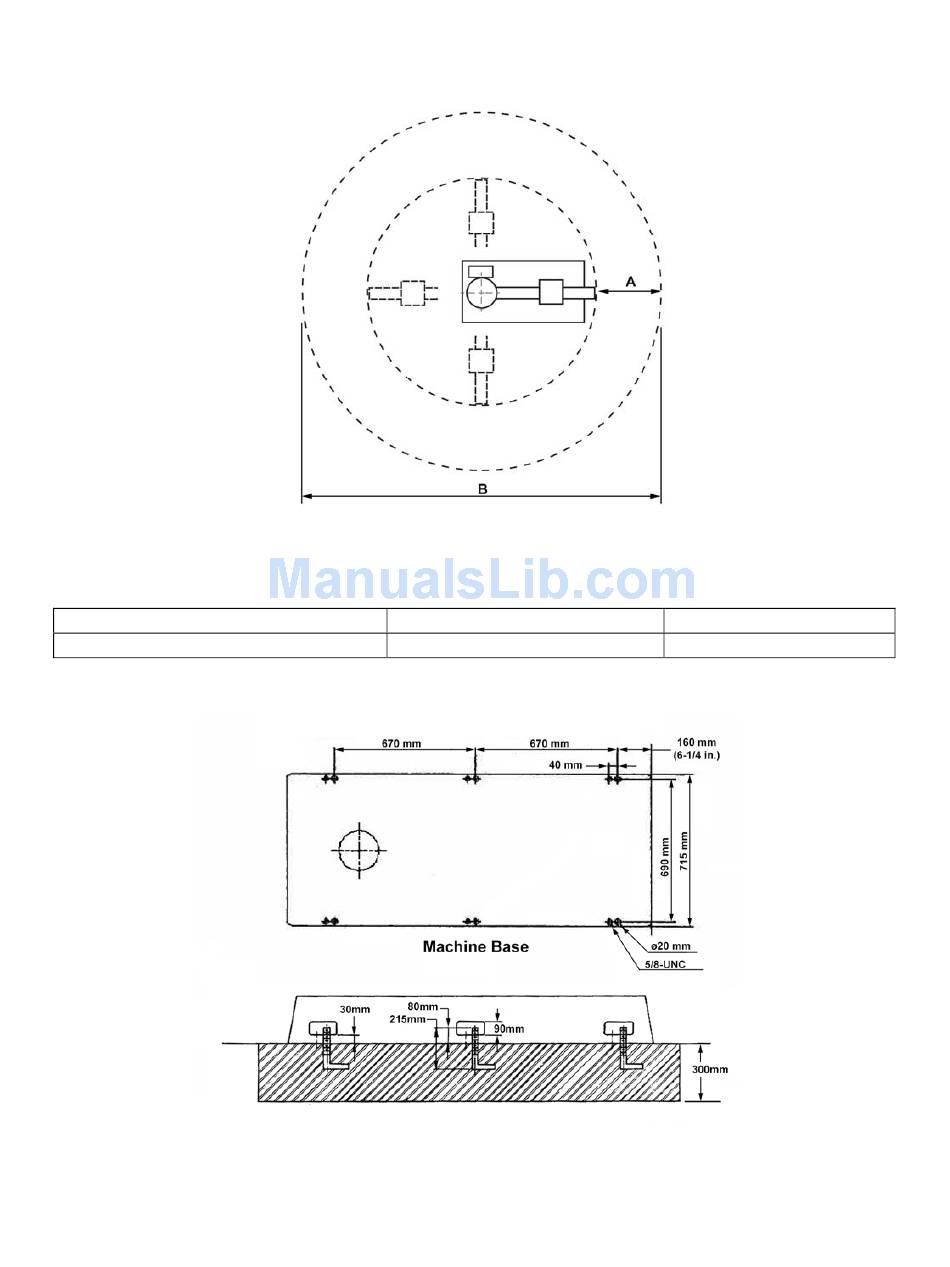

6.1 Floor Diagrams for J-1230R

Figure 4 shows spacing for the 360° rotational path of the arm, plus 1000mm (approx. 40 inches) of
general maintenance area on each side.
Distance column center to arm limit
1546mm (61 in.)
Figure 6
Maintenance area (A)
1000mm (40 inches)
Figure 7
12
Total space required (B)
5092mm (200 in.)
