5.0 General Features and Terminology

1. Top Cap
2. Elevating Ball Screw
3. Column
4. Locking Nut
5. Handwheel (horizontal gearbox travel)
6. Coolant Nozzle
7. Column Clamping Indicators
8. Box Table
9. Base
10. Leveling Screws
11. Spindle Motor
12. Drill Head/Gearbox (see Figure 10 for details)
13. RaCK
14. Arm
15. Arm Rotation Handle
16. Work Lamp
17. Fine Feed Handwheel
18. Spindle

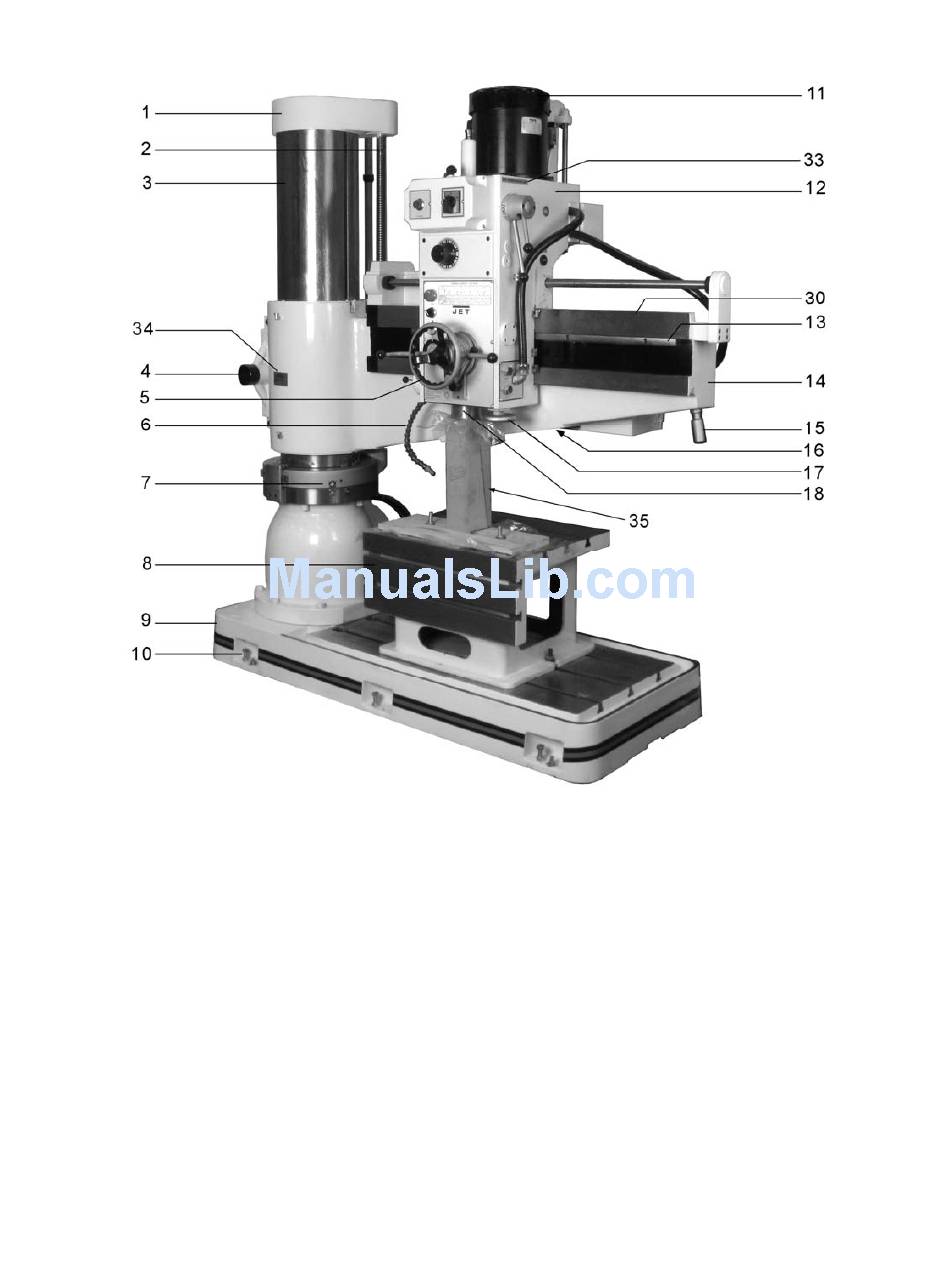

Figure 3
19. Work Lamp Toggle Switch
20. Electrical cabinet
21. Counterweight System
22. Clamping Rod
23. Guard Panel
24. Clamping Gear
25. Coolant Pump
26. Arm Raising Motor
27. Clamping Motor
28. Clamping Gearbox
29. Elevating Worm Gear Reducer
30. Arm Rail
31. Caution Label – High Voltage (p/n CL-HV)
32. Warning Label – Tipping Risk (p/n J1230R-WL)
33. Caution Label – Stop Spindle (p/n J1230R-CL)
34. Machine Identification Plate
35. Support Block (for shipping only)
