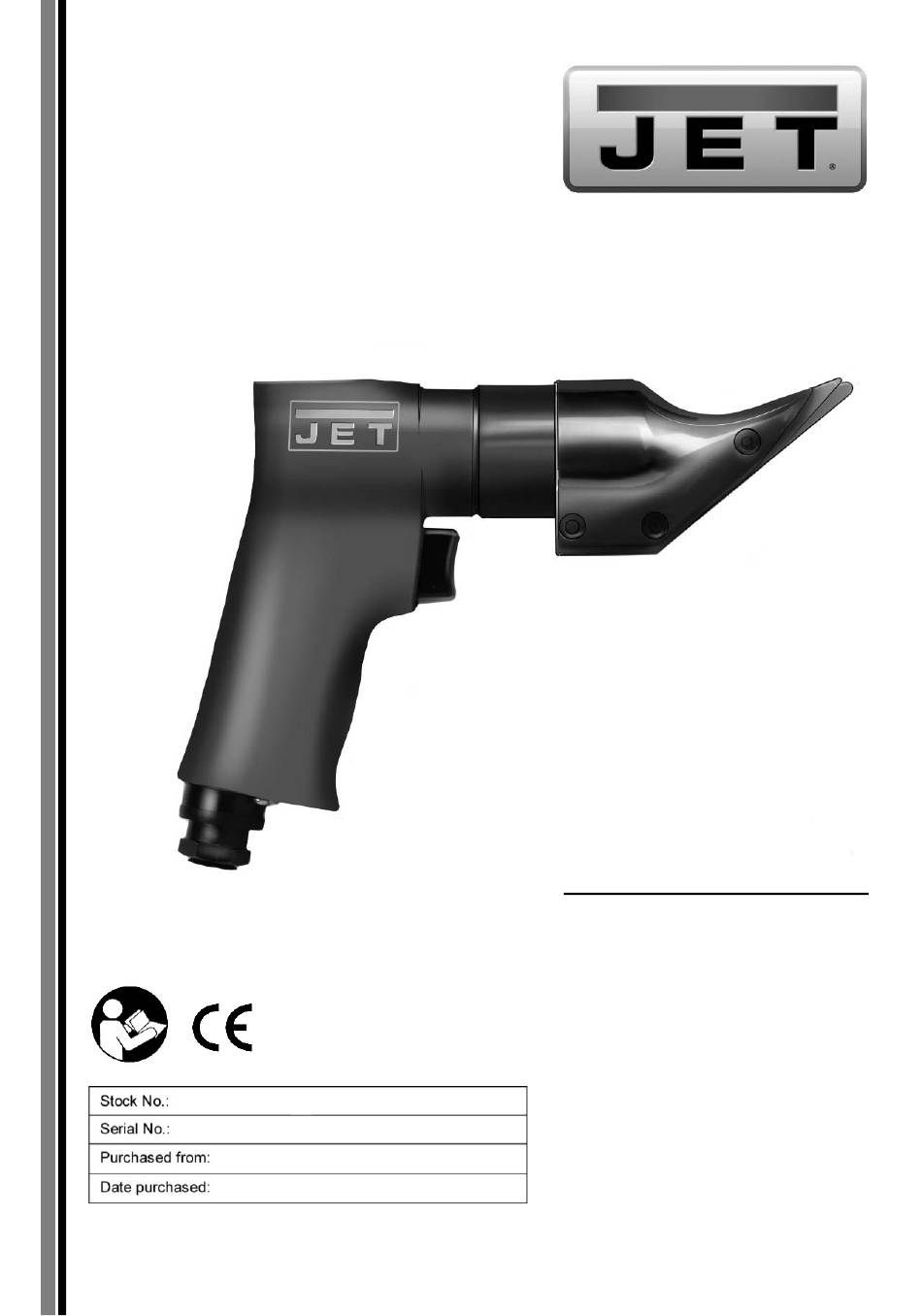

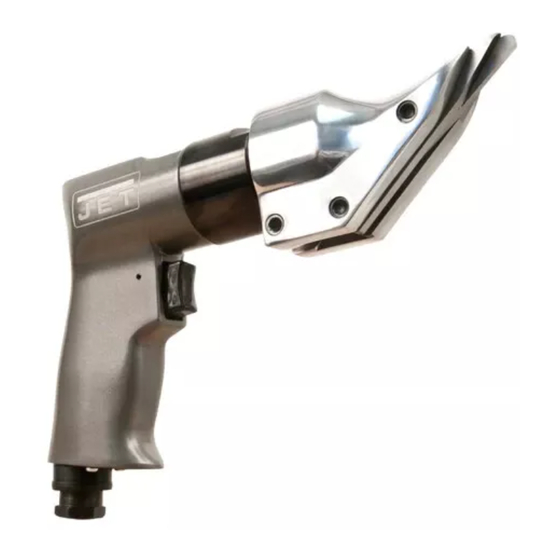

- Page 1 Pneumatic Metal Shear #505910, JAT-910 Operation & Parts Manual M-505910 Edition 2 06/2015 427 New Sanford Road LaVergne, TN 37086 Ph.: 800-274-6848 www.jettools.com Copyright © 2015 JET...
-
Page 2: Warranty And Service
Shop Tools; Warehouse & Dock products; Hand Tools; Air Tools NOTE: JET is a division of JPW Industries, Inc. References in this document to JET also apply to JPW Industries, Inc., or any of its successors in interest to the JET brand. -
Page 3: Safety Warnings
10. The air tool must be properly lubricated before operating. Do not use this tool for other than its intended use. If used for other purposes, JET disclaims 11. Never start a percussion type air tool (chipper, any real or implied warranty and holds itself breaker, buster, etc.) without securing the... - Page 4 33. Do not lubricate the tool with combustible off the trigger, before connecting to air supply. liquids, such as kerosene, diesel or jet fuel. 24. Remove adjusting keys and wrenches before 34. Do not dispose of this tool with normal turning on tool.
-
Page 5: About This Manual
As with any tool operation, safety of operator and bystanders should be first priority. If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our web site: www.jettools.com. -
Page 6: Tool Specifications
Specifications were current at time of publication, but because of our policy of continuous improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring obligations. -
Page 7: Setup And Assembly
Any missing parts or damage should be reported Use moderate pressure against workpiece; ® immediately to your JET distributor. Do not use a do not force tool. damaged tool. Read this instruction manual thoroughly for operation, maintenance and safety Release trigger to stop tool. - Page 8 Use a light oil containing rust inhibitors, such as • SAE #10. Many JET air tools have integral oil Contaminated air such as a dirty air system reservoirs, which should be kept filled when in-line or water in the system.
- Page 9 Figure 2 Recommended arrangement of air piping and air line system ...
- Page 10 Troubleshooting JAT-910 Pneumatic Shear Any disassembly of the tool should be done by qualified service personnel. For problems not addressed below, contact JET technical service at 800-274-6846. Problem Possible cause Remedy Tool will not start. Air valve closed or obstructed.
-
Page 11: Replacement Parts
Replacement parts Service parts are listed on the following pages. To order parts or reach our service department, call 1-800- 274-6848 Monday through Friday, 8:00 a.m. to 5:00 p.m. CST. Please have the stock number and serial number of your tool available when you call, so that we may serve you quickly and accurately. ... - Page 12 #505910, JAT-910, Pneumatic Shear – exploded view JAT-910 Pneumatic Shear ...
- Page 13 #505910, JAT-910, Pneumatic Shear – parts list Index Part No. Description Index Part No. Description JAT910-01 Motor housing JAT910-16 Rotor vane 73402 Spring pin 2.5x22pL 70117 Spring pin 2x5L 70103 Air inlet 70118 Cylinder 70104 Trigger JAT910-19 Front end plate...
- Page 14 This page intentionally left blank. JAT-910 Pneumatic Shear ...
- Page 15 This page intentionally left blank. ...
- Page 16 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.jettools.com JAT-910 Pneumatic Shear ...
