Operating Instructions and Parts Manual

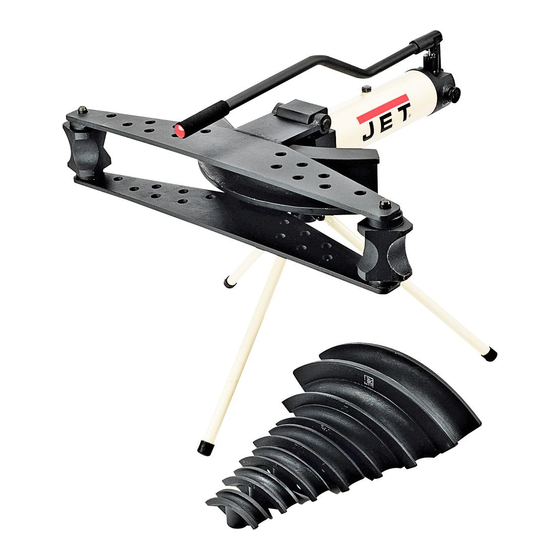

Hydraulic Pipe Bender
Models: JHPB-20 (2-inch), JHPB-30 (3-inch)
WALTER MEIER (Manufacturing) Inc.
427 New Sanford Road
LaVergne, Tennessee 37086
Part No. M-331900
Ph.: 800-274-6848
Revision A1 04/2011
www.waltermeier.com
Copyright © 2011 Walter Meier (Manufacturing), Inc.
Advertisement
Table of Contents
Related Manuals for Jet JHPB-20
Summary of Contents for Jet JHPB-20
- Page 1 Operating Instructions and Parts Manual Hydraulic Pipe Bender Models: JHPB-20 (2-inch), JHPB-30 (3-inch) WALTER MEIER (Manufacturing) Inc. 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-331900 Ph.: 800-274-6848 Revision A1 04/2011 www.waltermeier.com Copyright © 2011 Walter Meier (Manufacturing), Inc.
-
Page 2: Warranty And Service
Walter Meier is consistently adding new products to the line. For complete, up-to-date product information, check with your local Walter Meier distributor, or visit waltermeier.com. WARRANTY JET products carry a limited warranty which varies in duration based upon the product (MW = Metalworking, WW = Woodworking). WHAT IS COVERED? This warranty covers any defects in workmanship or materials subject to the exceptions stated below. -
Page 3: Table Of Contents
Direction of the Pipe Bender......................8 When Using for the First Time ......................8 To Bend A Pipe ..........................8 Lubrication ............................9 Troubleshooting ..........................9 Parts ..............................9 Replacement Parts ..........................9 Parts List – Models JHPB-20and JHPB-30 ..................10 Parts Breakdown – Models JHPB-20 and JHPB-30 ................. 12... -
Page 4: Warning
Warning 1. Read and understand the entire owner's manual before attempting assembly or operation. 2. Read and understand the warnings posted on the machine and in this manual. Failure to comply with all of these warnings may cause serious injury. 3. -
Page 5: Specifications
Specifications Model................. JHPB-20..........JHPB-30 Stock Number .............. 331900..........331910 Pipe Size Capacity (in.) ..........1/2 – 2..........1/2 – 3 Max. Pipe Wall Thickness (in.) ..........1/5............. 6/25 Maximum Load (Tons) ............9............20 Piston Stroke (in.) ............10-1/4..........12-5/8 Ram Diameter (in.) ............ -
Page 6: Unpacking
Swaging Block (E) Support Assembly (F) Hinge Pin (G) Upper Wing Plate (H) Lower Wing Plate (J) Handle (K) Tripod Leg (L) Tripod Pole Base (M) Model Bending JHPB-20 (2-in) JHPB-30 (3-in) Die Size 01/2" 03/4" 01" 01-1/4" 01-1/2" 02" 02-1/2"... -
Page 7: Assembly
Assembly Referring to Figure 1: 1. Screw three tripod pole bases (M) onto three tripod poles (L). 2. Screw tripod poles (M) into the tripod seat (D). For steps 3 – 13 refer to Figure 4. 3. Pull the knob (D , Fig. -
Page 8: Operation
Referring to Figure 5: Securing the Pipe Bender 1. Raise the handle (A). The JHPB-20 and JHPB-30 Hydraulic Pipe Bender 2. Raise the upper wing plate (B). can be secured to the floor with three bolts through 3. Select the suitable bending die (C) for the pipe... -
Page 9: Lubrication
Cap Screw. Normally about 820 ml of ISO VG of 22 or ISO VG of 32 hydraulic oil is recommended for model JHPB-20 Hydraulic Pipe Bender and 1700 ml for model JHPB-30. Lightly grease all moving parts if necessary. -
Page 10: Parts List - Models Jhpb-20And Jhpb-30
Parts List – Models JHPB-20and JHPB-30 Index No. Part No. Description Size 1 ....JHPB20-1....Upper Wing Plate ................1 ....JHPB30-1....Upper Wing Plate * ................1 2 ....JHPB20-2-1.....1/2” Bending Die ..........1/2" ......1 ....JHPB20-2-2.....3/4" Bending Die ..........3/4" ......1 .... - Page 11 66 .... JHPB20-66 ....Stop Bolt .................... 1 67 .... JHPB20-67 ....Knob ....................1 68 .... JHPB20-68 ....Spring ....................1 ....JHPB20-JL ....JET Logo Label (not shown) ..............1 ....JHPB20-ID ....ID Label (not shown) ................1 ....JHPB30-ID ....ID Label (not shown) *................. 1...
-
Page 12: Parts Breakdown - Models Jhpb-20 And Jhpb-30
Parts Breakdown – Models JHPB-20 and JHPB-30...
