Coolant System: Exploded View; Coolant System: Parts List - Jet J-1230R Operating Instructions And Parts Manual

4-ft. radial arm drill press

Table of Contents

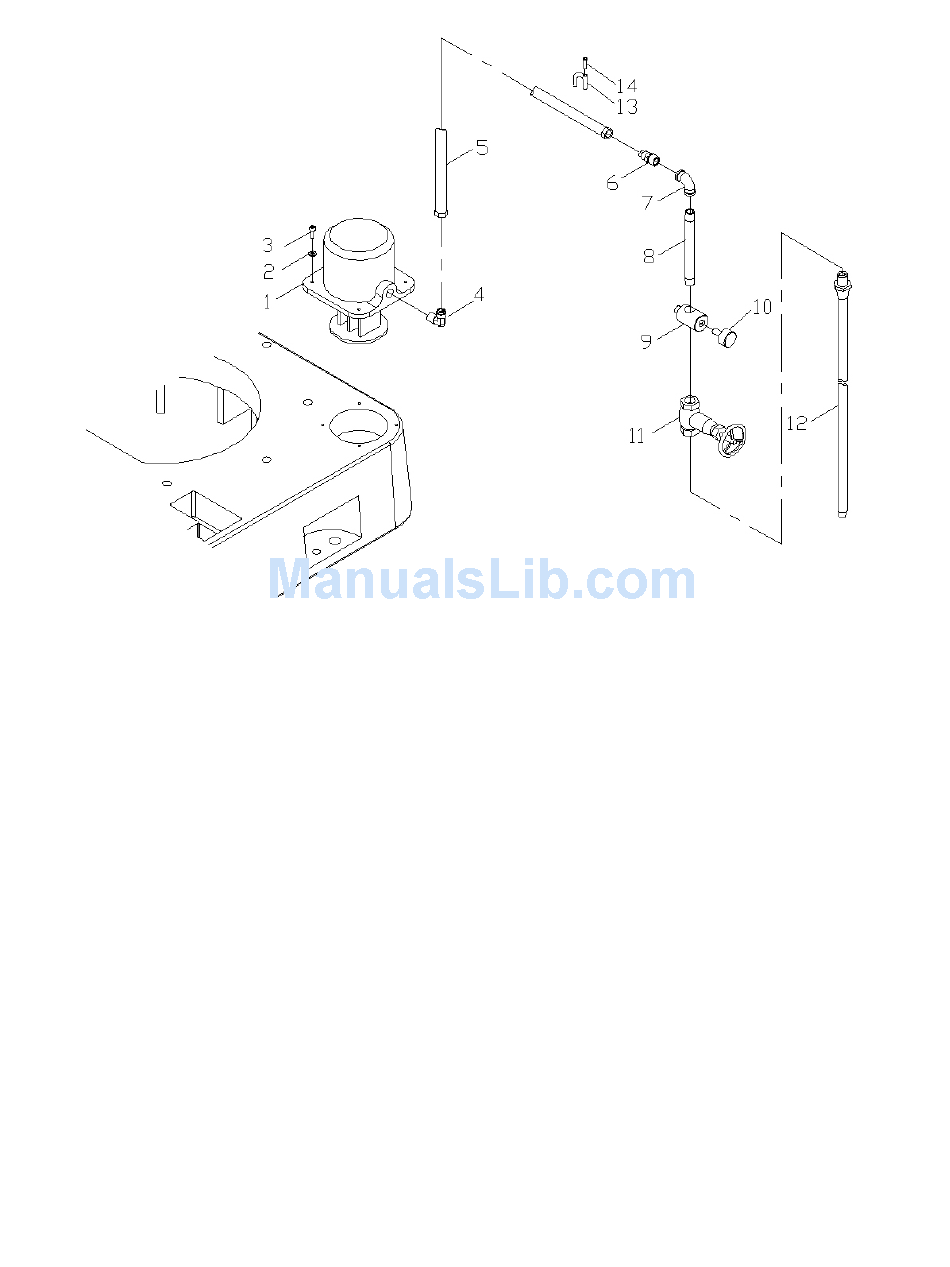

13.5.1 Coolant System: Exploded View

Index No. Part No.

Description

Size

Qty

1 .............. J-5232291 ...............Coolant Pump ............................................130L 220/440V ................. 1

2 .............. TS-1550041 ............Flat Washer................................................M6 ................................... 4

3 .............. TS-1503041 ............Socket Head Cap Screw .............................M6 x 16L .......................... 4

4 .............. 5232321 ..................90-Degree Elbow ........................................PT1/4" x PS1/4" x 90° ....... 1

5 .............. 5232271 ..................Hose ..........................................................PT3/8" x 130"L.................. 1

6 .............. 5232411 ..................Male Connector ..........................................PT3/8" x PS3/8" ................ 1

7 .............. 5232341 ..................90-Degree Elbow ........................................3/8" x 90° ......................... 1

8 .............. 5232371 ..................Tube ..........................................................3/8" x 15"L........................ 1

9 .............. 5232351 ..................Tube Sleeve ....................................................................................... 2

10 ............ 5232391 ..................Knurled Screw ............................................M10 x 25L ........................ 2

11 ............ 5232421 ..................Brass Valve ................................................3/8" .................................. 1

12 ............ 5232431 ..................Coolant Hose .............................................3/8" x 450L ....................... 1

13 ............ M1315017 ...............Tube Holder ...............................................UC-5 ................................ 2

14 ............ 5513357 ..................Phillips Pan Head Machine Screw................3/16" x 3/8"L ..................... 2
