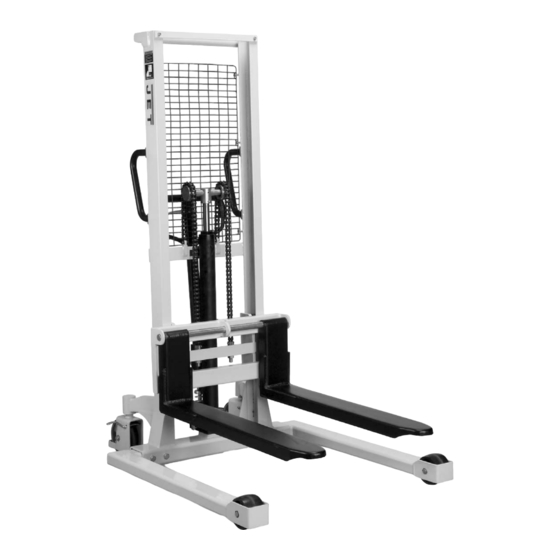

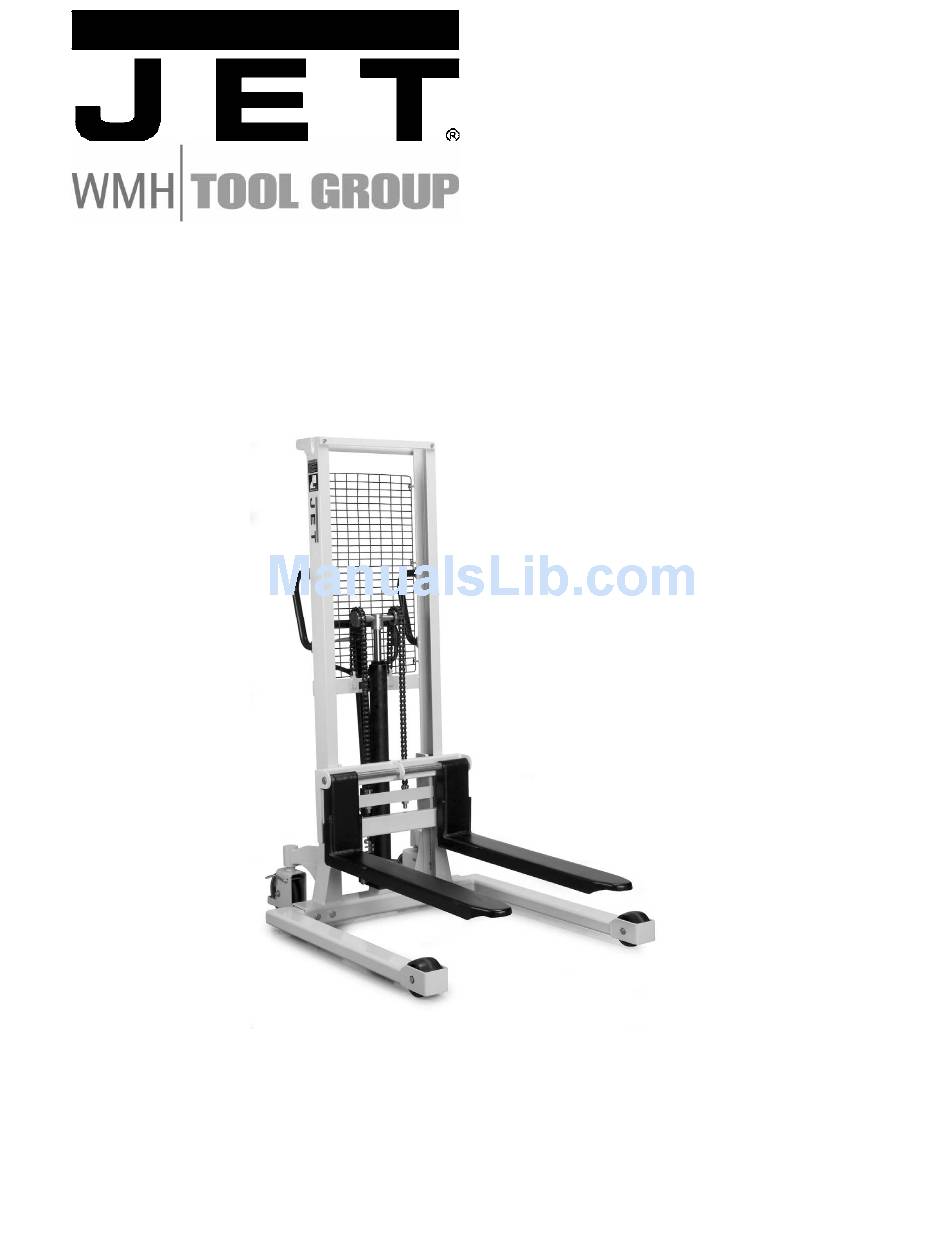

- Page 1 Operating Instructions and Parts Manual JHS Series Hydraulic Stackers Models JHS-1100 and JHS-2200 Model JHS-2200 shown WMH TOOL GROUP 2420 Vantage Drive Elgin, Illinois 60124 Part No. M-140520 Ph.: 800-274-6848 Revision B 1/07 www.wmhtoolgroup.com Copyright © WMH Tool Group...
-
Page 2: Warranty And Service
WMH Tool Group is consistently adding new products to the line. For complete, up-to-date product information, check with your local WMH Tool Group distributor, or visit jettools.com. WARRANTY JET products carry a limited warranty which varies in duration based upon the product (MW = Metalworking, WW = Woodworking). WHAT IS COVERED? This warranty covers any defects in workmanship or materials subject to the exceptions stated below. - Page 3 Read and understand all warnings and operating instructions before attempting to use the winch stacker. Do not exceed rated load or load center capacity. Excessive load can cause tipping or loss of control. Do not exceed load center capacity of stacker. Load center is measured horizontally from back of forks or platform.
-
Page 4: Table Of Contents
Introduction Congratulations on your purchase of a JET Hydraulic Stacker. Your hydraulic stacker is designed to prevent lifting injuries by providing a stable, mobile lifting device for moderate to heavy loads. It is ideal for use in confined areas or narrow aisles. -
Page 5: Stacker Safety Precautions
JHS-1100; #18 for JHS-2200). Align holes in Stacker Safety Precautions legs with holes in mast to enable legs to be equal distance from mast. Legs should slide into tube openings easily without force. 1. Read and understand manual completely before operation. 7. -
Page 6: Troubleshooting
Troubleshooting Trouble Probable Cause Remedy Fork will not lift to Hydraulic oil level is low. Fill with hydraulic oil. maximum height. Oil level is low, or oil is too viscous. Fill with oil, or change oil. Oil has impurities. Change oil. Hex nut (#71 on JHS-1100, #62 on JHS-2200) is too high, keeping the Adjust hex nut properly. -
Page 7: Hs-1100 Mast Assembly
JHS-1100 Mast Assembly... -
Page 8: Parts List: Jhs-1100 Mast Assembly
Parts List: JHS-1100 Mast Assembly Index No. Part No. Description Size 1....JHS1100-1....Fork....................... 2 1A .... 140522 ....Optional Steel Platform........28-1/4" x 41-1/2"..1 2....JHS1100-2....Adjusting Screw..................2 3....JHS1100-3....Mounting Plate ..................1 4....JHS1100-4....Dog Point Socket Set Screw.......M6 x 25 ...... 1 5.... - Page 9 84..... BB-6205ZZ ....Ball Bearing............6205ZZ....... 4 85..... JHS1100-85.....Wheel..............180 x 25 x 50....2 85A ..JHS1100-85A ..Hydraulic Pump Assembly ..............1 ....PT2748J-JET...JET Logo Label ..................2 ....JHS1100-ID .....ID & Warning Label ................1 ....JWS-FW ....Fork Warning Label ................2...
-
Page 10: Jhs-2200 Mast Assembly
JHS-2200 Mast Assembly... -
Page 11: Parts List: Jhs-2200 Mast Assembly
Parts List: JHS-2200 Mast Assembly Index No. Part No. Description Size 1....JHS2200-1....Fork....................... 2 2....140523 ....Optional Steel Platform........28-1/4" x 41-1/2"..1 3....JHS1100-2....Adjusting Screw..................2 4....JHS2200-4....Mounting Plate ..................1 5....JHS1100-4....Dog Point Socket Set Screw.......M6 x 25 ...... 1 6.... - Page 12 84..... JHS1100-63.....Shaft ..................... 1 85..... JHS1100-69.....Spring....................1 86..... JHS1100-65.....Roller ....................1 87..... JHS1100-66.....Shaft ..................... 1 ....PT2748J-JET...JET Logo Label ..................2 ....JHS2200-ID .....ID/Warning Label................... 1 ....JWS-FW ....Fork Warning Label ................2 ....JWS-LCW ....Load Center Warning Label ..............1...
-
Page 13: Jhs-1100 And Jhs-2200 Pump Assembly
JHS-1100 and JHS-2200 Pump Assembly... -
Page 14: Parts List: Jhs-1100 And Jhs-2200 Pump Assembly
Parts List: JHS-1100 and JHS-2200 Pump Assembly Index No. Part No. Description Size ....JHS1100-85A ..Hydraulic Pump Assembly (includes the following) 43..... JHS1100-43.....Spring Pin............Ø 8 x 30...... 1 86..... JHS1100-86.....Bolt......................1 87..... JHS1100-87.....Spring Cap .................... 1 88..... JHS1100-88.....Spring....................1 89..... JHS1100-89.....Dust Seal * ............20 x 28 x 6....1 90..... - Page 16 WMH Tool Group 2420 Vantage Drive Elgin, Illinois 60124 Phone: 800-274-6848 www.wmhtoolgroup.com...
